ViewSonic TeamJoin 10 m USB-C Active Optical Cable – MCB-RS-C10
The ViewSonic MCB-RS-C10 is a 10 m USB-C active optical cable that extends the link between the TeamJoin computing engine and touch console. It supports USB 3.2 Gen 1 at 5 Gbps and power delivery up to 30 W with PD 3.0. Procure.ae supplies the MCB-RS-C10 in the UAE.

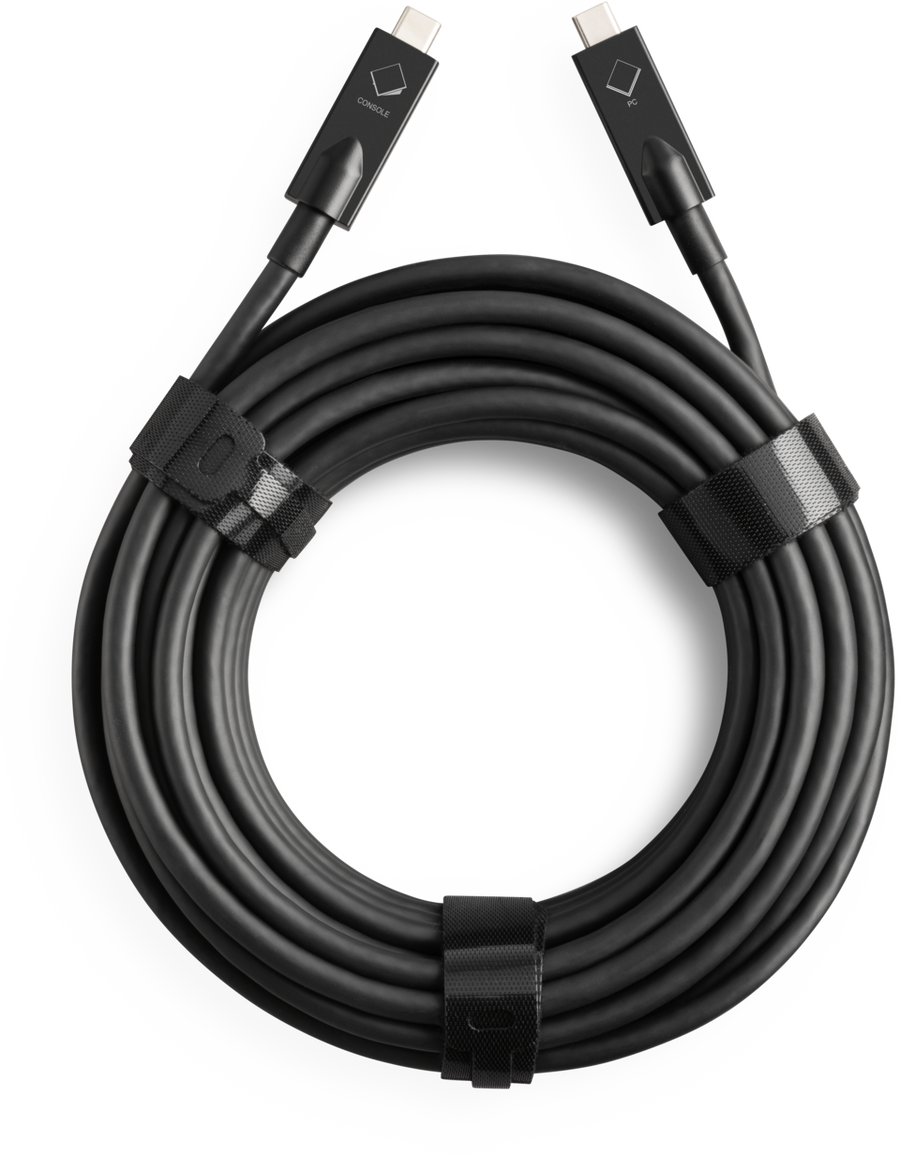

The MCB-RS-C10 is a USB Type-C active optical cable with a USB Type-C male connector at each end. It carries USB 3.2 Gen 1 data at up to 5 Gbps, USB 2.0 at 480 Mbps and DisplayPort 1.2 at up to 5.4 Gbps, so one cable can carry the display, data and touch signals between the two units. Power delivery runs at up to 30 W (20 V / 1.5 A) under USB PD 3.0. The cable is 10 m long, with a 6.2 mm outer diameter, and weighs 653 g.
Type
USB-C Active Optical Cable
Weight
653 g
- Long-distance link
- USB 3.2 Gen 1
- USB PD 3.0 power
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Long-distance link
A 10 m active optical cable for flexible placement of the computing engine and touch console.
02
USB 3.2 Gen 1
Data and video transfer up to 5 Gbps.
03
USB PD 3.0 power
Power delivery up to 30 W (20 V / 1.5 A).
04
DisplayPort 1.2
Display signal support at up to 5.4 Gbps.
05
Compact cable
6.2 mm outer diameter and 653 g.
06
Cable management
Three hook-and-loop fasteners and a PE bag are included.
Specifications
12 specificationsGeneral
CompatibilityTeamJoin TRS10 (computing engine and touch console)
Key Features10 m active optical cable, USB 3.2 Gen 1 at 5 Gbps, USB PD 3.0 up to 30 W, DisplayPort 1.2, 6.2 mm outer diameter
ModelMCB-RS-C10
TypeUSB-C Active Optical Cable
What's in the BoxCable, 3 hook-and-loop fasteners, PE bag, brown box
Performance
Bandwidth5 Gbps (USB 3.2 Gen 1); 480 Mbps (USB 2.0); 5.4 Gbps (DisplayPort 1.2)
Connectivity
Cable StandardUSB 3.2 Gen 1, USB 2.0, DisplayPort 1.2
Connector TypeUSB Type-C (male) to USB Type-C (male)
Power
Power Capacity (W)30 W (PD 3.0, 20 V / 1.5 A)
Power SourceVconn, 3.0 to 5.5 V
Physical
Length10 m
Weight653 g
Downloads
Manufacturer documents for the ViewSonic TeamJoin 10 m USB-C Active Optical Cable – MCB-RS-C10 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the maximum length this cable supports?
The cable is 10 m long. The manufacturer describes it as an active optical cable that keeps connections stable over long distances without data, video or power loss, and the manufacturer's specifications do not state a longer maximum length.
Is the MCB-RS-C10 compatible with the TRS10?
Yes. The cable is made for the TeamJoin TRS10 bundle, extending the link between the MPC310-W31-TU computing engine and the MRC1010-TN touch console. The cable is specified for USB 3.2 Gen 1 at 5 Gbps and power delivery up to 30 W.
Does the cable deliver power as well as data?
Yes. It supports USB PD 3.0 power delivery up to 30 W (20 V / 1.5 A), alongside USB 3.2 Gen 1 data at up to 5 Gbps, so one cable carries both. The cable itself is powered from the Vconn line at 3.0 to 5.5 V.
Can I buy the MCB-RS-C10 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
