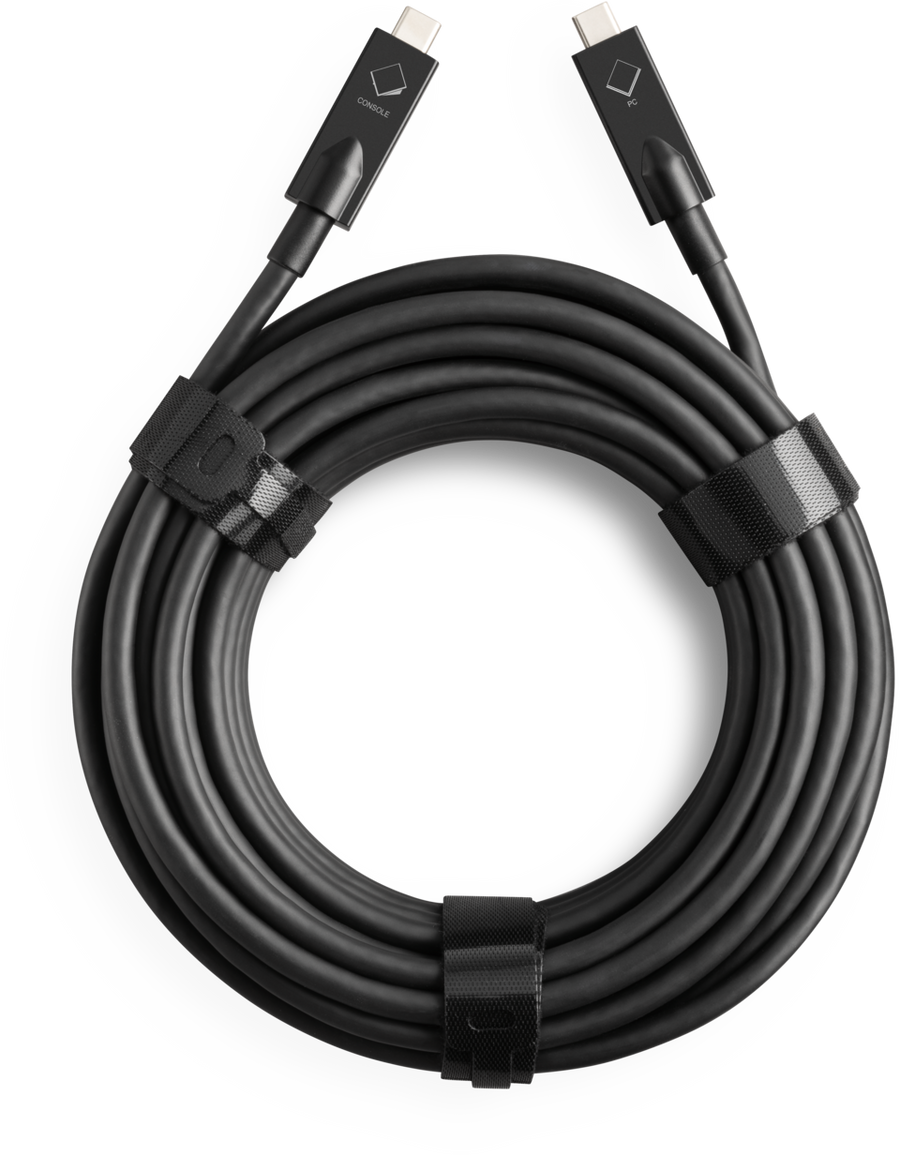

ViewSonic TeamJoin 10 m USB-C Active Optical Cable – MCB-RS-C10
The ViewSonic MCB-RS-C10 is a 10 m USB-C active optical cable that extends the link between the TeamJoin computing engine and touch console. It supports USB 3.2 Gen 1 at 5 Gbps and power delivery up to 30 W with PD 3.0. Procure.ae supplies the MCB-RS-C10 in the UAE.
The MCB-RS-C10 is a USB Type-C active optical cable with a USB Type-C male connector at each end. It carries USB 3.2 Gen 1 data at up to 5 Gbps, USB 2.0 at 480 Mbps and DisplayPort 1.2 at up to 5.4 Gbps, so one cable can carry the display, data and touch signals between the two units. Power delivery runs at up to 30 W (20 V / 1.5 A) under USB PD 3.0. The cable is 10 m long, with a 6.2 mm outer diameter, and weighs 653 g.
Key features
Specifications
| Compatibility | TeamJoin TRS10 (computing engine and touch console) |
| Key Features | 10 m active optical cable, USB 3.2 Gen 1 at 5 Gbps, USB PD 3.0 up to 30 W, DisplayPort 1.2, 6.2 mm outer diameter |
| Model | MCB-RS-C10 |
| Type | USB-C Active Optical Cable |
| What's in the Box | Cable, 3 hook-and-loop fasteners, PE bag, brown box |
| Bandwidth | 5 Gbps (USB 3.2 Gen 1); 480 Mbps (USB 2.0); 5.4 Gbps (DisplayPort 1.2) |
| Cable Standard | USB 3.2 Gen 1, USB 2.0, DisplayPort 1.2 |
| Connector Type | USB Type-C (male) to USB Type-C (male) |
| Power Capacity (W) | 30 W (PD 3.0, 20 V / 1.5 A) |
| Power Source | Vconn, 3.0 to 5.5 V |
| Length | 10 m |
| Weight | 653 g |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
