ViewSonicMeeting Room SolutionsSKU VPC25-S33-O1-1B

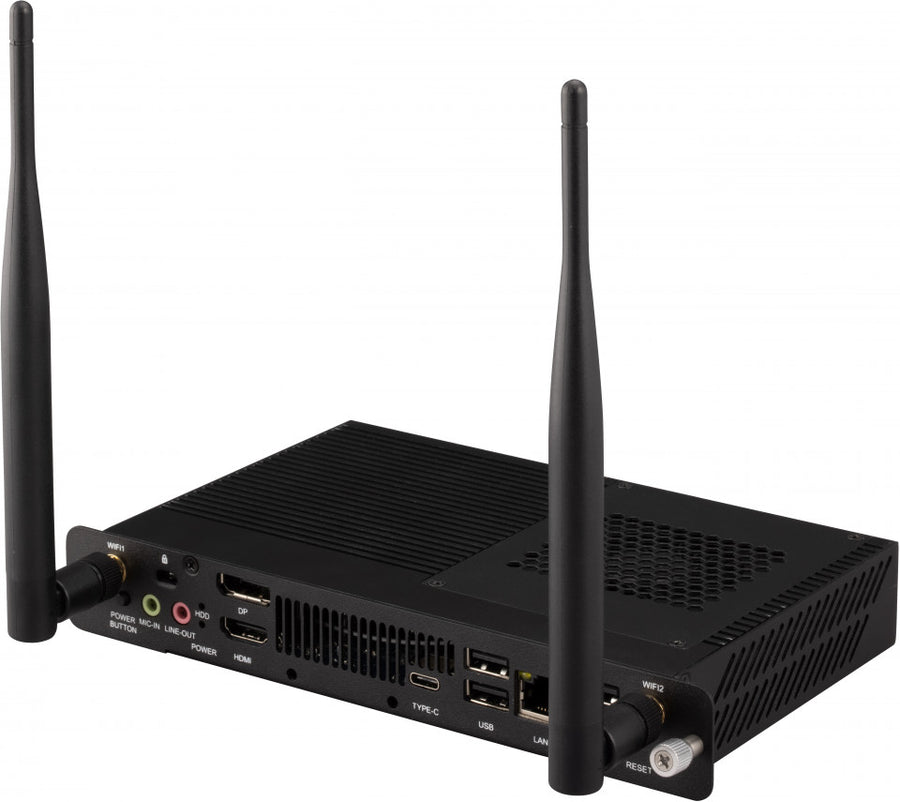

ViewSonic OPS Slot-in PC for ViewBoard – VPC25-S33-O1-1B
The ViewSonic VPC25-S33-O1-1B is a compact slot-in PC for ViewBoard interactive displays and wireless presentation displays. It has an Intel Core i5-10400T processor, 8 GB of DDR4 memory and a 256 GB NVMe SSD, with Bluetooth 5.2 and dual-band Wi-Fi. Procure.ae supplies it across the UAE.
The VPC25-S33-O1-1B is a compact slot-in PC for ViewBoard interactive displays and wireless presentation displays. It uses an Intel Core i5-10400T processor from the 10th Gen Core family, with a 2.0 GHz base clock, turbo up to 3.6 GHz and TPM 2.0 support. The module has 8 GB of DDR4 memory and a 256 GB NVMe PCIe Gen3 SSD, with an Intel UHD Graphics 630 GPU on the Intel H510 chipset.
Connectivity includes dual-band Wi-Fi, Bluetooth 5.2, a DisplayPort 1.2 output that supports 3840 x 2160 at 60 Hz, a Gigabit LAN port, USB 3.2 and USB 2.0 ports, and a USB-C data port. The module is powered from a DC input of +12 V to +19 V and is rated at 65 W typical. The manufacturer's specifications list the operating system as UEFI Shell, so the module does not ship with Windows. Procure.ae supplies it across the UAE.
Type
OPS Slot-in PC
Weight
1 kg
- Intel Core i5-10400T
- 8 GB DDR4 memory
- 256 GB NVMe SSD
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5-10400T
10th Gen processor with turbo up to 3.6 GHz.
02
8 GB DDR4 memory
Memory for display sync and classroom sessions.
03
256 GB NVMe SSD
M.2 2280 PCIe Gen3 solid-state storage.
04
4K HDMI via DisplayPort
DisplayPort 1.2 supports 3840 x 2160 at 60 Hz.
05
Bluetooth 5.2 and dual-band Wi-Fi
Wireless connectivity for presentation and sync.
06
Gigabit LAN
One GbE LAN port for wired networking.
07
USB ports
USB 3.2 × 1, USB 2.0 × 3 and a USB-C data port.
08
TPM 2.0 support
The manufacturer lists TPM 2.0 support with the processor.
Specifications
18 specificationsGeneral
Key FeaturesIntel Core i5-10400T, 8 GB DDR4, 256 GB NVMe SSD, Bluetooth 5.2, dual-band Wi-Fi, 4K HDMI via DP 1.2, GbE LAN, TPM 2.0
ModelVPC25-S33-O1-1B
TypeOPS Slot-in PC
What's in the BoxSlot-in PC module
Performance
GraphicsIntel UHD Graphics 630 with Intel H510 chipset
Operating SystemUEFI Shell
ProcessorIntel Core i5-10400T, 2.0 GHz base, up to 3.6 GHz turbo (10th Gen, TPM 2.0)
RAM8 GB DDR4
Storage256 GB SSD (NVMe PCIe Gen3)
Connectivity
BluetoothBluetooth 5.2
Input VoltageDC input +12 V to +19 V, 3.42 A
PortsUSB 3.2 × 1, USB 2.0 × 3, USB-C × 1 (data only), DisplayPort 1.2 × 1, GbE LAN × 1, Line out × 1, Microphone × 1
Wi-FiDual-band Wi-Fi
Power
Power Consumption65 W (typical)
Physical
Dimensions202 x 119 x 30 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature-5 to 45 °C
Weight1 kg
Downloads
Manufacturer documents for the ViewSonic OPS Slot-in PC for ViewBoard – VPC25-S33-O1-1B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the VPC25-S33-O1-1B designed for?
The VPC25-S33-O1-1B is a slot-in PC for ViewBoard interactive displays and wireless presentation displays, as the manufacturer describes it. Check the OPS slot on your display model before ordering, or ask Procure.ae to confirm compatibility.
Does the VPC25-S33-O1-1B come with Windows?
No. The manufacturer's specifications list the operating system as UEFI Shell, so the VPC25-S33-O1-1B does not ship with Windows. Procure.ae can confirm which Windows-based slot-in PC suits your display, and whether the bundled software matches your setup.
How much memory and storage does it have?
It has 8 GB of DDR4 memory and a 256 GB NVMe PCIe Gen3 SSD in an M.2 2280 slot. These are the values in the manufacturer's specifications for this model.
What is the power requirement?
The module takes a DC input of +12 V to +19 V at 3.42 A and is rated at 65 W typical. Confirm that the host display can supply this power input before you order.
Does it support 4K output?
The DisplayPort 1.2 output supports 3840 x 2160 at 60 Hz, according to the manufacturer's specifications. The module also has a Gigabit LAN port and USB 3.2 connectivity for peripherals.
