ViewSonicMeeting Room SolutionsSKU VPC15-WP-10

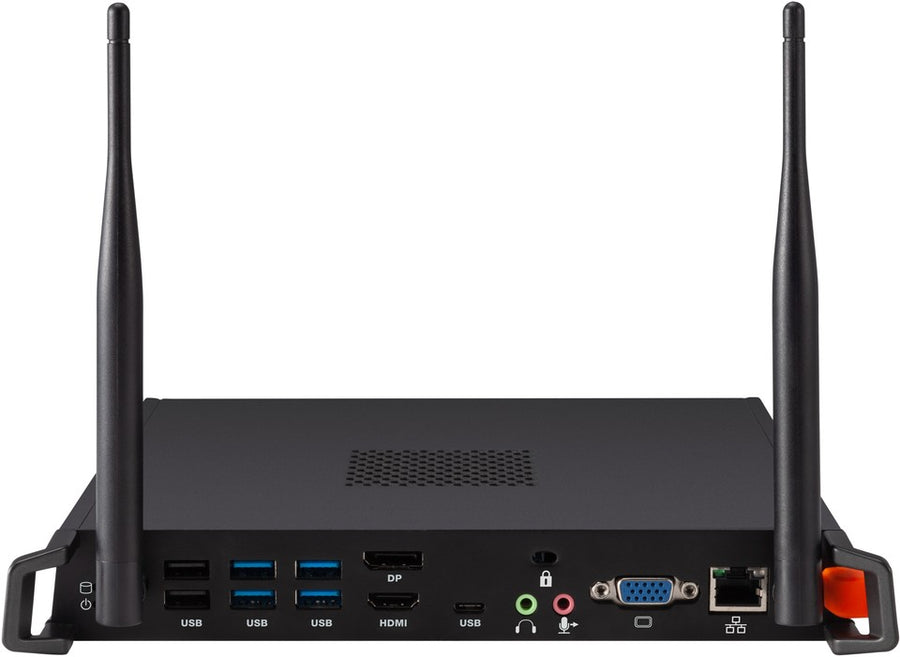

ViewSonic OPS Slot-in PC for ViewBoard Displays – VPC15-WP-10
The ViewSonic VPC15-WP-10 is a slot-in PC (OPS module) that plugs into compatible ViewBoard interactive displays. It has an Intel Core i5-8400 processor, 4 GB of DDR4 memory expandable to 32 GB, and a 500 GB SSD. Procure.ae supplies it across the UAE.
The VPC15-WP-10 slot-in PC is built for ViewBoard interactive displays. It uses an Intel Core i5-8400 processor (8th Gen Coffee Lake) with Intel UHD Graphics 630, 4 GB of DDR4 memory that can be expanded to 32 GB, and a 500 GB SSD in an M.2 2280 slot. Dual-band Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 with BLE provide wireless connectivity, and the module adds 4K DisplayPort, Gigabit LAN and USB 3.1 Type-C ports.
The module plugs into compatible ViewBoard displays and runs Free DOS, so it is a compute module rather than a Windows PC. Power draw is rated at 95 W, with an input of 100–240 V AC at 50/60 Hz. It suits classrooms and boardrooms that want a built-in computer behind the display. Procure.ae supplies the VPC15-WP-10 across the UAE, with installation and training available.
Type
OPS Slot-in PC
Weight
1.95 kg
- Intel Core i5-8400
- Expandable memory
- 500 GB SSD
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5-8400
8th Gen Coffee Lake processor with Intel UHD Graphics 630.
02
Expandable memory
4 GB DDR4, expandable up to 32 GB.
03
500 GB SSD
M.2 2280 storage with PCIe and SATA 3 interface.
04
4K DisplayPort output
DisplayPort supports up to 4096 x 2304 at 60 Hz.
05
Gigabit networking
One RJ45 port with a Realtek RTL8111 Gigabit controller.
06
Dual-band Wi-Fi
802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, with Bluetooth 4.2 and BLE.
07
USB and audio ports
USB 3.0 × 4, USB 2.0 × 2, USB 3.1 Type-C × 1, microphone and earphone out.
08
Free DOS base
Ships with Free DOS as the operating system.
Specifications
18 specificationsGeneral
Key FeaturesIntel Core i5-8400, 4 GB DDR4 expandable to 32 GB, 500 GB SSD, dual-band Wi-Fi, Bluetooth 4.2, Gigabit LAN, 4K DisplayPort
ModelVPC15-WP-10
TypeOPS Slot-in PC
What's in the BoxVPC15-WP, ViewSonic Wizard CD, Quick Start Guide
Performance
GraphicsIntel UHD Graphics 630, up to 4096 x 2304 at 60 Hz
Operating SystemFree DOS
ProcessorIntel Core i5-8400 (8th Gen Coffee Lake)
RAM4 GB (up to 32 GB)
Storage500 GB SSD
Connectivity
BluetoothBluetooth 4.2 (BLE)
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 3.0 × 4, USB 2.0 × 2, USB 3.1 Type-C × 1, DisplayPort × 1, RJ45 Gigabit LAN × 1, VGA × 1, Microphone × 1, Earphone out × 1
Wi-Fi802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
Power
Power Consumption95 W
Physical
Dimensions246.2 x 265.4 x 32.2 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature-5 to 45 °C
Weight1.95 kg
Downloads
Manufacturer documents for the ViewSonic OPS Slot-in PC for ViewBoard Displays – VPC15-WP-10 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What displays is the VPC15-WP-10 compatible with?
The VPC15-WP-10 is an OPS slot-in PC designed to plug into compatible ViewBoard interactive displays. Check the display's OPS slot specification before ordering, or ask Procure.ae to confirm compatibility with your model.
Does the VPC15-WP-10 come with Windows?
No. The manufacturer's specifications state that the VPC15-WP-10 runs Free DOS. For a Windows 10 Pro module, the manufacturer lists the VPC15-WP-3 separately, which also includes bundled myViewBoard and vCast software.
How much memory and storage does it have?
It has 4 GB of DDR4 memory that can be expanded to 32 GB, and a 500 GB SSD in an M.2 2280 slot. These are the values listed in the manufacturer's specifications for this model, so check the configuration before ordering.
Does it support 4K output?
Yes. The DisplayPort output supports up to 4096 x 2304 at 60 Hz, according to the manufacturer's specifications. The module also includes a VGA port for connecting to older projectors and monitors that lack DisplayPort.
What is the power consumption?
The module is rated at 95 W and accepts 100–240 V AC at 50/60 Hz, so it runs on standard mains supply. Its operating temperature range is -5 to 45 °C and its humidity range is 10% to 90% RH, non-condensing.
