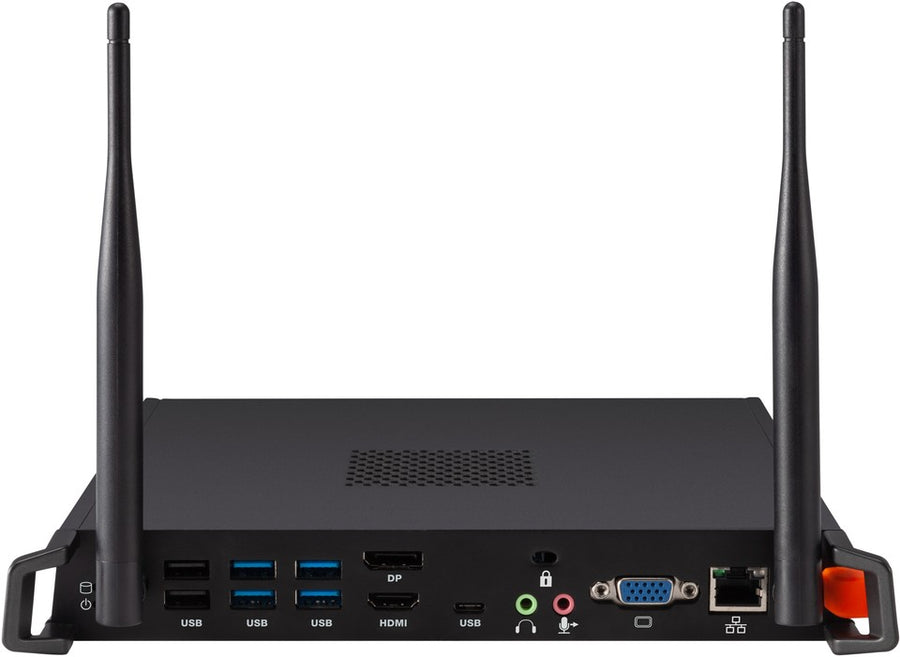

ViewSonic OPS Slot-in PC for ViewBoard Displays – VPC15-WP-10

ViewSonic OPS Slot-in PC for ViewBoard Displays – VPC15-WP-10

The ViewSonic VPC15-WP-10 is a slot-in PC (OPS module) that plugs into compatible ViewBoard interactive displays. It has an Intel Core i5-8400 processor, 4 GB of DDR4 memory expandable to 32 GB, and a 500 GB SSD. Procure.ae supplies it across the UAE.

The VPC15-WP-10 slot-in PC is built for ViewBoard interactive displays. It uses an Intel Core i5-8400 processor (8th Gen Coffee Lake) with Intel UHD Graphics 630, 4 GB of DDR4 memory that can be expanded to 32 GB, and a 500 GB SSD in an M.2 2280 slot. Dual-band Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 with BLE provide wireless connectivity, and the module adds 4K DisplayPort, Gigabit LAN and USB 3.1 Type-C ports.

The module plugs into compatible ViewBoard displays and runs Free DOS, so it is a compute module rather than a Windows PC. Power draw is rated at 95 W, with an input of 100–240 V AC at 50/60 Hz. It suits classrooms and boardrooms that want a built-in computer behind the display. Procure.ae supplies the VPC15-WP-10 across the UAE, with installation and training available.

Type
OPS Slot-in PC
Weight
1.95 kg

Key features

01
Intel Core i5-8400
8th Gen Coffee Lake processor with Intel UHD Graphics 630.
02
Expandable memory
4 GB DDR4, expandable up to 32 GB.
03
500 GB SSD
M.2 2280 storage with PCIe and SATA 3 interface.
04
4K DisplayPort output
DisplayPort supports up to 4096 x 2304 at 60 Hz.
05
Gigabit networking
One RJ45 port with a Realtek RTL8111 Gigabit controller.
06
Dual-band Wi-Fi
802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, with Bluetooth 4.2 and BLE.
07
USB and audio ports
USB 3.0 × 4, USB 2.0 × 2, USB 3.1 Type-C × 1, microphone and earphone out.
08
Free DOS base
Ships with Free DOS as the operating system.

Specifications

General
Key FeaturesIntel Core i5-8400, 4 GB DDR4 expandable to 32 GB, 500 GB SSD, dual-band Wi-Fi, Bluetooth 4.2, Gigabit LAN, 4K DisplayPort
ModelVPC15-WP-10
TypeOPS Slot-in PC
What's in the BoxVPC15-WP, ViewSonic Wizard CD, Quick Start Guide
Performance
GraphicsIntel UHD Graphics 630, up to 4096 x 2304 at 60 Hz
Operating SystemFree DOS
ProcessorIntel Core i5-8400 (8th Gen Coffee Lake)
RAM4 GB (up to 32 GB)
Storage500 GB SSD
Connectivity
BluetoothBluetooth 4.2 (BLE)
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 3.0 × 4, USB 2.0 × 2, USB 3.1 Type-C × 1, DisplayPort × 1, RJ45 Gigabit LAN × 1, VGA × 1, Microphone × 1, Earphone out × 1
Wi-Fi802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
Power
Power Consumption95 W
Physical
Dimensions246.2 x 265.4 x 32.2 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature-5 to 45 °C
Weight1.95 kg
