ViewSonicMeeting Room SolutionsSKU VB-WMK-004

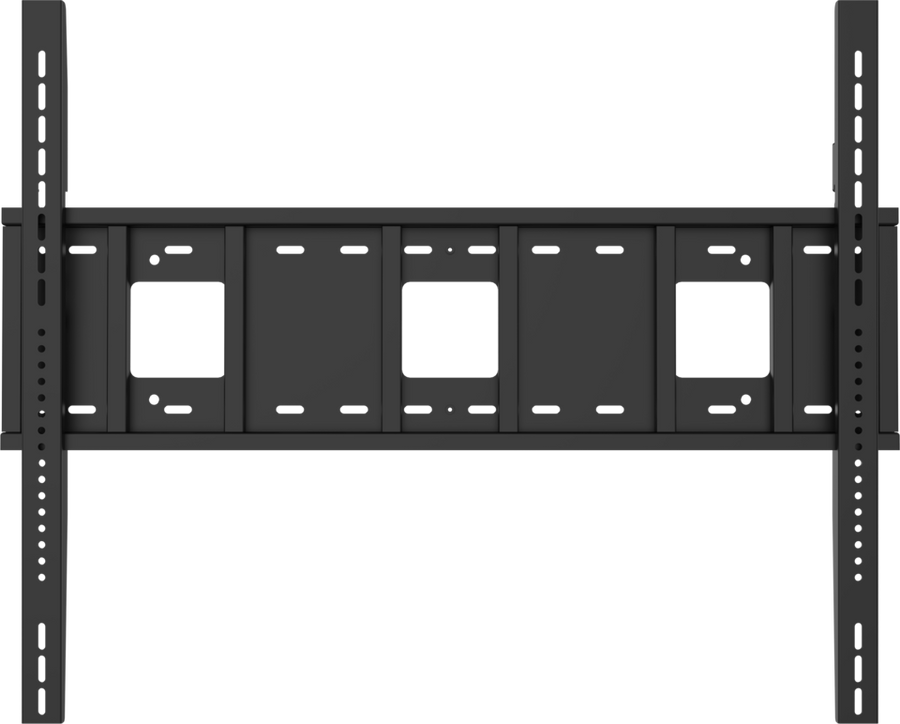

ViewSonic Fixed Wall Mount for ViewBoard and Presentation Displays – VB-WMK-004
The ViewSonic VB-WMK-004 is a fixed wall mount for ViewBoard and presentation displays from 75 to 110 inches. It is rated for up to 360 kg and supports mounting patterns up to 1000 x 800 mm. Procure.ae, an authorised ViewSonic reseller, supplies it across the UAE.
The VB-WMK-004 is a fixed wall mount for displays from 75 to 110 inches. It supports a load of up to 360 kg and mounting patterns up to 1000 x 800 mm. A secure locking screw holds the display in place, and the durable coated finish suits permanent installations in large rooms. Its 43.5 mm depth keeps the display close to the wall.
Compared with the VB-WMK-003, the VB-WMK-004 is designed for larger 75-inch to 110-inch displays and carries a higher load, 360 kg against 150 kg. It suits large auditoriums, boardrooms and presentation spaces with fixed displays. Procure.ae supplies the mount across the UAE, with delivery and installation for businesses, schools and government.
Lock Type
Secure locking screw
Type
Fixed Wall Mount
Weight
13.5 kg
- Large panel range
- High load rating
- Pattern support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large panel range
Fits 75-inch to 110-inch displays.
02
High load rating
Supports up to 360 kg.
03
Pattern support
Supports mounting patterns up to 1000 x 800 mm.
04
Secure locking
A secure locking screw holds the display in place.
05
Coated finish
Durable coated finish.
Specifications
13 specificationsGeneral
Key FeaturesFixed wall mounting, Secure locking screw, Up to 360 kg load, 75 to 110 inch panels, Mounting pattern up to 1000 x 800 mm, Durable coated finish
ModelVB-WMK-004
TypeFixed Wall Mount
Display
Supported Screen Sizes75 inch to 110 inch
Physical
Dimensions1110 x 885.8 x 43.5 mm (W x H x D)
FinishDurable coated finish
Load Capacity360 kg max.
Lock TypeSecure locking screw
MountingFixed wall mount
Shipping Dimensions1195 x 340 x 150 mm
Shipping Weight14.7 kg
VESA MountUp to 1000 x 800 mm
Weight13.5 kg
Downloads
Manufacturer documents for the ViewSonic Fixed Wall Mount for ViewBoard and Presentation Displays – VB-WMK-004 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the VB-WMK-004 fit a 75-inch display?
Yes. The manufacturer states the mount is designed for 75-inch to 110-inch ViewBoard and presentation displays, so a 75-inch display is at the lower end of that range. Check the display's weight against the 360 kg rating, and confirm the wall construction can carry it.
How much weight can the VB-WMK-004 carry?
The manufacturer states a maximum support weight of 360 kg for the VB-WMK-004. Confirm the display's weight, including any attached accessories, before ordering the mount. Bulk, project and tender pricing is available for multi-unit orders.
What mounting pattern does the VB-WMK-004 support?
The VB-WMK-004 supports mounting patterns up to 1000 x 800 mm. The manufacturer's specifications do not state the hole layout, so confirm the display's rear pattern fits within that size before ordering.
Can I buy the VB-WMK-004 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
