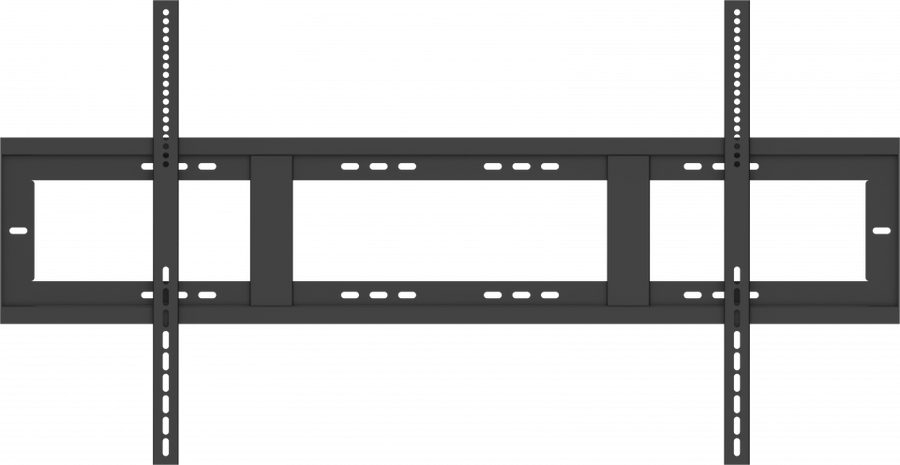

ViewSonic VB-WMK-003 fixed wall mount for 55 to 105-inch displaysViewSonic

ViewSonic Fixed Wall Mount for ViewBoard and Presentation Displays – VB-WMK-003

The ViewSonic VB-WMK-003 is a fixed wall mount for ViewBoard and presentation displays from 55 to 105 inches. It is rated for up to 150 kg and supports mounting patterns up to 1000 x 600 mm. Procure.ae, an authorised ViewSonic reseller, supplies it across the UAE.

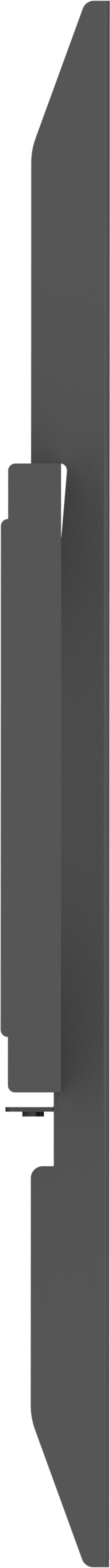

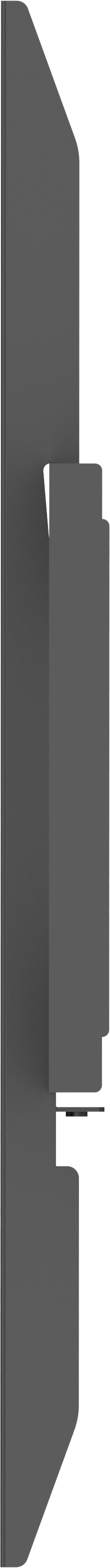

The VB-WMK-003 is a fixed wall mount for displays from 55 to 105 inches. It is rated for up to 150 kg and supports mounting patterns up to 1000 x 600 mm. A secure locking screw holds the display in place, and the durable coated finish suits permanent installations in classrooms and meeting rooms. Its 45 mm depth keeps the display close to the wall.

Compared with the VB-WMK-001, the VB-WMK-003 covers larger displays and a higher load rating, 105 inches and 150 kg against 84 inches and 125 kg. It suits fixed display positions in lecture halls, boardrooms and presentation spaces. Procure.ae supplies the mount across the UAE, with delivery and installation for businesses, schools and government.

Lock Type
Secure locking screw
Type
Fixed Wall Mount
Weight
6.8 kg
  • Fixed mounting
  • Load rating
  • Panel range
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Fixed mounting
Holds the display in a permanent wall position.
02
Load rating
Supports up to 150 kg.
03
Panel range
Fits 55-inch to 105-inch displays.
04
Secure locking
A secure locking screw holds the display in place.
05
Pattern support
Supports mounting patterns up to 1000 x 600 mm.

Specifications

13 specifications
General
Key FeaturesFixed wall mounting, Secure locking screw, Up to 150 kg load, 55 to 105 inch panels, Mounting pattern up to 1000 x 600 mm, Durable coated finish
ModelVB-WMK-003
TypeFixed Wall Mount
Display
Supported Screen Sizes55 inch to 105 inch
Physical
Dimensions1260 x 650 x 45 mm (W x H x D)
FinishDurable coated finish
Load Capacity150 kg max.
Lock TypeSecure locking screw
MountingFixed wall mount
Shipping Dimensions1340 x 358 x 60 mm
Shipping Weight7.6 kg
VESA MountUp to 1000 x 600 mm
Weight6.8 kg

Downloads

Manufacturer documents for the ViewSonic Fixed Wall Mount for ViewBoard and Presentation Displays – VB-WMK-003 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the VB-WMK-003 fit an 86-inch display?
Yes. The manufacturer states the mount is designed for 55-inch to 105-inch ViewBoard and presentation displays, so an 86-inch display is within that range. Check the display's weight against the 150 kg rating before fitting, and confirm the wall construction can carry it.
What is the maximum load for the VB-WMK-003?
The VB-WMK-003 is rated for up to 150 kg, according to the manufacturer. Confirm the display's weight, including any attached accessories, before ordering the mount. Bulk, project and tender pricing is available for multi-unit orders.
What mounting pattern does the VB-WMK-003 support?
The VB-WMK-003 supports mounting patterns up to 1000 x 600 mm. The manufacturer's specifications do not state the hole layout, so confirm the display's rear pattern fits within that size before ordering.
