ViewSonicDigital SignageSKU CDE9831-1C
ViewSonic CDE31 Series 98-inch 4K Digital Signage Display – CDE9831-1C
The ViewSonic CDE9831-1C is a 98-inch 4K UHD commercial display for large corporate, retail, education and healthcare spaces. It has 500 nits of brightness, Android 14 with 8 GB RAM, and an OPS slot for PC modules. Procure.ae supplies the CDE9831-1C across the UAE, with quotes, delivery and installation.
The CDE9831-1C uses a 3840 x 2160 (4K UHD) TFT LCD panel with DLED backlight, 500 nits brightness and an 8 ms response time. Its 1,200:1 typical contrast ratio rises to 5,000:1 with DCR enabled, and viewing angles are 178 degrees horizontally and vertically. A quad-core processor with 8 GB RAM and 32 GB storage runs Android 14, which can be upgraded to Android 16. Two 16 W built-in speakers and 3.5 mm audio in and out support presentations and announcements in large rooms.
The 98-inch format suits large meeting rooms, lobbies, retail walls and education spaces, in landscape or portrait orientation. The display mounts on an 800 x 400 mm VESA pattern, which differs from the 600 x 400 mm pattern of the 86-inch CDE8631-1C. ViewSonic Manager provides centralised remote control, and the display integrates with leading Pro AV control systems through its RS-232, SPDIF and RJ45 ports.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Large 98-inch panel
- Android 14 platform
- OPS slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large 98-inch panel
3840 x 2160 resolution in a 98-inch format for large rooms and walls.
02
Android 14 platform
Quad-core processor with 8 GB RAM and 32 GB storage, upgradeable to Android 16.
03
OPS slot
Built-in OPS slot for an OPS computer module.
04
Built-in speakers
Two 16 W speakers with 3.5 mm audio in and out.
05
Wireless presentation
AirSync wireless presentation with a Wi-Fi slot.
06
Remote management
ViewSonic Manager for centralised control and static IP configuration.
07
Pro AV integration
RS-232, SPDIF and two RJ45 ports for control systems and AV routing.
08
Landscape and portrait
Operates in both orientations on an 800 x 400 mm VESA pattern.
Specifications
30 specificationsGeneral
Key FeaturesAndroid 14, OPS slot for PC modules, AirSync wireless presentation, ViewSonic Manager remote management, USB media playback, landscape and portrait, 4K UHD, 24/7 operation
ModelCDE9831-1C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size18 mm
Brightness500 nits
Contrast Ratio1,200:1 (typical; 5,000:1 with DCR)
Display TypeCommercial LCD display

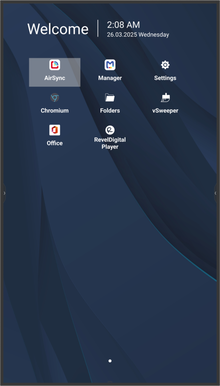

OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size98 inch
Viewing Angle178° horizontal / 178° vertical
Performance

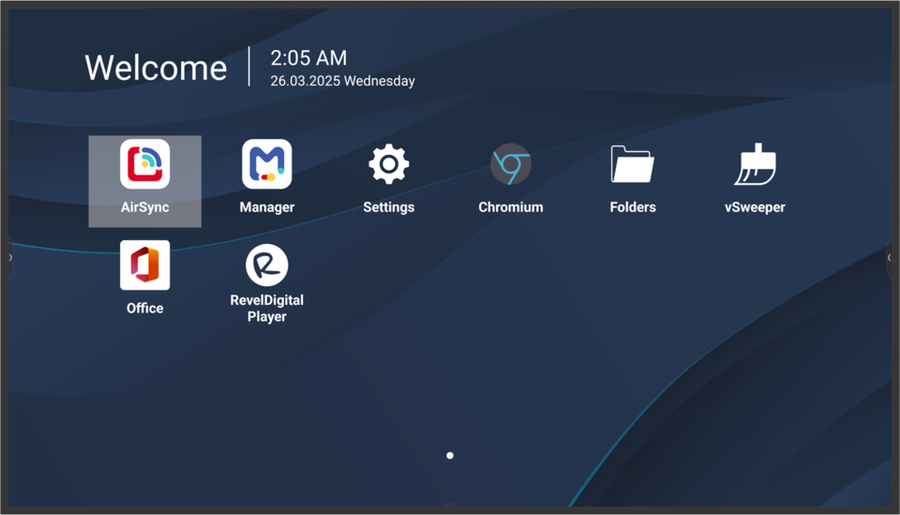

Operating SystemAndroid 14 (upgradeable to Android 16)
ProcessorQuad-core ARM Cortex-A73
RAM8 GB
Storage32 GB
Audio
Audio2 × 16 W built-in speakers, 3.5 mm audio in/out
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
PortsOPS slot × 1, Wi-Fi slot × 1, RS-232 × 1, SPDIF × 1, RJ45 × 2, USB 2.0 × 1, USB 3.2 Gen 1 × 1, USB-C × 1 (DisplayPort 1.2)
Power
Power Consumption130.3 W
Physical
Dimensions2198.9 x 1254.6 x 68.6 mm
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight53.9 kg
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the ViewSonic CDE31 Series 98-inch 4K Digital Signage Display – CDE9831-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the CDE9831-1C suitable for large meeting rooms?
Yes. The 98-inch panel gives a large 4K image for big rooms and walls. It has 500 nits of typical brightness and a 178-degree viewing angle, so content stays visible from wide seating positions. Confirm room size and viewing distance with your AV designer.
Does the CDE9831-1C support portrait mounting?
Yes. The display supports both landscape and portrait orientation. Portrait mounting suits vertical menus and wayfinding, but the mount and wall must carry the panel weight of 53.9 kg net.
What operating system does the CDE9831-1C use?
It runs Android 14 on a quad-core ARM Cortex-A73 processor with 8 GB RAM and 32 GB storage. The platform is upgradeable to Android 16. ViewSonic Manager supports remote management of multiple displays.
What VESA mount does the CDE9831-1C need?
It uses an 800 x 400 mm VESA pattern. The panel measures 2198.9 x 1254.6 x 68.6 mm and weighs 53.9 kg net. Use a mount rated for this size and weight, and check the wall structure before installation.
Does the CDE9831-1C integrate with Pro AV control systems?
Yes. It integrates with leading Pro AV control systems through its RS-232 port, SPDIF output and RJ45 ports. The RJ45 ports support 10/100M for USB-C and 1000M for OPS, which supports networked control.
