ViewSonic CDE Series 55-inch 4K Digital Signage Display – CDE5514-2C
The ViewSonic CDE5514-2C is a 55-inch 4K UHD commercial display for digital signage, offices, retail and transit environments. It delivers 500 nits brightness, runs Android 14 with Pro AV integration, and supports landscape or portrait use. Procure.ae supplies the ViewSonic CDE5514-2C in the UAE.

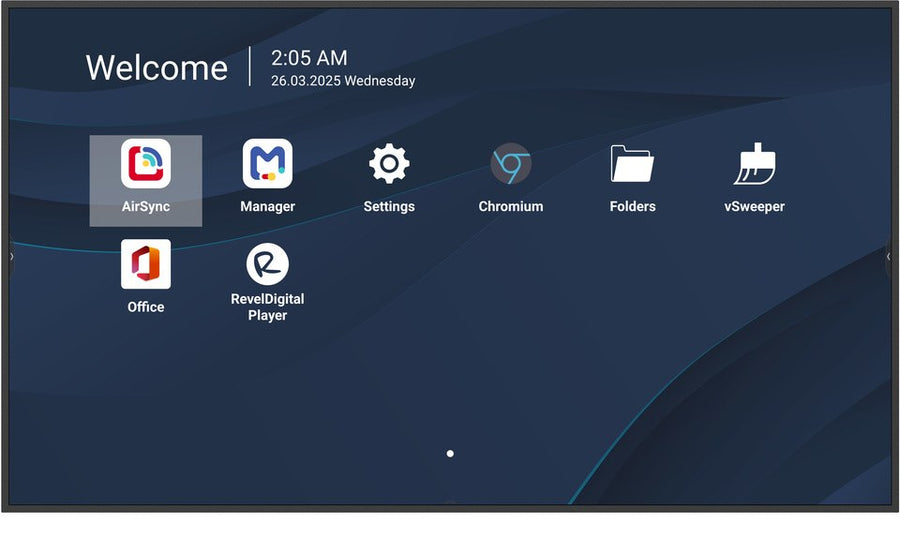

The CDE5514-2C uses a 3840 x 2160 native panel with 1,200:1 typical contrast, rising to 2,000:1 with DCR enabled. Its 8 ms response time and 178-degree horizontal and vertical viewing angles are part of the manufacturer's specifications. An anti-glare coating with 3H hardness and 25% haze covers the screen. A quad-core ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage runs Android 14, and auto signal failover keeps USB media playing if the main source is lost.
The manufacturer states that the display is designed for IT and AV professionals and integrates with leading Pro AV control systems and ViewSonic Manager. Its RS-232 port, RJ45 connection and USB-C input with DisplayPort 1.2 support AV and IT setups. The 400 x 400 mm VESA pattern supports wall mounting, and the set measures 1233 x 703.5 x 62 mm, with a net weight of 12.95 kg.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500-nit brightness

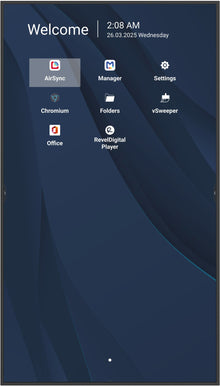

- Landscape and portrait
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on a 55-inch 16:9 LCD panel with DLED backlight.
02
500-nit brightness
500 nits typical brightness with 1,200:1 typical contrast and 2,000:1 with DCR enabled.
03
Landscape and portrait
Supports both landscape and portrait orientation.
04
Android 14 platform
Quad-core ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage.
05
USB media failover
Continuous USB media playback with auto signal failover.
06
Remote management
ViewSonic Manager and ViewSonic Launcher for deployment and remote control.
07
Anti-glare surface
Anti-glare coating with 3H hardness and 25% haze.
08
AirSync presentation
AirSync wireless presentation and a WiFi slot for network connection.
Specifications
30 specificationsGeneral
Key FeaturesAuto signal failover for USB media, ViewSonic Launcher, ViewSonic Manager remote control, AirSync wireless presentation, Landscape and portrait, Pro AV control integration
ModelCDE5514-2C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size9.9 mm (all sides)
Brightness500 nits
Contrast Ratio1,200:1 (typical); 2,000:1 (DCR)
OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core ARM Cortex-A73
RAM4 GB
Storage32 GB
Connectivity
EthernetRJ45 × 1 (10/100M, shared via USB-C)
Input Voltage100–240 V AC ±10%
PortsRS-232 × 1, SPDIF × 1, RJ45 × 1, USB 2.0 × 2, USB-C × 1
Serial PortRS-232 × 1
USB-C PortsUSB-C × 1 (DP 1.2, USB 2.0, 15 W PD, Ethernet sharing)
Wi-FiWiFi slot × 1
Power
Power Consumption66.35 W
Physical

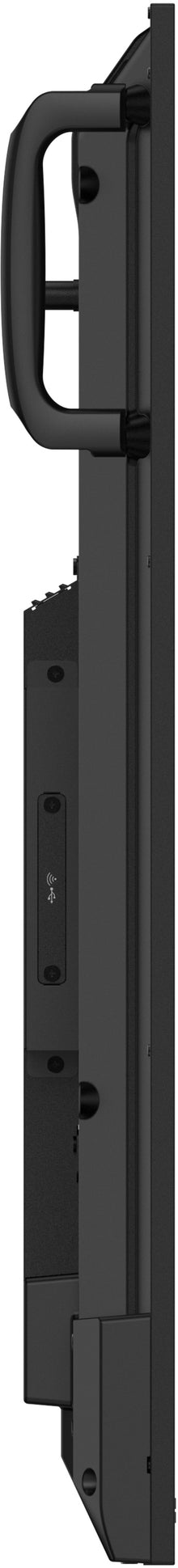

Dimensions1233 x 703.5 x 62 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight12.95 kg
Downloads
Manufacturer documents for the ViewSonic CDE Series 55-inch 4K Digital Signage Display – CDE5514-2C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewSonic CDE5514-2C built for 24/7 digital signage?
Yes. The manufacturer describes the CDE5514-2C as a commercial-grade display built for 24/7 operation in offices, retail spaces and transit hubs. It has 500 nits brightness, landscape and portrait support, and Android 14 for content playback. ViewSonic Manager covers remote deployment.
What wall mount does the CDE5514-2C use?
It uses a 400 x 400 mm VESA wall mount pattern. The display weighs 12.95 kg net, so the mount and wall structure should be rated for that load. Procure.ae arranges delivery and installation across the UAE.
What connections does the CDE5514-2C offer?
It has one RS-232 port, one RJ45 port for 10/100M Ethernet on USB Type-C, two USB 2.0 Type-A ports and one USB-C port with DisplayPort 1.2 and 15 W power delivery. The manufacturer's specifications do not list an HDMI input, so confirm your source connection before ordering.
Does the CDE5514-2C work with Pro AV control systems?
Yes. The manufacturer states that it integrates seamlessly with leading Pro AV control systems and ViewSonic Manager for deployment and remote management. It also has an RS-232 port for serial control, which suits AV and IT setups that already use control systems.
