ViewSonicMeeting Room SolutionsSKU VB-SEN-001

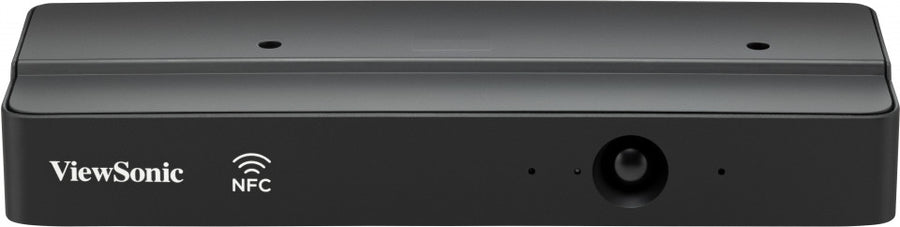

ViewSonic 6-in-1 Smart Sensor for ViewBoard – VB-SEN-001
The ViewSonic VB-SEN-001 is a 6-in-1 smart sensor module for ViewBoard IFP50-5 Series interactive displays. It measures CO2, PM2.5, temperature and humidity, and adds PIR wake-up and NFC access control. It suits smart classrooms that need air quality monitoring and restricted access. Procure.ae supplies the VB-SEN-001 across the UAE.
The VB-SEN-001 monitors classroom conditions with CO2 and PM2.5 sensing, plus temperature and humidity. The manufacturer lists a CO2 detection range of 400-29000ppm, a 0-1000μg/m3 range for the particulate sensor and a response time under 2 seconds. Its PIR detector wakes the ViewBoard when people enter the room, and an NFC reader restricts access to authorised personnel. The module is powered over USB from the ViewBoard at 5 V / 0.5 A.
Type
Smart Sensor Module
Weight
0.183 kg
- 6-in-1 sensing
- CO2 and PM2.5 monitoring
- PIR wake-up
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
6-in-1 sensing
CO2, PM2.5, temperature, humidity, PIR presence and NFC access in one module
02
CO2 and PM2.5 monitoring
CO2 range of 400-29000ppm with particulate sensing
03
PIR wake-up
wakes the ViewBoard automatically when people are in the room
04
NFC access control
restricts the ViewBoard to authorised personnel
05
USB power
powered by the ViewBoard over USB, 5 V / 0.5 A, with no extra adapter
Specifications
9 specificationsGeneral
CompatibilityViewBoard IFP50-5 Series
Key FeaturesCO2 and PM2.5 monitoring, Temperature and humidity sensing, PIR presence wake-up, NFC access control, Powered via USB from ViewBoard
ModelVB-SEN-001
TypeSmart Sensor Module
Power
Power SourceUSB, 5 V / 0.5 A
Physical
Dimensions206 x 69 x 31.7 mm
Operating Humidity10% to 90% RH non-condensing
Operating Temperature0 to 40 °C
Weight0.183 kg
Downloads
Manufacturer documents for the ViewSonic 6-in-1 Smart Sensor for ViewBoard – VB-SEN-001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the VB-SEN-001 compatible with the ViewBoard IFP50-5 Series?
Yes. The manufacturer designs the VB-SEN-001 as an accessory module for the ViewBoard IFP50-5 Series. It connects to the ViewBoard over USB type B (2.0), so the display provides both the connection and the power.
Does the sensor need its own power supply?
No. The VB-SEN-001 draws 5 V / 0.5 A over USB from the ViewBoard, so no separate adapter is needed. The manufacturer says this keeps the learning space free of extra cables and clutter.
What does it measure, and how do the wake-up and access features work?
The module measures CO2 and PM2.5 levels, temperature and humidity. Its PIR detector wakes the ViewBoard when people are in the room, and its NFC chip reader restricts access to authorised personnel. Both features are listed by the manufacturer as built into the module.
Can I buy the VB-SEN-001 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
