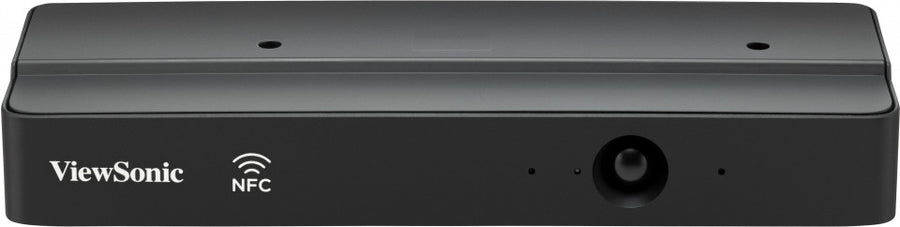

ViewSonic 6-in-1 Smart Sensor for ViewBoard – VB-SEN-001
The ViewSonic VB-SEN-001 is a 6-in-1 smart sensor module for ViewBoard IFP50-5 Series interactive displays. It measures CO2, PM2.5, temperature and humidity, and adds PIR wake-up and NFC access control. It suits smart classrooms that need air quality monitoring and restricted access. Procure.ae supplies the VB-SEN-001 across the UAE.
The VB-SEN-001 monitors classroom conditions with CO2 and PM2.5 sensing, plus temperature and humidity. The manufacturer lists a CO2 detection range of 400-29000ppm, a 0-1000μg/m3 range for the particulate sensor and a response time under 2 seconds. Its PIR detector wakes the ViewBoard when people enter the room, and an NFC reader restricts access to authorised personnel. The module is powered over USB from the ViewBoard at 5 V / 0.5 A.
Key features
Specifications
| Compatibility | ViewBoard IFP50-5 Series |
| Key Features | CO2 and PM2.5 monitoring, Temperature and humidity sensing, PIR presence wake-up, NFC access control, Powered via USB from ViewBoard |
| Model | VB-SEN-001 |
| Type | Smart Sensor Module |
| Power Source | USB, 5 V / 0.5 A |
| Dimensions | 206 x 69 x 31.7 mm |
| Operating Humidity | 10% to 90% RH non-condensing |
| Operating Temperature | 0 to 40 °C |
| Weight | 0.183 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
