SonyMeeting Room SolutionsSKU AC-UES1230MT

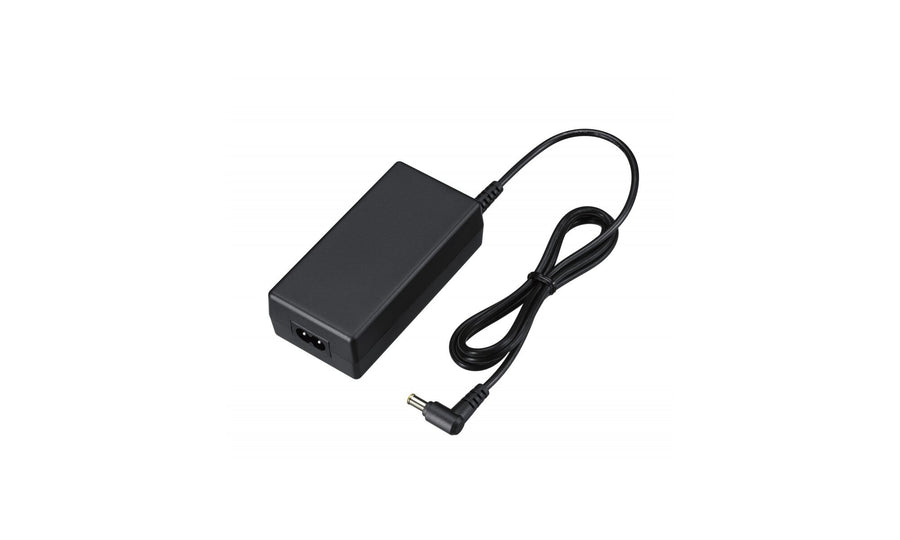

Sony Universal 12 V DC 3 A AC Adaptor – AC-UES1230MT
The Sony AC-UES1230MT is a universal AC adaptor that converts 100 to 240 V AC mains to 12 V DC at 3 A. It has a 1.0 m DC cord, weighs about 190 g, and operates from -5 to 45 °C. It suits projects that need a 12 V DC supply, and Procure.ae supplies it across the UAE.
The adaptor accepts 100 to 240 V AC at 50 or 60 Hz and delivers 12 V DC ±5% at 3 A. The manufacturer rates operation from -5 to 45 °C and storage from -20 to 60 °C. The DC power cord is 1.0 m (3.3 ft) long. The unit measures about 51.7 x 32 x 102.5 mm and weighs about 190 g without the power cord, so it is compact for its 3 A rating.
Type
Universal AC Adaptor
Weight
190 g (excluding power cord)
- Universal Mains Input
- 12 V DC Output
- Wide Temperature Range
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Universal Mains Input
accepts 100 to 240 V AC at 50 or 60 Hz.
02
12 V DC Output
delivers 12 V DC ±5% at 3 A.
03
Wide Temperature Range
operates from -5 to 45 °C and stores from -20 to 60 °C.
04
Long DC Cord
1.0 m (3.3 ft) DC power cord.
05
Compact Body
measures 51.7 x 32 x 102.5 mm and weighs about 190 g without the cord.
Specifications
10 specificationsGeneral
Key FeaturesUniversal input 100 to 240 V AC, 50/60 Hz, 12 V DC 3 A output, 1.0 m DC cord
ModelAC-UES1230MT
TypeUniversal AC Adaptor
Performance
Storage Conditions-20 to 60 °C
Connectivity
Input Voltage100 to 240 V AC, 50/60 Hz
Output Voltage12 V DC ±5%, 3 A
Physical
Dimensions51.7 x 32 x 102.5 mm (W x H x D)
Length1.0 m (3.3 ft) DC power cord
Operating Temperature-5 to 45 °C
Weight190 g (excluding power cord)
Downloads
Manufacturer documents for the Sony Universal 12 V DC 3 A AC Adaptor – AC-UES1230MT — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What voltage and current does the AC-UES1230MT output?
It outputs 12 V DC ±5% at 3 A. Before connecting it, check that your equipment needs 12 V DC and draws no more than 3 A, because the adaptor's output rating is the limit it can supply.
Does the adaptor work on different mains voltages?
Yes. The rated range is 100 to 240 V AC at 50 or 60 Hz, so the adaptor covers that full range. Confirm that your local supply falls inside 100 to 240 V AC before connecting it.
How long is the cord and how big is the adaptor?
The DC power cord is 1.0 m (3.3 ft) long. The unit measures about 51.7 x 32 x 102.5 mm and weighs about 190 g, excluding the power cord, which makes it easy to fit into a compact installation.
