SonyDigital SignageSKU FW-85BZ40P

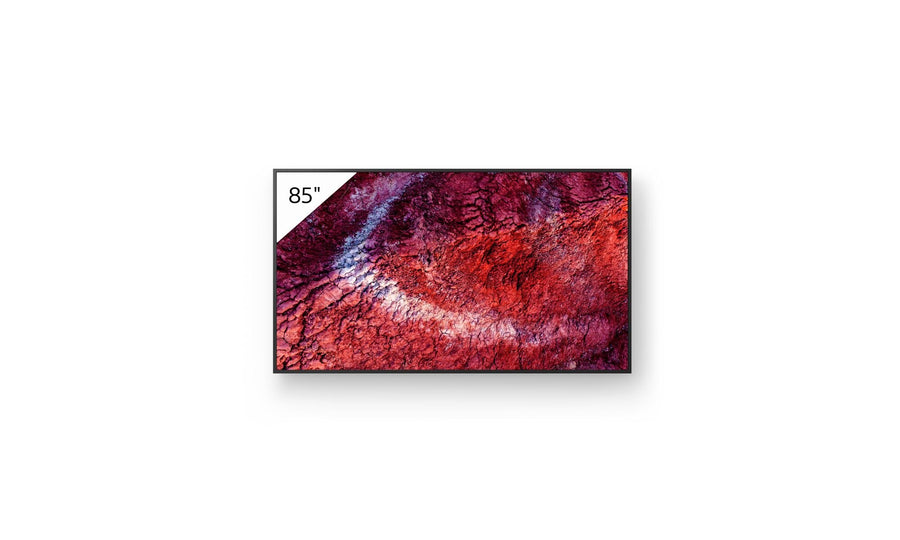

Sony Pro BRAVIA BZ40P 85-inch Digital Signage Display – FW-85BZ40P
The Sony FW-85BZ40P is an 85-inch 4K UHD professional display for bright signage environments and public spaces. It offers 700 nits brightness, a 5,500:1 contrast ratio and a Deep Black Non-Glare Premium screen with IP5X dust resistance. Procure.ae supplies the Sony FW-85BZ40P across the UAE, with quotes, delivery and installation.
The FW-85BZ40P uses a 3840 x 2160 VA panel with direct LED backlight and frame dimming, plus a 92% DCI-P3 colour gamut. Its XR Processor supports HDR10 and HLG, and the display lists a 600,000:1 dynamic contrast ratio with an 8 ms typical response time. Viewing angles are 178 degrees horizontally and vertically. The Deep Black Non-Glare Premium finish carries a 52% haze rating, and the display is rated for 24/7 operation with a 20 W audio output.
The display suits digital signage in lobbies, hospitality venues, retail spaces and public information points. It includes 32 GB on-board storage, Android OS, Apple AirPlay and integrated Wireless LAN. IP control, RS-232C and HDMI-CEC support room and AV integration, and the 400 x 400 mm VESA pattern supports wall mounting. Compared with the FW-85BZ35P, this model lists higher brightness (700 nits against 500 nits), a higher contrast ratio (5,500:1 against 4,500:1) and a higher haze rating (52% against 25%).
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- Brightness and contrast
- Non-glare screen
- Dust resistance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Brightness and contrast
700 nits brightness with a 5,500:1 contrast ratio on a VA panel.
02
Non-glare screen
Deep Black Non-Glare Premium finish with a 52% haze rating.
03
Dust resistance
IP5X rating for dust resistance.
04
4K HDR imaging
3840 x 2160 resolution with HDR10 and HLG support.
05
Colour performance
92% DCI-P3 colour gamut with an XR Processor.
06
Android and storage
Android operating system with 32 GB on-board storage and integrated Wireless LAN.
07
Casting and control
Apple AirPlay, IP control and RS-232C control with HDMI-CEC support.
08
Inputs and ports
Four HDMI inputs, two USB ports and one Ethernet port.
Specifications
26 specificationsGeneral
Key FeaturesDeep Black Non-Glare Premium (52% haze), 700 nits, IP5X dust resistance, 4K HDR (HDR10, HLG), Android OS, 32 GB storage, Apple AirPlay, IP and RS-232C control
ModelFW-85BZ40P
TypeDigital Signage Display
Display
BacklightDirect LED, frame dimming
Brightness700 nits
Color Gamut92% DCI-P3
Contrast Ratio5,500:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid
ProcessorXR Processor
Storage32 GB
Audio
Speaker Output20 W
Connectivity
HDMI Inputs4
PortsHDMI In × 4, USB × 2, Ethernet × 1
Wi-FiIntegrated wireless LAN
Power
Power Consumption299 W (rated)
Standby Power0.5 W
Physical
Dimensions1910 x 1091 x 73 mm, approx. (without stand)
Duty Cycle24/7
VESA Mount400 x 400 mm
WeightApprox. 41.5 kg (without stand)
Compliance
IP RatingIP5X (dust resistant)
Downloads
Manufacturer documents for the Sony Pro BRAVIA BZ40P 85-inch Digital Signage Display – FW-85BZ40P — datasheets, manuals, drawings and certificates.
- Datasheet – FW-85BZ40P
- Brochure – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- Safety 50720101M
- Dismantling information for use by professional recyclers(English only) 98889364M
- Safety 50720081M
Questions
Can’t find your answer? Ask on WhatsApp
Is the FW-85BZ40P suitable for brightly lit rooms?
Yes. Its 700 nits brightness and Deep Black Non-Glare Premium screen, rated at 52% haze, are designed for brighter rooms. The 5,500:1 contrast ratio and 600,000:1 dynamic contrast ratio help keep dark and light areas of the image distinct.
Can the FW-85BZ40P be wall mounted?
Yes. It has a 400 x 400 mm VESA hole pitch and supports portrait and tilt orientation. The display weighs approximately 41.5 kg without stand, so use a bracket rated for that weight and a professional installation team.
Does the FW-85BZ40P support 24/7 use?
Yes. The manufacturer lists 24/7 operation time, with Power Saving Mode, dynamic backlight control and 0.5 W standby power. Rated power consumption is 299 W. IP control and HDMI auto wake-up are also listed.
Can the FW-85BZ40P connect to a room control system?
Yes. It supports IP control, RS-232C control and HDMI-CEC, and HDMI auto wake-up is listed. It also has four HDMI inputs, two USB ports and one Ethernet port for network connection.
Which HDR formats does the FW-85BZ40P support?
It supports HDR10 and HLG. The manufacturer's specifications do not list Dolby Vision for this model, so check HDR playback requirements against the source devices before installation. Its XR Processor and 92% DCI-P3 colour gamut support HDR10 and HLG playback.
