SonyDigital SignageSKU FW-85BZ35P

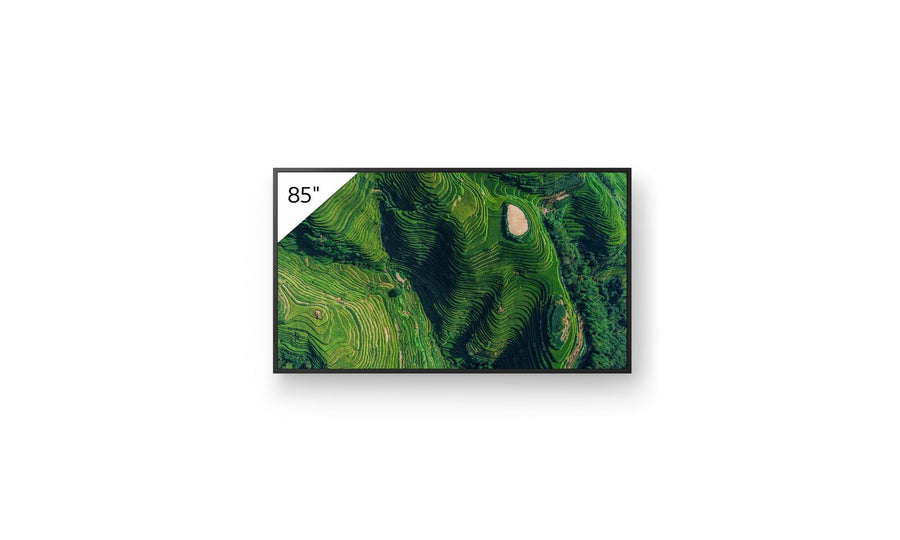

Sony Pro BRAVIA BZ35P 85-inch Digital Signage Display – FW-85BZ35P
The Sony FW-85BZ35P is an 85-inch 4K UHD professional display for digital signage in busy public spaces. It combines 500 nits brightness, a 4,500:1 contrast ratio and IP5X dust resistance. Procure.ae supplies the Sony FW-85BZ35P across the UAE, with quotes, delivery and installation.
The FW-85BZ35P has a 3840 x 2160 VA panel with direct LED backlight and frame dimming, rated at 500 nits and a 4,500:1 contrast ratio. Its XR Processor and 92% DCI-P3 colour gamut support HDR10 and HLG content. Viewing angles are 178 degrees horizontally and vertically, the response time is 8 ms, and the dynamic contrast ratio is 400,000:1. A 20 W audio output and 24/7 operation rating suit continuous signage playback.
The display fits digital signage, public information, reception and retail environments, and it mounts on a 400 x 400 mm VESA pattern. Android, Apple AirPlay, IP control and RS-232C control support network and room integration, with 32 GB on-board storage and integrated Wireless LAN. Compared with the FW-85BZ35L, this model has lower brightness (500 nits against 550 nits), a lower contrast ratio (4,500:1 against 6,000:1) and an IP5X dust-resistance rating, which the FW-85BZ35L does not list.
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Dust resistance
- Screen finish
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dust resistance
IP5X dust-resistance rating listed by the manufacturer.
02
Screen finish
Deep Black Non-Glare Standard finish with 25% haze.
03
Brightness and contrast
500 nits brightness and 4,500:1 contrast ratio on a VA panel.
04
4K HDR imaging
3840 x 2160 resolution with HDR10 and HLG support.
05
Colour performance
92% DCI-P3 colour gamut with an XR Processor.
06
Android and storage
Android operating system with 32 GB on-board storage and integrated Wireless LAN.
07
Network and control
Apple AirPlay, IP control and RS-232C control for networked management.
08
Inputs and ports
Four HDMI inputs, two USB ports and one Ethernet port.
Specifications
26 specificationsGeneral
Key FeaturesIP5X dust resistance, Deep Black Non-Glare Standard, 500 nits, 4K HDR (HDR10, HLG), Android OS, 32 GB storage, Apple AirPlay, IP and RS-232C control
ModelFW-85BZ35P
TypeDigital Signage Display
Display
BacklightDirect LED, frame dimming
Brightness500 nits
Color Gamut92% DCI-P3
Contrast Ratio4,500:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid
ProcessorXR Processor
Storage32 GB
Audio
Speaker Output20 W
Connectivity
HDMI Inputs4
PortsHDMI In × 4, USB × 2, Ethernet × 1
Wi-FiIntegrated wireless LAN
Power
Power Consumption252 W (rated)
Standby Power0.5 W
Physical
Dimensions1910 x 1091 x 73 mm, approx. (without stand)
Duty Cycle24/7
VESA Mount400 x 400 mm
WeightApprox. 41.5 kg (without stand)
Compliance
IP RatingIP5X (dust resistant)
Downloads
Manufacturer documents for the Sony Pro BRAVIA BZ35P 85-inch Digital Signage Display – FW-85BZ35P — datasheets, manuals, drawings and certificates.
- Datasheet – FW-85BZ35P
- Brochure – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- Safety 50720101M
- Dismantling information for use by professional recyclers(English only) 98889364M
- Safety 50720081M
Questions
Can’t find your answer? Ask on WhatsApp
Is the FW-85BZ35P dust resistant?
Yes. It carries an IP5X dust-resistance rating, and its screen uses a Deep Black Non-Glare Standard finish with 25% haze. The manufacturer's specifications do not list a water-resistance rating, so confirm the install location with Procure.ae before fitting.
Can the FW-85BZ35P run continuously in a busy lobby?
Yes. The manufacturer lists 24/7 operation time, with dynamic backlight control, Power Saving Mode and 0.5 W standby power. The EPREL on-mode rating is 113 kWh per 1,000 hours, and rated power consumption is 252 W.
What VESA pattern does the FW-85BZ35P use?
It uses a 400 x 400 mm VESA hole pitch. The display is portrait and tilt compatible, so it can be mounted in portrait orientation where the installation calls for it. The manufacturer lists the weight at approximately 41.5 kg without stand.
Does the FW-85BZ35P connect to a control system?
Yes. It has IP control, RS-232C control and HDMI-CEC, plus four HDMI inputs and one Ethernet port. HDMI auto wake-up is listed, and the integrated wireless LAN supports network connection.
Does the FW-85BZ35P support HDR content?
Yes, it supports HDR10 and HLG. The manufacturer's specifications do not list Dolby Vision for this model, so plan HDR playback around HDR10 and HLG content. Its XR Processor and 92% DCI-P3 colour gamut support those formats.
