SonyDigital SignageSKU FW-85BZ35L

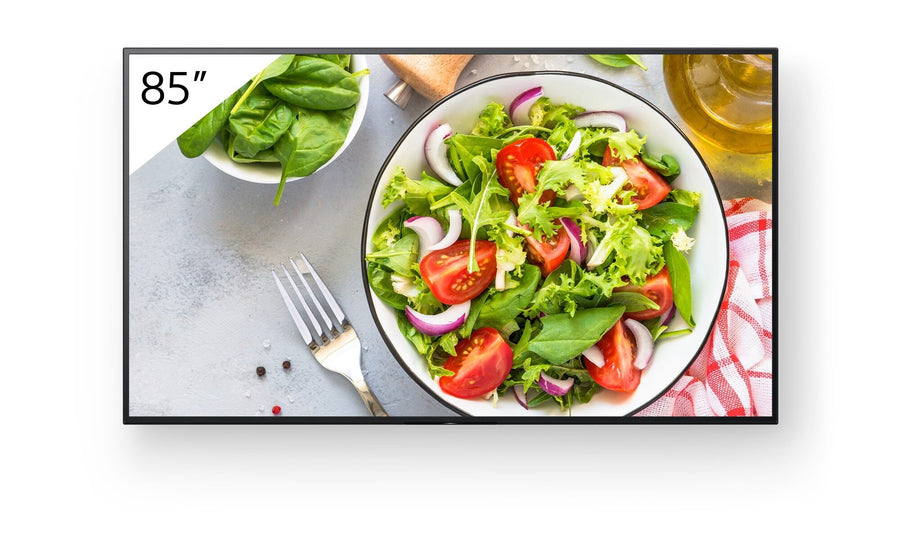

Sony Pro BRAVIA BZ35L 85-inch Digital Signage Display – FW-85BZ35L
The Sony FW-85BZ35L is an 85-inch 4K UHD professional display for digital signage, lobbies and meeting spaces. It offers 550 nits brightness, a 6,000:1 contrast ratio and Android TV with 32 GB on-board storage. Procure.ae supplies the Sony FW-85BZ35L across the UAE, with quotes, delivery and installation.
The FW-85BZ35L uses a 3840 x 2160 VA panel with direct LED backlight and frame dimming. The 4K HDR Processor X1 and TRILUMINOS PRO display cover 92% of the DCI-P3 colour gamut and support HDR10, HLG and Dolby Vision. Viewing angles are 178 degrees horizontally and vertically, with an 8 ms response time and a 400,000:1 dynamic contrast ratio. Motionflow XR 200/240Hz motion processing (native 50/60 Hz) and 24/7 operation complete the core specification.
The display suits digital signage, reception areas, boardrooms and training rooms, and its 24/7 operation rating fits continuous playback. Android TV, Chromecast Built-In and Apple AirPlay support content sharing, while IP control, RS-232C and HDMI-CEC support room and AV system integration. Wall mounting uses a 400 x 400 mm VESA pattern. Compared with the FW-85BZ35P, this model has higher brightness (550 nits against 500 nits), a higher contrast ratio (6,000:1 against 4,500:1) and Dolby Vision support, which the FW-85BZ35P does not list.
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
550 nits
Type
Digital Signage Display
- Brightness and contrast
- 4K HDR imaging
- Colour performance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Brightness and contrast
550 nits brightness with a 6,000:1 contrast ratio on a VA panel.
02
4K HDR imaging
3840 x 2160 resolution with HDR10, HLG and Dolby Vision support.
03
Colour performance
TRILUMINOS PRO display covering 92% of the DCI-P3 colour gamut.
04
Android TV platform
Android TV operating system with 32 GB on-board storage and an HTML5 platform.
05
Wireless casting
Chromecast Built-In, Apple AirPlay and Wi-Fi Direct support content sharing.
06
Motion processing
Motionflow XR 200/240Hz (native 50/60 Hz) with 4K X-Reality PRO video processing.
07
Room control
IP control, RS-232C control, HDMI-CEC and HDMI auto wake-up for managed rooms.
08
Inputs and ports
Four HDMI inputs, two USB ports, one Ethernet port and a composite video input.
Specifications
29 specificationsGeneral
Key Features4K HDR (HDR10, HLG, Dolby Vision), Android TV, Chromecast Built-In, Apple AirPlay, IP and RS-232C control, HDMI-CEC, 32 GB storage, 24/7 operation
ModelFW-85BZ35L
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDirect LED, frame dimming
Brightness550 nits
Color Gamut92% DCI-P3
Contrast Ratio6,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid TV
Processor4K HDR Processor X1
Storage32 GB
Audio
Speaker Output10 W + 10 W, down-firing
Connectivity
HDMI Inputs4
PortsHDMI In × 4, USB × 2, Ethernet × 1, Composite In × 1, Analog Audio In × 1, Digital Audio Out × 1
Wi-FiIntegrated wireless LAN, Wi-Fi Direct
Power
Power Consumption135 kWh/1000h (on-mode, EPREL)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1899 x 1089 x 71 mm (without stand)
Duty Cycle24/7
Shipping Dimensions2036 x 1239 x 258 mm
Shipping Weight62 kg (gross)
VESA Mount400 x 400 mm
Weight44.5 kg (without stand)
Downloads
Manufacturer documents for the Sony Pro BRAVIA BZ35L 85-inch Digital Signage Display – FW-85BZ35L — datasheets, manuals, drawings and certificates.
- Datasheet – FW-85BZ35L
- Brochure – Sony (covers 17 models)
- User manual – Sony Pro BRAVIA BZ30L / Pro BRAVIA BZ35L / Pro BRAVIA BZ40L
- User manual – Sony (covers 17 models)
- User manual – Sony (covers 19 models)
- User manual – Sony (covers 17 models)
- Wall-Mount Adjuster 50531841M
- Safety 50181151M
- Dismantling information for use by professional recyclers(English only) 98889164M
Questions
Can’t find your answer? Ask on WhatsApp
Does the FW-85BZ35L run Android TV without a separate media player?
Yes. The FW-85BZ35L runs Android TV with 32 GB of on-board storage, and it includes Chromecast Built-In and Apple AirPlay for wireless content sharing. Its HTML5 platform and multicast/IPTV support also suit networked signage playback.
Is the FW-85BZ35L rated for 24/7 operation?
Yes. The manufacturer lists 24/7 operation time, with dynamic backlight control, Power Saving Mode and 0.5 W standby power. The EPREL on-mode energy rating is 135 kWh per 1,000 hours.
Can the FW-85BZ35L be wall mounted, and what VESA pattern does it use?
Yes. It uses a 400 x 400 mm VESA hole pitch and is compatible with VESA hole spacing. The display also supports portrait and tilt orientation, and the manufacturer lists a wall-mount adjuster bundled depending on region.
Can the FW-85BZ35L connect to a control system?
Yes. It has IP control, RS-232C control and HDMI-CEC, plus four HDMI inputs, two USB ports, one Ethernet port and digital and analog audio connections. HDMI auto wake-up is also listed.
Does the FW-85BZ35L support HDR content?
Yes. It supports HDR10, HLG and Dolby Vision, and its 4K HDR Processor X1 works with a 92% DCI-P3 colour gamut on the TRILUMINOS PRO display. The panel is rated at 550 nits brightness with a 6,000:1 contrast ratio.
