SonyDigital SignageSKU FW-55BZ30P

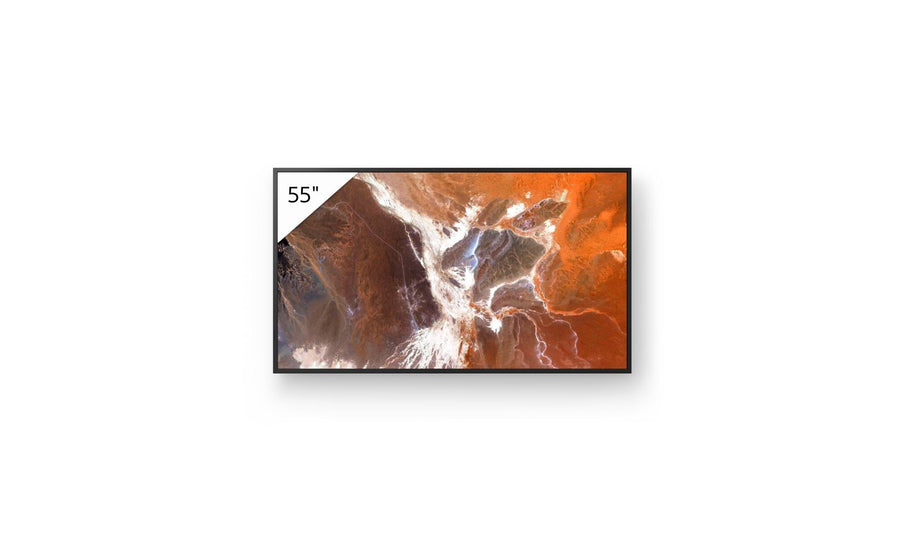

Sony Pro BRAVIA BZ30P 55-inch 4K UHD Digital Signage Display – FW-55BZ30P
The Sony FW-55BZ30P is a 55-inch 4K HDR professional display from the Pro BRAVIA BZ30P series, built for digital signage in offices, lobbies and retail. It offers 3840 x 2160 resolution, 400 nits brightness, a 1,200:1 contrast ratio and an IPS panel. Procure.ae supplies the FW-55BZ30P in the UAE.
The FW-55BZ30P uses a 55-inch IPS LCD panel with edge LED backlighting and frame dimming. It delivers 400 nits typical brightness, a 1,200:1 contrast ratio and 92% DCI-P3 colour gamut, with a 178-degree viewing angle. The XR Processor handles picture processing, and the panel supports HDR10 and HLG. It has an 8 ms grey-to-grey response time and a non-glare surface with 25% haze.
The display runs Android with HTML5 platform support, integrated wireless LAN and Apple AirPlay, with 32 GB of on-board storage. IP control, RS-232C control and HDMI-CEC support integration with a room or building control system. It supports portrait and tilt orientation on a 300 x 300 mm VESA pattern. Compared with the 43-inch and 50-inch BZ30P models, it offers the largest screen and the 300 x 300 mm VESA pattern, and it weighs 17.3 kg without stand.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- 4K UHD panel
- Brightness and contrast
- Non-glare surface
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution on a 55-inch 16:9 IPS panel.
02
Brightness and contrast
400 nits typical brightness with a 1,200:1 contrast ratio.
03
Non-glare surface
Deep Black Non-Glare Standard with 25% haze.
04
HDR support
HDR10 and HLG compatibility with 92% DCI-P3 colour gamut.
05
Android platform
Android operating system, HTML5 platform support and 32 GB on-board storage.
06
Wireless connectivity
integrated wireless LAN with Apple AirPlay.
07
Network control
IP control, RS-232C control and HDMI-CEC.
08
Flexible mounting
VESA 300 x 300 mm with portrait and tilt support.
Specifications
27 specificationsGeneral
Key FeaturesNon-glare surface (25% haze), Dynamic backlight control, HDR10 / HLG, Portrait and tilt, HTML5 platform, Apple AirPlay, IP control, RS-232C control
ModelFW-55BZ30P
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightEdge LED with frame dimming
Brightness400 nits
Color Gamut92% DCI-P3
Contrast Ratio1,200:1
Display TypeLCD
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178 degrees (89 / 89 horizontal and vertical)
Performance
Duty Cycle24/7
Operating SystemAndroid
Storage32 GB
Audio
Dynamic RangeHDR10, HLG
Speaker Output20 W
Connectivity
PortsHDMI In × 4, USB × 2, Ethernet × 1
Wi-FiIntegrated wireless LAN
Power
Power Consumption123 W (rated); 64 kWh per 1,000 h on-mode (EPREL)
Standby Power0.5 W
Physical
Dimensions1240 x 711 x 47 mm (without stand)
MountingVESA wall mount, portrait and tilt
VESA Mount300 x 300 mm
Weight17.3 kg (without stand)
Downloads
Manufacturer documents for the Sony Pro BRAVIA BZ30P 55-inch 4K UHD Digital Signage Display – FW-55BZ30P — datasheets, manuals, drawings and certificates.
- Datasheet – FW-55BZ30P
- Brochure – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- User manual – Sony Pro BRAVIA BZ30P / Pro BRAVIA BZ35P / Pro BRAVIA BZ40P
- Safety 50720101M
- Dismantling information for use by professional recyclers(English only) 98889364M
- Safety 50720081M
Questions
Can’t find your answer? Ask on WhatsApp
Is the FW-55BZ30P designed for continuous use?
Yes. The manufacturer lists 24/7 operation for the FW-55BZ30P. It has a rated power consumption of 123 W, an on-mode rating of 64 kWh per 1,000 hours under the EPREL label, and 0.5 W standby, with power saving mode included.
Can the FW-55BZ30P be mounted in portrait orientation?
Yes. The display supports portrait and tilt orientation with a 300 x 300 mm VESA hole pitch. It weighs approximately 17.3 kg without stand, so confirm the wall mount's VESA pattern and weight rating before installation. Procure.ae can arrange installation across the UAE.
Can it be controlled from a central system?
Yes. It supports IP control and RS-232C control, and HDMI-CEC lets compatible devices control the display over HDMI. These options suit integration with a room or building control system. Procure.ae can advise on the integration for your project.
Which HDMI signals does it accept?
It has four HDMI inputs with HDCP 2.3 support. Supported signals include 4096 x 2160 at 24, 50 and 60 Hz, 3840 x 2160 at 24, 25, 30, 50 and 60 Hz, and 1080p at 24, 30, 50 and 60 Hz, plus 1080i, 720p, 576p and 480p.
Does the FW-55BZ30P include Wi-Fi and wireless screen sharing?
Yes. It has integrated wireless LAN and supports Apple AirPlay. It runs the Android operating system with HTML5 platform support and 32 GB of on-board storage, so content can be stored locally and shared from compatible devices.
