SonyMeeting Room SolutionsSKU SRG-X400

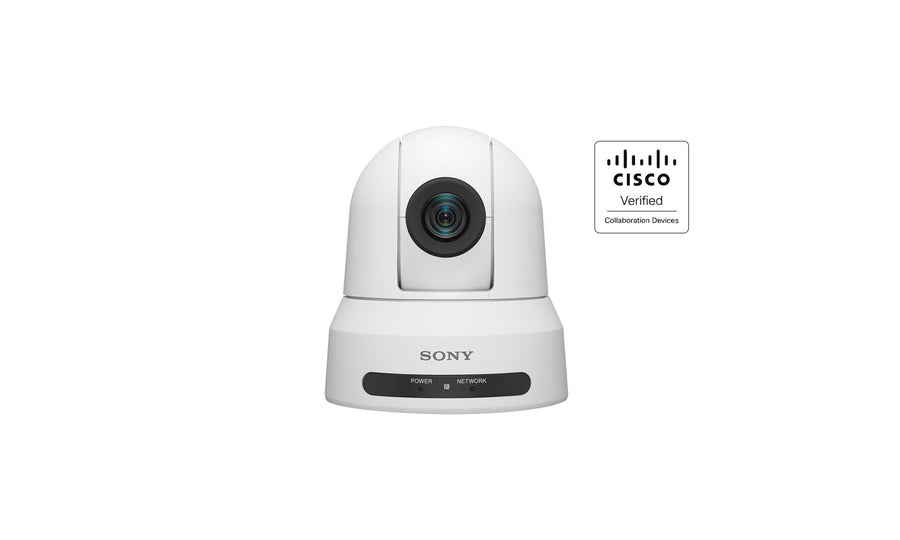

Sony IP PTZ Conference Camera with 30x Zoom – SRG-X400
The Sony SRG-X400 is a discontinued IP PTZ camera for conference rooms, classrooms and live streaming setups. It offers 30x optical zoom with clear image zoom, 4K output with an optional licence, and NDI|HX capability. Procure.ae can confirm current availability of the Sony SRG-X400 across the UAE.
The SRG-X400 uses a 1/2.5-type Exmor R CMOS sensor with approximately 8.5 megapixels effective and a 30x optical zoom, with a focal length of 4.4 to 88.0 mm. Clear image zoom gives 30x at 4K and 40x at HD. With the optional 4K license, its HDMI output and IP stream reach 3840 x 2160, while HD outputs run over 3G-SDI, HDMI and IP at up to 1920 x 1080. Pan spans ±170 degrees and tilt runs from +90 to -20 degrees, with pan and tilt speeds up to 300 and 126 degrees per second.
The SRG-X400 suits rooms that need a long-zoom IP PTZ camera with NDI|HX, multi-streaming to up to five clients and VISCA control. Its 256 CGI presets or 100 VISCA presets allow saved shot positions. It takes DC 12 V or PoE+ (IEEE 802.3at compliant) and mounts to a ceiling with the supplied brackets. Because the model is discontinued, confirm current availability before specifying it for a project.
Resolution
3840 x 2160 (4K UHD, optional licen...
Speed
Pan 1.1 to 101°/s; tilt 1.1 to 91°/s
Type
PTZ Camera
Weight
1.8 kg
- 30x optical zoom
- 4K output
- NDI|HX capability
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
30x optical zoom
4.4 to 88.0 mm focal length, with 40x at HD using clear image zoom.
02
4K output
3840 x 2160 with the optional 4K license.
03
NDI|HX capability
available with a licence sold separately.
04
IP streaming
up to 3840 x 2160, with bitrates from 512 Kbps to 50 Mbps.
05
Multi streaming
three streams to up to five clients.
06
Baseband outputs
3G-SDI and HDMI with embedded audio.
07
Microphone inputs
two 3.5 mm inputs with mic or line selection.
08
PoE+ or DC power
DC 12 V or PoE+ (IEEE 802.3at compliant).
Specifications
22 specificationsGeneral
Key Features4K output (requires optional 4K license), 30x optical zoom with clear image zoom, NDI|HX (license sold separately), IP streaming, PoE+ power, ceiling mount
ModelSRG-X400
TypePTZ Camera
What's in the BoxAC power adaptor, IR remote commander, ceiling brackets (2), wire rope, M3 and M2.6 screws, HDMI cable fixing plate, warranty
Display
Camera1/2.5-type Exmor R CMOS, approx. 8.5 MP effective
Resolution3840 x 2160 (4K UHD, optional license); 1920 x 1080 (Full HD)
Viewing Angleapprox. 70° horizontal (wide)
Zoom30x optical (4K with clear image zoom); 40x HD with clear image zoom
Performance
SpeedPan 1.1 to 101°/s; tilt 1.1 to 91°/s
Storage Conditions-20 to +60 °C
Audio
Audio In3.5 mm mini-phone × 2 (mic / line selectable)
Connectivity
Data Rate512 Kbps to 50 Mbps (IP stream)
Input VoltageDC 10.8 to 13.2 V
PoEPoE+ (IEEE 802.3at compliant)
PortsHDMI × 1, 3G-SDI × 1, IP streaming (RJ-45) × 1, VISCA IN/OUT RJ-45, microphone input 3.5 mm × 2
ProtocolsIPv4, IPv6, HTTP, HTTPS, RTP/RTCP, RTSP, UPnP, VISCA over IP
Power
Power Consumption25.5 W max
Physical
ColorWhite / Black
Dimensions158.4 x 177.5 x 200.2 mm
MountingCeiling mount (with ceiling bracket)
Operating Temperature0 to 40 °C
Weight1.8 kg
Downloads
Manufacturer documents for the Sony IP PTZ Conference Camera with 30x Zoom – SRG-X400 — datasheets, manuals, drawings and certificates.
- Datasheet – SRG-X400
- User manual – Sony (covers 13 models)
- User manual – Sony BRC-X400 / SRG-X120 / SRG-X400
- User manual – Sony (covers 12 models)
- User manual – Sony (covers 11 models)
- SRT Introduction V1.0
- Image Delay Time BRC-X400 Series 20200225
- NDI HX Introduction V1.0
- BRC-X400 SRG-X400 SRG-X120 Safety-Regulation
- SRG-X400-SRG-X120-Datasheet
- BRC SRG List-of-Verified-IEEE-802.3-at-Power-Sourcing-Equipment V1.0
- ToDistributebyRTMPS Eng1
- BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 CGI Command List E7761001M
- BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 VISCA Command List E0421001M
Questions
Can’t find your answer? Ask on WhatsApp
Does the Sony SRG-X400 support 4K?
Yes, with an optional 4K license. Without the license, the camera outputs HD at up to 1920 x 1080 through 3G-SDI, HDMI and IP streaming. Procure.ae can confirm current availability and recommend a current model for 4K needs.
Does the SRG-X400 need a licence for NDI|HX?
Yes. NDI|HX capability requires a licence that is sold separately from the camera. Confirm the licence is available before planning an NDI workflow. Procure.ae can advise on licence details before the order is placed, so the NDI workflow is ready at installation.
How many clients can the SRG-X400 stream to?
It supports up to five clients and three multi-streams at the same time. IP streams use bitrates from 512 Kbps to 50 Mbps, with a maximum frame rate of 60 fps in H.264 and H.265.
Can the SRG-X400 be controlled over IP?
Yes. It supports VISCA over IP and VISCA RS-422, with HTTP and HTTPS access. Up to 256 preset positions are available over CGI, or 100 over VISCA. An IR remote commander is also supplied for local control.
How is the SRG-X400 mounted and powered?
It mounts to a ceiling with the supplied ceiling brackets and wire rope. It runs on DC 12 V (10.8 to 13.2 V) or PoE+ (IEEE 802.3at compliant), and draws up to 25.5 W.
Can I buy the SRG-X400 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
