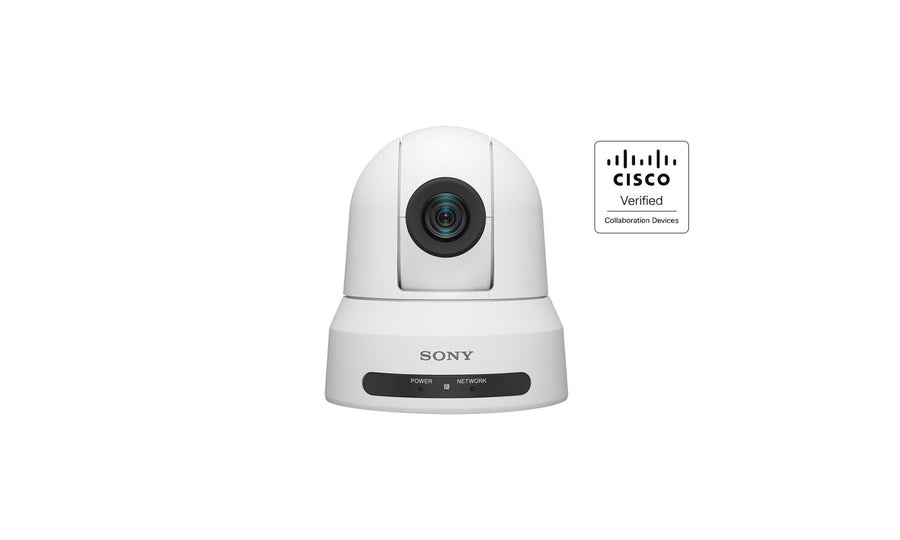

Sony IP PTZ Conference Camera with 30x Zoom – SRG-X400

The Sony SRG-X400 is a discontinued IP PTZ camera for conference rooms, classrooms and live streaming setups. It offers 30x optical zoom with clear image zoom, 4K output with an optional licence, and NDI|HX capability. Procure.ae can confirm current availability of the Sony SRG-X400 across the UAE.

The SRG-X400 uses a 1/2.5-type Exmor R CMOS sensor with approximately 8.5 megapixels effective and a 30x optical zoom, with a focal length of 4.4 to 88.0 mm. Clear image zoom gives 30x at 4K and 40x at HD. With the optional 4K license, its HDMI output and IP stream reach 3840 x 2160, while HD outputs run over 3G-SDI, HDMI and IP at up to 1920 x 1080. Pan spans ±170 degrees and tilt runs from +90 to -20 degrees, with pan and tilt speeds up to 300 and 126 degrees per second.

The SRG-X400 suits rooms that need a long-zoom IP PTZ camera with NDI|HX, multi-streaming to up to five clients and VISCA control. Its 256 CGI presets or 100 VISCA presets allow saved shot positions. It takes DC 12 V or PoE+ (IEEE 802.3at compliant) and mounts to a ceiling with the supplied brackets. Because the model is discontinued, confirm current availability before specifying it for a project.

Resolution

3840 x 2160 (4K UHD, optional license); 1920 x 1080 (Full HD)

Speed

Pan 1.1 to 101°/s; tilt 1.1 to 91°/s

Type

PTZ Camera

Weight

1.8 kg

Key features

30x optical zoom

4.4 to 88.0 mm focal length, with 40x at HD using clear image zoom.

4K output

3840 x 2160 with the optional 4K license.

NDI|HX capability

available with a licence sold separately.

IP streaming

up to 3840 x 2160, with bitrates from 512 Kbps to 50 Mbps.

Multi streaming

three streams to up to five clients.

Baseband outputs

3G-SDI and HDMI with embedded audio.

Microphone inputs

two 3.5 mm inputs with mic or line selection.

PoE+ or DC power

DC 12 V or PoE+ (IEEE 802.3at compliant).

Specifications

General
Key Features	4K output (requires optional 4K license), 30x optical zoom with clear image zoom, NDI\|HX (license sold separately), IP streaming, PoE+ power, ceiling mount
Model	SRG-X400
Type	PTZ Camera
What's in the Box	AC power adaptor, IR remote commander, ceiling brackets (2), wire rope, M3 and M2.6 screws, HDMI cable fixing plate, warranty

Display
Camera	1/2.5-type Exmor R CMOS, approx. 8.5 MP effective
Resolution	3840 x 2160 (4K UHD, optional license); 1920 x 1080 (Full HD)
Viewing Angle	approx. 70° horizontal (wide)
Zoom	30x optical (4K with clear image zoom); 40x HD with clear image zoom

Performance
Speed	Pan 1.1 to 101°/s; tilt 1.1 to 91°/s
Storage Conditions	-20 to +60 °C

Audio
Audio In	3.5 mm mini-phone × 2 (mic / line selectable)

Connectivity
Data Rate	512 Kbps to 50 Mbps (IP stream)
Input Voltage	DC 10.8 to 13.2 V
PoE	PoE+ (IEEE 802.3at compliant)
Ports	HDMI × 1, 3G-SDI × 1, IP streaming (RJ-45) × 1, VISCA IN/OUT RJ-45, microphone input 3.5 mm × 2
Protocols	IPv4, IPv6, HTTP, HTTPS, RTP/RTCP, RTSP, UPnP, VISCA over IP

Power
Power Consumption	25.5 W max

Physical
Color	White / Black
Dimensions	158.4 x 177.5 x 200.2 mm
Mounting	Ceiling mount (with ceiling bracket)
Operating Temperature	0 to 40 °C
Weight	1.8 kg
