SonyMeeting Room SolutionsSKU MAS-A100

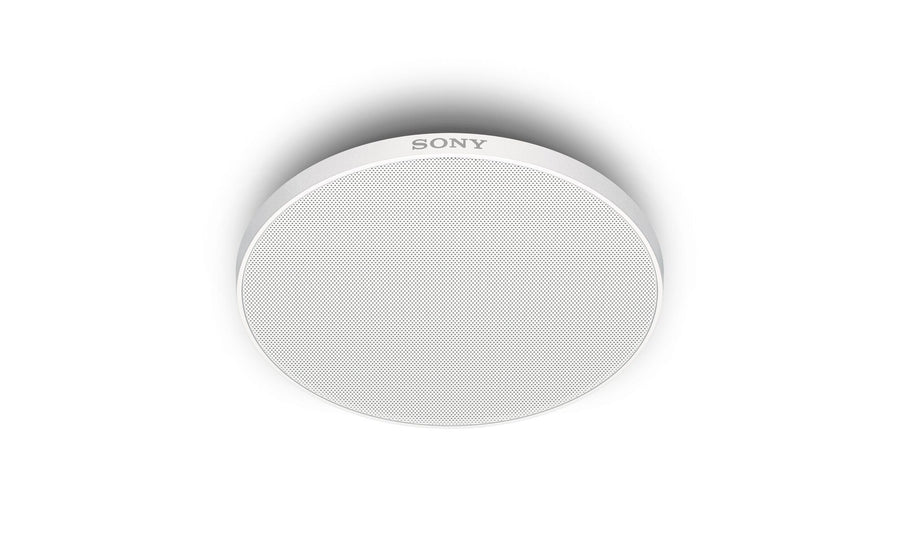

Sony Ceiling Microphone Array – MAS-A100
The Sony MAS-A100 is a ceiling microphone array for meeting rooms and conference spaces. It uses beamforming, feedback reduction and automatic gain control, outputs Dante and AES67 audio, and draws power over Ethernet (PoE) at 9 W typical. Procure.ae supplies the Sony MAS-A100 across the UAE.
The MAS-A100 uses beamforming to pick up speech across the room, with automatic gain control and a feedback reducer rated by the manufacturer at up to 32 dB. Noise reduction is rated at up to 24 dB, and a noise gate and automatic calibration with a test signal help the array adapt to each room. Audio leaves the unit as two Dante channels at 48 kHz and 24-bit, and AES67 is also listed as an audio interface. The frequency response runs from 100 Hz to 10 kHz.
Mount the array with the supplied ceiling bracket and installation template, and connect it to the network with Cat5e UTP cable or higher. It is powered by Power over Ethernet (Class 0), so no separate power supply is needed. The manufacturer lists an API for external control systems and browser control through Google Chrome. The unit measures about 240 mm across and 50 mm high, weighs about 1 kg, or 1.3 kg with the bracket, and operates from 0 to 40 °C.
Type
Ceiling Microphone Array
Weight
1 kg (main unit); 1.3 kg with ceili...
- Beamforming Array
- Feedback Reduction
- Noise Control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamforming Array
beamforming pickup with automatic gain control.
02
Feedback Reduction
feedback reducer rated at up to 32 dB.
03
Noise Control
noise reduction up to 24 dB, with a noise gate.
04
Dante and AES67 Audio
two Dante channels (Main and Rec) at 48 kHz and 24-bit.
05
Power over Ethernet
PoE Class 0, with 9 W typical and 13 W maximum consumption.
06
Automatic Calibration
calibrates with a test signal and includes an equaliser.
07
External Control API
API for external control systems and Google Chrome browser control.
Specifications
20 specificationsGeneral
CompatibilityWeb control through Google Chrome
Key FeaturesBeamforming, feedback reducer, automatic gain control, noise reduction, noise gate, automatic calibration, equaliser, external control API
ModelMAS-A100
TypeCeiling Microphone Array
What's in the BoxCeiling bracket, safety regulations (3), installation template
Performance
Storage Conditions-20 to 60 °C; 20% to 80% RH (non-condensing)
Audio
Audio OutDante and AES67; 2 channels (Main, Rec), 48 kHz, 24-bit
Dynamic Range75 dB
EQEqualiser
Frequency Response100 Hz to 10 kHz
Max SPL94 dB SPL
Sensitivity0 dBFS/Pa at 1 kHz
Signal-to-Noise Ratio75 dB (A-weighted)
Connectivity
ConnectivityEthernet, Cat5e UTP or higher
PoEPower over Ethernet, Class 0
Power
Power Consumption9 W typical at 25 °C; 13 W maximum
Physical
Dimensions240 mm diameter x 50 mm high
Operating Humidity20% to 80% (non-condensing)
Operating Temperature0 to 40 °C
Weight1 kg (main unit); 1.3 kg with ceiling bracket
Downloads
Manufacturer documents for the Sony Ceiling Microphone Array – MAS-A100 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the MAS-A100 need a separate power supply?
No. The MAS-A100 is powered by Power over Ethernet (Class 0) through a Cat5e UTP cable or higher. Typical consumption is 9 W at 25 °C and maximum consumption is 13 W, so the network switch must supply PoE to the ceiling array.
Does the MAS-A100 output audio over Dante or AES67?
Yes. It outputs two Dante channels, named Main and Rec, at a 48 kHz sampling rate and 24-bit depth. AES67 is also listed as an audio interface, so the array can feed AES67-compatible systems.
What size room does the MAS-A100 cover?
The manufacturer's specifications do not state a maximum coverage area or room size. The array uses beamforming, feedback reduction and automatic gain control, and Procure.ae can advise whether a ceiling array suits your room layout.
How is the MAS-A100 mounted?
It mounts to the ceiling with the supplied ceiling bracket and installation template. The unit is about 240 mm in diameter and 50 mm high, and weighs about 1 kg, or 1.3 kg with the bracket. Procure.ae provides installation across the UAE.
