SonyMeeting Room SolutionsSKU BRC-AM7

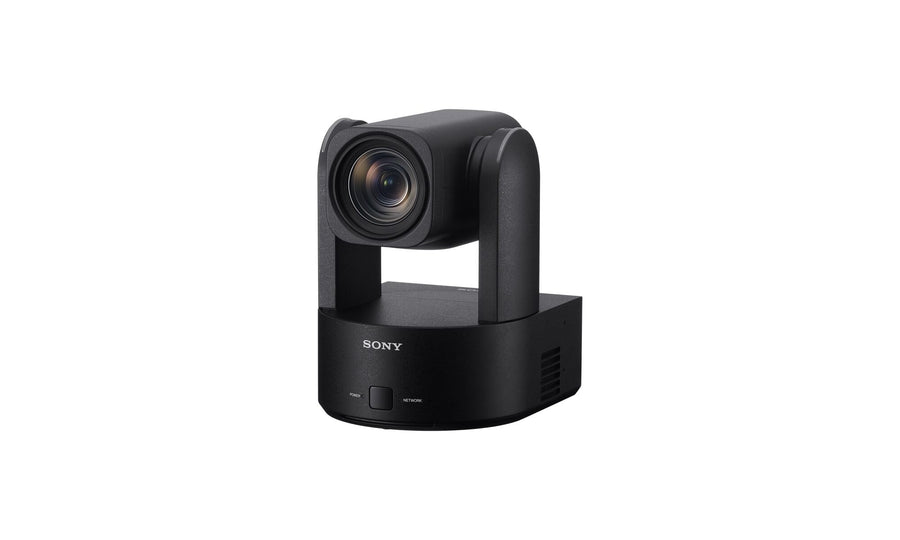

Sony 4K PTZ Conference Camera – BRC-AM7
The Sony BRC-AM7 is a 4K PTZ conference camera for meeting rooms, lecture halls and production setups that need SDI outputs. It offers a 20x optical zoom, a 1.0-type sensor, and auto framing for up to eight people. Procure.ae supplies the Sony BRC-AM7 across the UAE.
The BRC-AM7 has a 1.0-type Exmor RS CMOS sensor with approximately 14.0 megapixels of effective pixels and a 20x optical zoom, equal to 24 to 480 mm in 35 mm terms. It outputs 4K at up to 59.94p over SDI and HDMI, and it records XAVC video with 4-channel LPCM audio to CFexpress Type A or SD cards. Auto framing covers up to eight people. Pan runs from -175 to 175 degrees and tilt from -30 to 210 degrees, with pan and tilt speeds up to 180 degrees per second.
The BRC-AM7 suits rooms where one camera feeds a conferencing platform and production equipment at the same time. NDI|HX is pre-installed for IP video, and the camera can stream over SRT, RTMP and RTSP. Free-d tracking data is available for virtual sets. Setup runs in Chrome, Edge or Safari on Windows, macOS, iPadOS and Android. It takes DC 12 V or PoE++ power and mounts to a ceiling with the supplied brackets.
Resolution
3840 x 2160 (4K UHD)
Speed
Pan and tilt 0.004 to 180°/s
Type
PTZ Camera
Weight
3.5 kg
- 4K output
- 20x optical zoom
- Auto framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K output
3840 x 2160 at up to 59.94p over SDI and HDMI.
02
20x optical zoom
24 to 480 mm equivalent focal range, with 1.5x clear image zoom in 4K.
03
Auto framing
single-person and multi-person framing for up to eight people.
04
NDI|HX pre-installed
IP streaming over NDI|HX, SRT, RTMP and RTSP.
05
SDI and optical outputs
two SDI outputs, HDMI and an SFP+ optical output.
06
XLR audio inputs
two XLR inputs with selectable line, mic and +48 V phantom power.
07
Tracking data
free-d Type D0 and D1 camera tracking data output.
08
PoE++ or DC power
DC 12 V (11.0 to 17.0 V) or PoE++ (IEEE 802.3bt Type 4 Class 8).
Specifications
23 specificationsGeneral
Key Features4K output, 20x optical zoom, single and multi-person auto framing, NDI|HX pre-installed, SDI and HDMI outputs, PoE++ power, free-d tracking data
ModelBRC-AM7
TypePTZ Camera
What's in the BoxLens cap, RMT-RC3 remote commander, ceiling brackets A and B, M3 and M4 screws, wire rope, QR code sticker, warranty booklet
Display
Camera1.0-type Exmor RS CMOS, approx. 14.0 MP effective
Resolution3840 x 2160 (4K UHD)
Viewing Angle75° horizontal, 46° vertical
Zoom20x optical; 1.5x clear image zoom (4K); 2x (1080p)
Performance
Media TypeCFexpress Type A / SD card (x2)
SpeedPan and tilt 0.004 to 180°/s
Storage Conditions-20 to +60 °C
Audio
Audio InXLR × 2 (line / mic / mic +48 V), 3.5 mm stereo × 1
Connectivity
Data Rate512 kbps to 80 Mbps (IP stream)
Input VoltageDC 12 V (11.0 to 17.0 V)
PoEPoE++ (IEEE 802.3bt Type 4 Class 8)
PortsSDI OUT × 2, HDMI OUT × 1, SFP+ optical output × 1, LAN RJ-45 (1000BASE-T) × 1, VISCA IN/OUT RJ-45
ProtocolsVISCA over IP, HTTP/HTTPS, RTSP, RTMP/RTMPS, SRT, NDI|HX
Power
Power Consumption132 W max (DC In); 71.3 W max (PoE++)
Physical
ColorBlack / White
Dimensions168.7 x 225.2 x 192.3 mm
MountingCeiling mount (with ceiling bracket); tripod 1/4-20 UNC and 3/8-16 UNC
Operating Temperature0 to 40 °C
Weight3.5 kg
Downloads
Manufacturer documents for the Sony 4K PTZ Conference Camera – BRC-AM7 — datasheets, manuals, drawings and certificates.
- Datasheet – BRC-AM7
- User manual – Sony (covers 13 models)
- User manual – BRC-AM7
- User manual – BRC-AM7
- User manual – BRC-AM7
- List-of-Verified-XLR-PowerSupply-Devices V1.0 E
- IPRemote UserGuide en
- Why-Sonys-HXC-FZ90-studio-camera-and-BRC-AM7-PTZ-camera-are-a-great-match-for-modern-broad
- BRCAM7 FreeD-Integration-Manual-1
- 20251212 Global Web URL summary Drivers AM7-1
- 20250801 Set-up-Sony-BRC-AM7-NDI-Camera-for-Zoom-Rooms-Quick-Guide
- BRC-AM7 video-latency-measurement-results 20241129
- List-of-Verified-PoE-Power-Delivery-Devices V1.0 E
- List-of-Verified-SFP-Modules V1.0 E
- BRC-AM7 RCP List of Supported Functions EN rev2.0
- EU BATTERY FLYER 50819240M
Questions
Can’t find your answer? Ask on WhatsApp
Does the Sony BRC-AM7 support 4K?
Yes. The BRC-AM7 outputs 3840 x 2160 at up to 59.94p over SDI and HDMI, and it records 4K XAVC to CFexpress Type A or SD cards. Internal recording is not available when the camera is powered through PoE++.
Can the BRC-AM7 frame people automatically?
Yes. Single-person auto framing is supported, along with multi-person framing for up to eight people, auto framing pause and AF sync. Face registration, lead room effect and tracking range are also available, and framing files can be loaded and saved.
Does the BRC-AM7 work with NDI and IP streaming?
Yes. NDI|HX is pre-installed, and the camera streams over SRT, RTMP, RTSP and RTP. UVC output is not supported, so a plain USB webcam connection is not possible; use NDI|HX or IP streaming instead.
How is the BRC-AM7 mounted?
It mounts to a ceiling with the supplied ceiling bracket, or to a tripod through its 1/4-20 UNC or 3/8-16 UNC screw holes. The package includes two ceiling brackets, a wire rope and M3 and M4 screws.
What power does the BRC-AM7 need?
It runs on DC 12 V (11.0 to 17.0 V) or PoE++ (IEEE 802.3bt Type 4 Class 8). Power consumption is up to 132 W on DC In and up to 71.3 W on PoE++.
