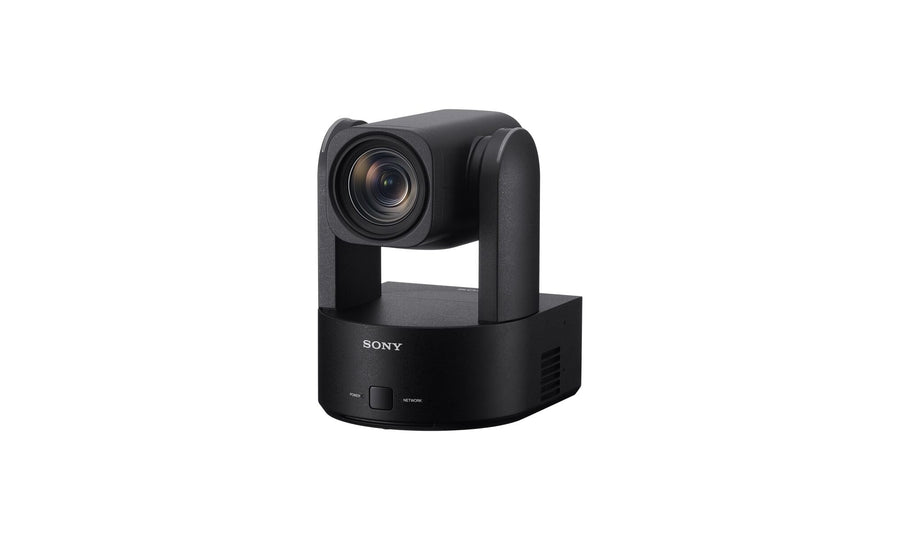

Sony 4K PTZ Conference Camera – BRC-AM7

The Sony BRC-AM7 is a 4K PTZ conference camera for meeting rooms, lecture halls and production setups that need SDI outputs. It offers a 20x optical zoom, a 1.0-type sensor, and auto framing for up to eight people. Procure.ae supplies the Sony BRC-AM7 across the UAE.

The BRC-AM7 has a 1.0-type Exmor RS CMOS sensor with approximately 14.0 megapixels of effective pixels and a 20x optical zoom, equal to 24 to 480 mm in 35 mm terms. It outputs 4K at up to 59.94p over SDI and HDMI, and it records XAVC video with 4-channel LPCM audio to CFexpress Type A or SD cards. Auto framing covers up to eight people. Pan runs from -175 to 175 degrees and tilt from -30 to 210 degrees, with pan and tilt speeds up to 180 degrees per second.

The BRC-AM7 suits rooms where one camera feeds a conferencing platform and production equipment at the same time. NDI|HX is pre-installed for IP video, and the camera can stream over SRT, RTMP and RTSP. Free-d tracking data is available for virtual sets. Setup runs in Chrome, Edge or Safari on Windows, macOS, iPadOS and Android. It takes DC 12 V or PoE++ power and mounts to a ceiling with the supplied brackets.

Resolution

3840 x 2160 (4K UHD)

Speed

Pan and tilt 0.004 to 180°/s

Type

PTZ Camera

Weight

3.5 kg

Key features

4K output

3840 x 2160 at up to 59.94p over SDI and HDMI.

20x optical zoom

24 to 480 mm equivalent focal range, with 1.5x clear image zoom in 4K.

Auto framing

single-person and multi-person framing for up to eight people.

NDI|HX pre-installed

IP streaming over NDI|HX, SRT, RTMP and RTSP.

SDI and optical outputs

two SDI outputs, HDMI and an SFP+ optical output.

XLR audio inputs

two XLR inputs with selectable line, mic and +48 V phantom power.

Tracking data

free-d Type D0 and D1 camera tracking data output.

PoE++ or DC power

DC 12 V (11.0 to 17.0 V) or PoE++ (IEEE 802.3bt Type 4 Class 8).

Specifications

General
Key Features	4K output, 20x optical zoom, single and multi-person auto framing, NDI\|HX pre-installed, SDI and HDMI outputs, PoE++ power, free-d tracking data
Model	BRC-AM7
Type	PTZ Camera
What's in the Box	Lens cap, RMT-RC3 remote commander, ceiling brackets A and B, M3 and M4 screws, wire rope, QR code sticker, warranty booklet

Display
Camera	1.0-type Exmor RS CMOS, approx. 14.0 MP effective
Resolution	3840 x 2160 (4K UHD)
Viewing Angle	75° horizontal, 46° vertical
Zoom	20x optical; 1.5x clear image zoom (4K); 2x (1080p)

Performance
Media Type	CFexpress Type A / SD card (x2)
Speed	Pan and tilt 0.004 to 180°/s
Storage Conditions	-20 to +60 °C

Audio
Audio In	XLR × 2 (line / mic / mic +48 V), 3.5 mm stereo × 1

Connectivity
Data Rate	512 kbps to 80 Mbps (IP stream)
Input Voltage	DC 12 V (11.0 to 17.0 V)
PoE	PoE++ (IEEE 802.3bt Type 4 Class 8)
Ports	SDI OUT × 2, HDMI OUT × 1, SFP+ optical output × 1, LAN RJ-45 (1000BASE-T) × 1, VISCA IN/OUT RJ-45
Protocols	VISCA over IP, HTTP/HTTPS, RTSP, RTMP/RTMPS, SRT, NDI\|HX

Power
Power Consumption	132 W max (DC In); 71.3 W max (PoE++)

Physical
Color	Black / White
Dimensions	168.7 x 225.2 x 192.3 mm
Mounting	Ceiling mount (with ceiling bracket); tripod 1/4-20 UNC and 3/8-16 UNC
Operating Temperature	0 to 40 °C
Weight	3.5 kg
