SMART MultiStylus Interactive Display Stylus – SMS-TE-IQ4

The SMART MultiStylus (SMS-TE-IQ4) is a pen for SMART interactive displays, with 4096 levels of pressure sensitivity, pen and air mouse modes, and a magnetic docking station with wireless charging. Procure.ae, an authorised reseller of SMART, supplies it across the UAE for classrooms and meeting rooms.

The stylus writes with pressure-sensitive inking across 4096 pressure levels and has a pressure-activated eraser. Pen mode offers colour selection, a highlighter, whiteboard, browser, screen capture and screen shade. Air mouse mode adds cursor control, a laser pointer, left and right mouse clicks and an ESC key. The programmable LED and the top and bottom arrow buttons sit on the stylus body. The manufacturer states up to 10 hours of usage time depending on mode, with a quick charge of 1 minute for up to 60 minutes of use.

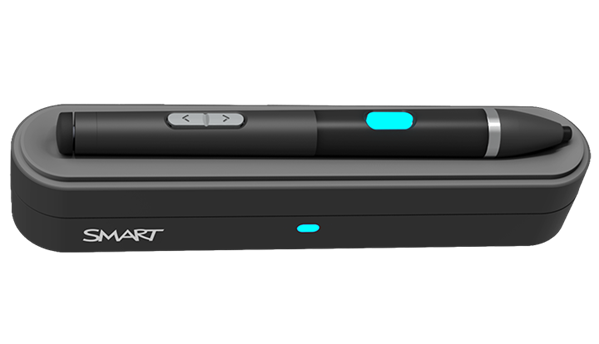

The docking station mounts magnetically on the display frame, and the stylus attaches magnetically to the dock, where it charges wirelessly. The manufacturer lists operation with SMART Board MX (V5), MX (V5) Plus, QX (V2) Pro and RX displays on Windows 11 and macOS 26. Optional Tool Explorer (V2) cubes and stamps are available. The stylus wakes on motion and enters a standby mode after 10 minutes of inactivity.

Type
Interactive Display Stylus
Weight
31 g (stylus); 175 g (docking station)
  • Pressure-sensitive pen
  • Pen and air mouse modes
  • Wireless docking charge
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Pressure-sensitive pen
4096 levels of pressure for inking, with a pressure-activated eraser.
02
Pen and air mouse modes
Pen mode for inking and whiteboard tools, air mouse mode for cursor, laser pointer and click functions.
03
Wireless docking charge
Charges wirelessly on the docking station, with 1 minute of quick charge for up to 60 minutes of use.
04
Long usage time
10 hours of usage time depending on mode, with up to 168 hours of standby time.
05
Magnetic mounting
The docking station mounts on the display frame, and the stylus sits magnetically on the dock.
06
Compatible displays
Listed for SMART Board MX (V5), MX (V5) Plus, QX (V2) Pro and RX displays.

Specifications

20 specifications
General
CompatibilitySMART Board MX (V5), MX (V5) Plus, QX (V2) Pro, RX
Key Features4096 pressure levels, pen and air mouse modes, pressure-activated eraser, wireless docking charge, motion-activated auto-on, Tool Explorer (V2) optional
ModelSMART MultiStylus
TypeInteractive Display Stylus
What's in the BoxSMART MultiStylus, SMART Docking Station with Tool Explorer (V2), USB 2.0 Type-C to Type-A cable (3 m), hardware set (1 screwdriver, 2 screws)
Performance
Operating SystemWindows 11; macOS 26
Storage Conditions-40 to 60 °C
Connectivity
ConnectivityWireless up to 30 m (open area); wired USB-C to USB-A
PortsUSB 2.0 Type-C input (docking station)
Programmable KeysProgrammable LED; programmable top and bottom arrows; eraser
Power
Battery Life10 hours (mode dependent)
Power ConsumptionLess than 4.5 W
Power SourceUltra-capacitor
Physical
MountingStylus magnetic on docking station; docking station magnetic on display frame
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions21 x 9.2 x 2.5 cm (stylus)
Shipping Weight90 g (stylus); 325 g (docking station)
Weight31 g (stylus); 175 g (docking station)
Compliance
CertificationsCE, UKCA

Downloads

Manufacturer documents for the SMART MultiStylus Interactive Display Stylus – SMS-TE-IQ4 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Which SMART displays is the MultiStylus compatible with?
The manufacturer lists compatibility with SMART Board MX (V5), SMART Board MX (V5) Plus, SMART Board QX (V2) Pro and SMART Board RX displays. Procure.ae can confirm fit for other SMART models before you order.
How long does the SMART MultiStylus battery last?
The manufacturer states up to 10 hours of usage time, depending on mode, and up to 168 hours of standby time in sleep mode. It uses an ultra-capacitor and charges wirelessly on the docking station, with a 1-minute quick charge for up to 60 minutes of use.
Does the MultiStylus work with Windows and Mac?
Yes, the manufacturer lists support for Windows 11 and macOS 26. Wired connection uses a USB-C to USB-A cable, and wireless operation has a range of more than 30 metres in an open area.
