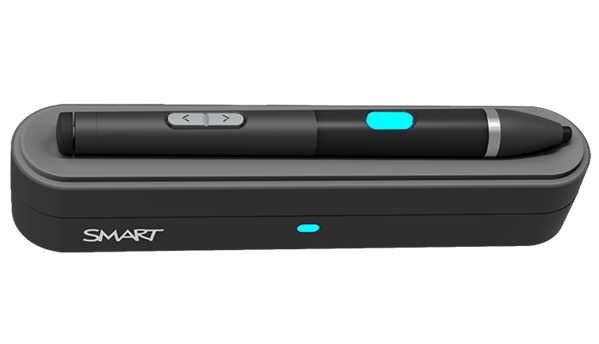

The SMART MultiStylus (SMS-TE-IQ4) is a pen for SMART interactive displays, with 4096 levels of pressure sensitivity, pen and air mouse modes, and a magnetic docking station with wireless charging. Procure.ae, an authorised reseller of SMART, supplies it across the UAE for classrooms and meeting rooms.
The stylus writes with pressure-sensitive inking across 4096 pressure levels and has a pressure-activated eraser. Pen mode offers colour selection, a highlighter, whiteboard, browser, screen capture and screen shade. Air mouse mode adds cursor control, a laser pointer, left and right mouse clicks and an ESC key. The programmable LED and the top and bottom arrow buttons sit on the stylus body. The manufacturer states up to 10 hours of usage time depending on mode, with a quick charge of 1 minute for up to 60 minutes of use.
The docking station mounts magnetically on the display frame, and the stylus attaches magnetically to the dock, where it charges wirelessly. The manufacturer lists operation with SMART Board MX (V5), MX (V5) Plus, QX (V2) Pro and RX displays on Windows 11 and macOS 26. Optional Tool Explorer (V2) cubes and stamps are available. The stylus wakes on motion and enters a standby mode after 10 minutes of inactivity.
| Compatibility | SMART Board MX (V5), MX (V5) Plus, QX (V2) Pro, RX |
| Key Features | 4096 pressure levels, pen and air mouse modes, pressure-activated eraser, wireless docking charge, motion-activated auto-on, Tool Explorer (V2) optional |
| Model | SMART MultiStylus |
| Type | Interactive Display Stylus |
| What's in the Box | SMART MultiStylus, SMART Docking Station with Tool Explorer (V2), USB 2.0 Type-C to Type-A cable (3 m), hardware set (1 screwdriver, 2 screws) |
| Operating System | Windows 11; macOS 26 |
| Storage Conditions | -40 to 60 °C |
| Connectivity | Wireless up to 30 m (open area); wired USB-C to USB-A |
| Ports | USB 2.0 Type-C input (docking station) |
| Programmable Keys | Programmable LED; programmable top and bottom arrows; eraser |
| Battery Life | 10 hours (mode dependent) |
| Power Consumption | Less than 4.5 W |
| Power Source | Ultra-capacitor |
| Mounting | Stylus magnetic on docking station; docking station magnetic on display frame |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 21 x 9.2 x 2.5 cm (stylus) |
| Shipping Weight | 90 g (stylus); 325 g (docking station) |
| Weight | 31 g (stylus); 175 g (docking station) |
| Certifications | CE, UKCA |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
