SMARTInteractive Flat PanelsSKU SBID-6575S-V3-P

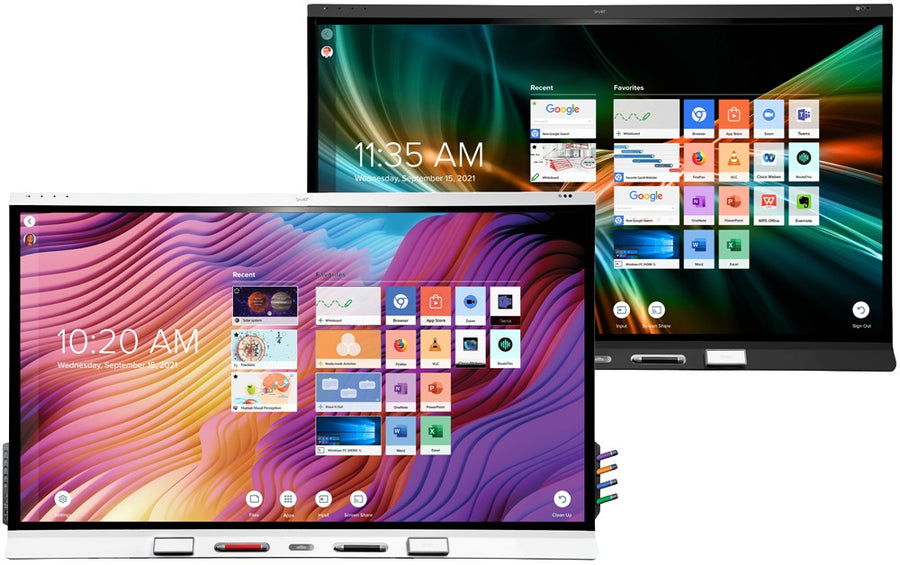

SMART Board 6575S-V3 Pro 75-inch Interactive Flat Panel – SBID-6575S-V3-P
The SMART Board 6575S-V3 Pro is a 75-inch interactive flat panel for classrooms and business meeting rooms. It has 4K UHD (3840 x 2160) resolution, up to 40 touch points and Android 11 with the iQ built-in experience. Procure.ae supplies the SBID-6575S-V3-P across the UAE, with delivery and installation.
The 75-inch panel uses an LED backlight with a 16:9 aspect ratio, 3840 x 2160 (4K UHD) resolution and a 60 Hz refresh rate. Brightness is rated at 350 nits or more, the viewing angle is 178°, and the fully heat-tempered anti-glare glass resists smudges and fingerprints. HyPr Touch with InGlass supports up to 40 touch points (OS dependent) with ±1 mm accuracy, Pen ID, Silktouch and Pressure Sensitive Ink. Two integrated 20 W speakers and a linear four-microphone array handle audio, and the package includes two pens, two erasers and magnetic tool holders.
The panel runs Android 11 with 6 GB of RAM and 32 GB of storage, and includes SMART Notebook, SMART Ink and SMART Product Drivers, plus Google Drive and OneDrive access. It accepts SMART PCM OPS computing modules, offers dual-band Wi-Fi and Bluetooth 5.0, and has two RJ45 ports (1000BASE-T). Mount it with a 600 x 400 mm VESA pattern. At 75 inches it measures 1758 x 1082 x 124 mm and weighs 65 kg, between the 65-inch and 86-inch sizes.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
≥ 350 nits
Type
Interactive Flat Panel
- 4K UHD display
- 40-point touch
- Pen and tool input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution at 60 Hz on a 16:9 LED-backlit panel with a 178° viewing angle.
02
40-point touch
Up to 40 touch points (OS dependent) with ±1 mm accuracy.
03
Pen and tool input
Pen ID, Silktouch and Pressure Sensitive Ink, with two pens and two erasers included.
04
Android 11 platform
iQ built-in Android experience with 6 GB RAM and 32 GB storage.
05
Integrated audio
Two integrated 20 W speakers and a linear four-microphone array.
06
NFC sign-in
Integrated RFID NFC reader/writer, with two SMART ID cards listed in the package contents.
07
Wired and wireless networking
Dual-band Wi-Fi 802.11 a/b/g/n/ac with 2 × 2 MIMO, Bluetooth 5.0 and two RJ45 ports.
08
VESA mounting
600 x 400 mm VESA pattern with M8 fixings, and a wall mount listed in the package contents.
Specifications
41 specificationsGeneral
ControlsPower, home, volume, screen shade, freeze frame
Key FeaturesTAA compliant, 40-point multi-touch, Pen ID, NFC sign-in, iQ built-in Android, SMART Notebook included, 2 × 20 W speakers, automatic OTA updates
ModelSBID-6575S-V3-P
TypeInteractive Flat Panel
What's in the Box2 pens, 2 erasers, remote control, 3 external antennae, 2 SMART ID cards, USB cable, wall mount
Display
Aspect Ratio16:9
BacklightLED
Brightness≥ 350 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time≤ 8 ms
Screen Size75 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch (OS dependent)
TouchscreenYes
Viewing Angle178°
Performance
Operating SystemAndroid 11
RAM6 GB
Storage32 GB
Storage Conditions-20 to 60 °C
Audio
Audio Out3.5 mm stereo, S/PDIF optical
MicrophoneIntegrated linear 4-microphone array
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.0 (dual mode)
Ethernet1000BASE-T, RJ45 × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (back), for 60 W devices
Serial PortRS-232 × 1
USB PortsUSB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB 3.0 Type-B × 3, USB 2.0 Type-B × 1
USB-C Ports2 (1 front, 1 back), 4K @ 60 Hz, DisplayPort 1.2
Wi-Fi802.11 a/b/g/n/ac, 2 × 2 MIMO, 2.4 and 5 GHz
Power
Power Consumption134 W (typical)
Standby Power0.4 W
Physical
ColorWhite or black
Dimensions1758 x 1082 x 124 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
VESA Mount600 x 400 mm
Weight65 kg
Compliance
CertificationsTAA compliant, ENERGY STAR, CE, UKCA, RoHS, REACH, WEEE
WarrantySMART Assure (terms vary by region)
Downloads
Manufacturer documents for the SMART Board 6575S-V3 Pro 75-inch Interactive Flat Panel – SBID-6575S-V3-P — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board 6000S (V3) series – specssbid6000s-v3-p
- Datasheet – SMART Board 6000S (V3) series – specssbid6000s-v3
- Datasheet – SMART Board 6000S (V3) series – specssbid6500s-v3-p-taa
- User manual – SMART Board 6000S (V3) series – guidesbid6000suser
- User manual – SMART Board 6000S (V3) series – sbid6000s-v3textlessguide
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the SBID-6575S-V3-P?
The SBID-6575S-V3-P is a 75-inch interactive flat panel with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, a 60 Hz refresh rate and brightness rated at 350 nits or more.
Is the SBID-6575S-V3-P suitable for a classroom or boardroom?
Yes. It suits classrooms and meeting rooms, with up to 40 touch points, a 178° viewing angle, two 20 W speakers and a four-microphone array for room audio and voice input. Procure.ae can advise on the mounting position for the room.
How heavy is the SBID-6575S-V3-P and what mounting does it need?
The 75-inch model weighs 65 kg and uses a 600 x 400 mm VESA pattern with M8 fixings. Its screen measures 1758 x 1082 x 124 mm (W x H x D), so check the wall or stand width before installation. Procure.ae handles installation across the UAE.
Does the SBID-6575S-V3-P support OPS computing modules?
Yes. It has one OPS PC accessory slot on the back for 60 W devices, and the specifications list SMART PCM modules as supported. The panel also runs Android 11 with the iQ built-in experience.
Which software comes with the SBID-6575S-V3-P?
SMART Notebook, SMART Ink and SMART Product Drivers are listed as included. SMART Remote Management is a subscription for the length of the included warranty, and the panel receives automatic over-the-air updates.
