SharpMeeting Room SolutionsSKU Wall Mount SF680P

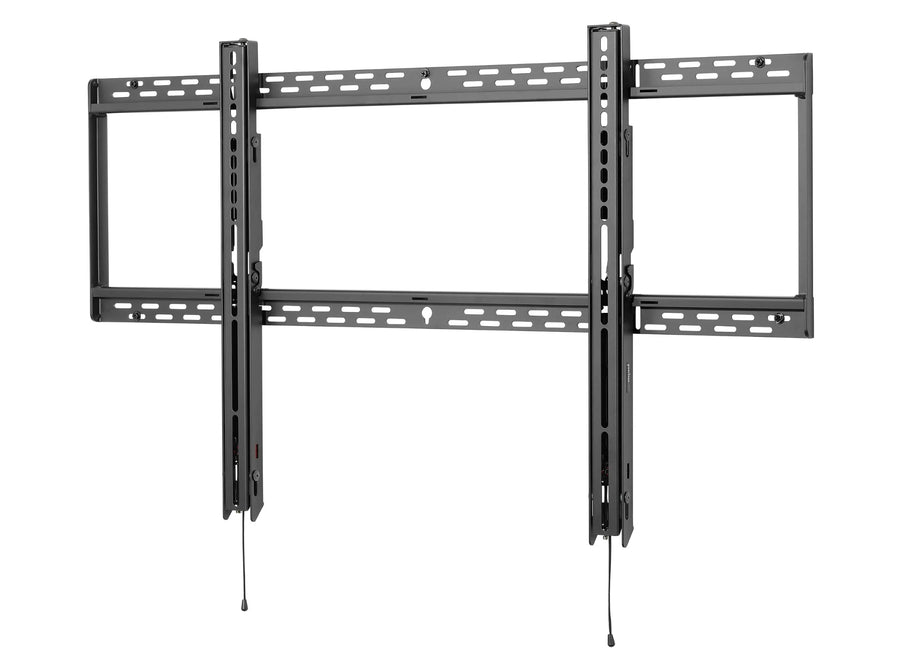

Sharp Ultra-Slim Universal Flat Wall Mount – Wall Mount SF680P
The Sharp Wall Mount SF680P is an ultra-slim flat wall mount for displays from 65 to 98 inches, rated for up to 158 kg. Its built-in kickstand holds the display away from the wall during cable routing, and it supports landscape and portrait use. Procure.ae, an authorised reseller, supplies it across the UAE.
The SF680P measures 1062 x 698 x 44 mm (W x H x D) and weighs 7.8 kg, giving the mount a low profile against the wall. It is designed to hold large displays up to 158 kg on a 1100 x 650 mm VESA pattern. A built-in kickstand supports the display while cables are routed, and the open wall plate allows more electrical and cable management options. Horizontal and vertical adjustment helps fine-tune the display position after mounting.
Type
Wall Mount
Weight
7.8 kg
- Ultra-slim profile
- Load rating
- Built-in kickstand
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-slim profile
44 mm depth for a close fit to the wall.
02
Load rating
holds displays up to 158 kg.
03
Built-in kickstand
holds the display away from the wall during cable routing.
04
Open wall plate
more electrical and cable management options.
05
Fine adjustment
horizontal and vertical adjustment after mounting.
06
VESA pattern
1100 x 650 mm, recommended for 65 to 98-inch displays.
Specifications
15 specificationsGeneral
Key FeaturesUltra-slim profile, built-in kickstand, horizontal and vertical adjustment, 158 kg max load, VESA 1100 x 650 mm, open wall plate, 65 to 98-inch range, 5-year warranty
ModelWall Mount SF680P
TypeWall Mount
Display
OrientationLandscape and portrait
Supported Screen Sizes65 to 98 inch
Physical
AdjustabilityHorizontal and vertical adjustment
ColorBlack
Dimensions1062 x 698 x 44 mm
Load Capacity158 kg
MountingWall mount, single display
Shipping Dimensions1185 x 58 x 390 mm
Shipping Weight9.21 kg
VESA Mount1100 x 650 mm
Weight7.8 kg
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Sharp Ultra-Slim Universal Flat Wall Mount – Wall Mount SF680P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the Wall Mount SF680P support?
It is recommended for displays from 65 to 98 inches, with a maximum load of 158 kg and a 1100 x 650 mm VESA pattern. The manufacturer notes the size range is a recommendation, so check the display's weight and VESA pattern before ordering.
Can the SF680P be used in portrait orientation?
Yes. The mount supports both landscape and portrait orientation. Confirm that the display uses the 1100 x 650 mm VESA pattern listed for this mount before ordering. Procure.ae can also confirm compatibility for a specific display model.
Does the mount hold the display away from the wall during installation?
Yes. A built-in kickstand holds the display away from the wall while cables are routed, and the open wall plate gives access for cable management during installation. Horizontal and vertical adjustment then fine-tunes the display position.
Can I buy the Wall Mount SF680P in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
