SharpDigital SignageSKU PN-E659

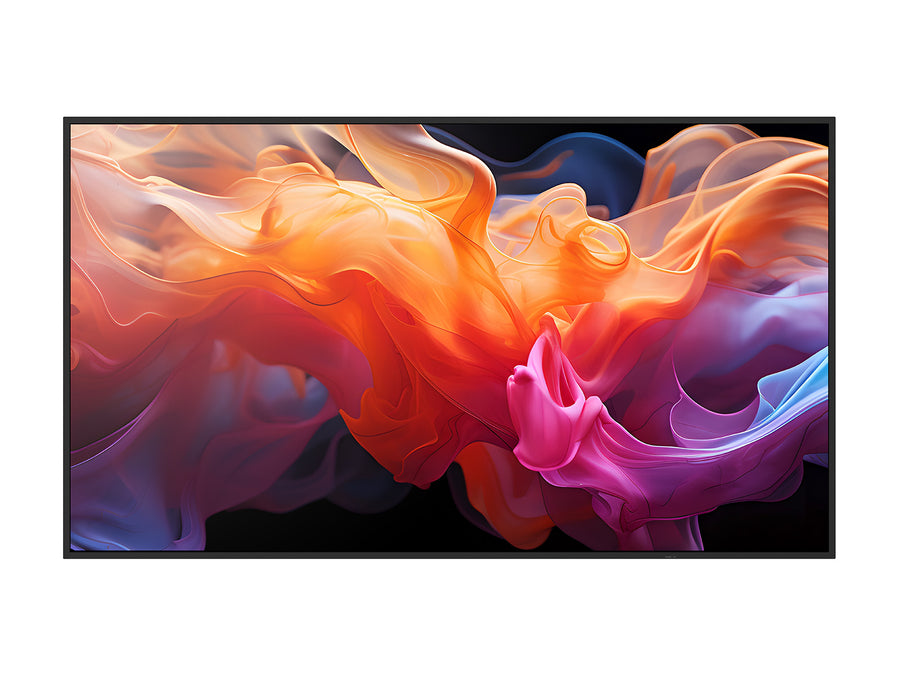

Sharp MultiSync E Series 65-inch 4K Large Format Display – PN-E659
The Sharp MultiSync E Series PN-E659 is a 65-inch 4K UHD large format display for meeting rooms and digital signage. It has a 3840 x 2160 IPS panel with 350 cd/m² brightness, a matte high-haze finish and 16/7 operation. Procure.ae supplies the Sharp PN-E659 in the UAE, with quotes, delivery and installation.
The Sharp PN-E659 uses an IPS panel with direct LED backlights, a 1200:1 typical contrast ratio and 178-degree horizontal and vertical viewing angles. Its 8 ms typical grey-to-grey response time and 1.07 billion colours (8-bit with FRC) suit presentations and video. Integrated media playback reads MP4 and TS video at up to 3840 x 2160 at 60 Hz from USB storage, along with MPG, WMV and MP3 files.
The PN-E659 is designed for meeting rooms and digital signage, with a 16/7 operating rating. Integration options include Q-Sys plug-in support, RS-232C control at 9600 bps, CEC and ARC over HDMI, and remote management through NaViSet Administrator 2. It supports landscape and portrait orientation, and Sharp lists a 400 x 400 mm VESA pattern with M6 holes for wall mounting.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Large Format Display
- 4K UHD Resolution
- Matte High-Haze Panel
- Integrated Media Playback
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Resolution
Native 3840 x 2160 resolution with 60 Hz input on HDMI and USB-C for crisp detail.
02
Matte High-Haze Panel
A professional matte finish with a haze level of 25 reduces reflections and glare.
03
Integrated Media Playback
The USB media player reads MP4, TS, WMV and MPG video and MP3 audio from USB storage.
04
USB-C Input
USB-C with DisplayPort Alt Mode 1.2, HDCP 2.2 and 15 W power for connected sources.
05
Remote Management and Scheduler
NaViSet Administrator 2 and a built-in scheduler manage displays across a site.
06
Q-Sys Integration
A Q-Sys plug-in supports integration with Q-SYS audio and control systems.
07
3-Year Warranty
The listed warranty runs three years and includes the backlight, with 16/7 operating hours.
Specifications
37 specificationsGeneral
Key FeaturesUSB media player, scheduler, powered USB port, HDMI ARC, HDMI-CEC, Q-Sys plug-in, remote management software, Energy Star 8.0
ModelPN-E659
TypeLarge Format Display
What's in the BoxDisplay, power cable, remote control, 2 × AAA batteries, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size10.8 mm (symmetrical)
Brightness350 nits
Color Depth1.07 billion (8-bit + FRC)
Contrast Ratio1,200:1
OrientationLandscape, Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio Out3.5 mm line out
Connectivity
EthernetLAN × 1 (100 Mbit/s)
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232C (9600 bps)
USB PortsUSB-A × 1
USB-C PortsUSB-C × 1
Power
Power Consumption125 W (typical)
Standby Power< 0.5 W
Physical
ColorBlack
Dimensions1453 x 829 x 59.7 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1635 x 987 x 160 mm
Shipping Weight23 kg
VESA Mount400 x 400 mm
Weight16.5 kg
Compliance
CertificationsCE, Energy Star 8, FCC Class B, RCM, UKCA, UL/C-UL or CSA, VCCI
Warranty3 years (incl. backlight)
Downloads
Manufacturer documents for the Sharp MultiSync E Series 65-inch 4K Large Format Display – PN-E659 — datasheets, manuals, drawings and certificates.
- SHARP PN E659 datasheet
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – MultiSync E Series
- Installation guide – MultiSync E Series
- Installation guide – MultiSync E Series
- Drawing – PN-E659
- Control protocol (RS232 / LAN) – MultiSync E Series
- Control protocol (RS232 / LAN) – MultiSync E Series
- Certificate / compliance – PN-E659
- Certificate / compliance – PN-E659
- Energy label – PN-E659
- Energy label – PN-E659
Questions
Can’t find your answer? Ask on WhatsApp
Can the Sharp PN-E659 be used in portrait orientation?
Yes. The PN-E659 supports both landscape and portrait orientation. Sharp lists a 400 x 400 mm VESA pattern with M6 holes, and accessories include a trolley, feet and several wall mount options.
What resolution and brightness does the Sharp PN-E659 have?
It has a native 3840 x 2160 (4K UHD) resolution and 350 cd/m² brightness. The typical contrast ratio is 1200:1, with 178-degree horizontal and vertical viewing angles and an 8 ms typical grey-to-grey response time.
Does the Sharp PN-E659 integrate with Q-Sys and room control systems?
Yes. It has a Q-Sys plug-in, HDMI CEC and ARC support, and RS-232C control at 9600 bps. Remote management is available through NaViSet Administrator 2, which Sharp lists as a free download.
What warranty does the Sharp PN-E659 include?
The PN-E659 includes a 3-year warranty that covers the backlight, according to Sharp's specifications. Power consumption is listed at 125 W typical and below 0.5 W in power-saving mode, and the display is rated for 16/7 operation.
Is the Sharp PN-E659 suitable for a meeting room?
It is designed for meeting rooms, with HDMI and USB-C inputs for presentation sources and a 3.5 mm audio output. Sharp does not list a recommended room size, so ask for a layout check when you request a quote.
