SharpDigital SignageSKU PN-E509

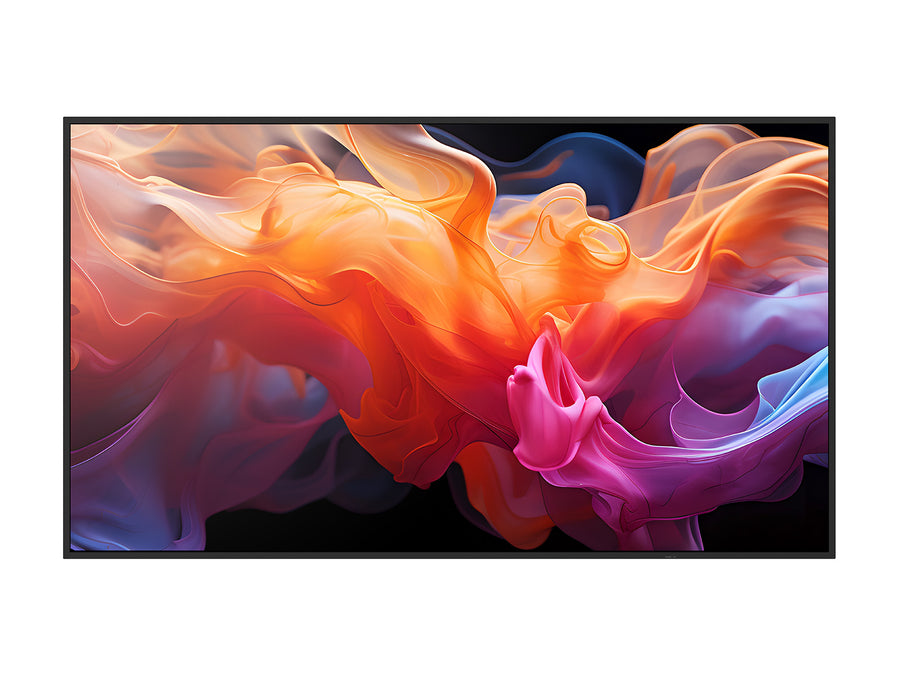

Sharp MultiSync E Series 50-inch Digital Signage Display – PN-E509
The Sharp MultiSync E Series PN-E509 is a 50-inch 4K UHD digital signage display with a VA panel. It offers a 4,000:1 contrast ratio, 350 nits brightness and 16/7 operation. Procure.ae supplies the PN-E509 in the UAE, with quotes, delivery and installation across the country.
The PN-E509 uses a VA panel with direct LED backlighting and a native 3840 x 2160 resolution. The manufacturer lists 350 nits brightness, a typical contrast ratio of 4,000:1 and an 8 ms grey-to-grey response time at 60 Hz. Its viewing angle is 178° horizontal and vertical, and the panel supports landscape and portrait orientation. The manufacturer lists a haze level of 25 percent and a 3-year warranty that includes the backlight.
The display suits meeting rooms, corporate communication and digital signage, according to the manufacturer. It has two HDMI inputs with UHD 60 Hz and HDCP 2.2, a USB-C port with DP Alt Mode 1.2 and 15 W, and a 100 Mbit/s LAN port. Q-Sys Plug-in support and NaViSet Administrator 2 remote management are listed. Wall mounting uses a 200 x 200 mm VESA pattern, and wall mount and trolley accessories are listed by the manufacturer.
Screen Size
50 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
- 4K UHD panel
- High contrast VA panel
- Brightness of 350 nits
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
Native 3840 x 2160 resolution, with supported inputs up to 4096 x 2160.
02
High contrast VA panel
Typical contrast ratio of 4,000:1, per the manufacturer.
03
Brightness of 350 nits
350 nits brightness with a direct LED backlight.
04
16/7 operation
Rated by the manufacturer for 16 hours a day, 7 days a week.
05
Integrated media playback
USB media player for MP4, TS, WMV and MPG video.
06
Connectivity
Two HDMI inputs, USB-C with DP Alt Mode 1.2, LAN and RS-232C.
07
Q-Sys integration
Q-Sys Plug-in listed by the manufacturer.
08
Warranty
3 years, including the backlight.
Specifications
33 specificationsGeneral
Key Features4K UHD VA panel, 4,000:1 contrast, 16/7 operation, USB media player, Q-Sys plug-in, NaViSet remote management, landscape and portrait
ModelPN-E509
TypeDigital Signage Display
What's in the BoxDisplay, remote control, 2 AAA batteries, power cable, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size10.8 mm (symmetrical)
Brightness350 nits
Contrast Ratio4,000:1
Display TypeLarge Format Display
OrientationLandscape and portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size50 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Audio Out3.5 mm line out
Connectivity
Ethernet100 Mbit/s
HDMI Inputs2 (UHD 60 Hz, HDCP 2.2)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, USB-C × 1, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
USB-C Ports1 (video input, DP Alt Mode 1.2, 15 W)
Power
Power Consumption99 W (typical)
Physical
ColorBlack
Dimensions1,120 x 641 x 59.9 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm
Weight9.2 kg
Compliance
CertificationsCE, Energy Star 8, FCC Class B, RCM, UKCA, UL/C-UL or CSA, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Sharp MultiSync E Series 50-inch Digital Signage Display – PN-E509 — datasheets, manuals, drawings and certificates.
- Datasheet – PN-E509
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – MultiSync E Series
- Installation guide – MultiSync E Series
- Installation guide – MultiSync E Series
- Drawing – PN-E509
- Control protocol (RS232 / LAN) – MultiSync E Series
- Control protocol (RS232 / LAN) – MultiSync E Series
- Certificate / compliance – PN-E509
- Certificate / compliance – PN-E509
- Energy label – PN-E509
- Energy label – PN-E509
Questions
Can’t find your answer? Ask on WhatsApp
Is the PN-E509 a 4K display?
Yes. The PN-E509 has a native resolution of 3840 x 2160 (4K UHD), and the manufacturer lists 4096 x 2160 among its supported input resolutions. Its VA panel gives a typical contrast ratio of 4,000:1.
Can it play content from a USB drive?
Yes. The manufacturer lists a USB media player with USB 2.0 storage in FAT16 and FAT32 formats. It plays MP4 and TS video with HEVC/H.265 support up to 3840 x 2160 at 60 Hz, and MP3 audio at up to 320 kbit/s.
Will a 50-inch display suit a large meeting room?
The manufacturer's specifications do not state a recommended room size. The 50-inch panel is listed for meetings and digital signage, so Procure.ae can advise on viewing distance and placement for your room.
Can it be wall mounted?
Yes. It uses a 200 x 200 mm VESA pattern with four M6 holes. The manufacturer lists wall mounts PDW S 32-65 L and PDW S 32-65 P as accessories, and installation can be arranged with Procure.ae when you request a quote.
Can it be managed remotely?
Yes. NaViSet Administrator 2 is listed for remote management and is available as a free download. The display also has a 100 Mbit/s LAN port and an RS-232C port at 9600 bps for control.
