SharpDigital SignageSKU PN-E329

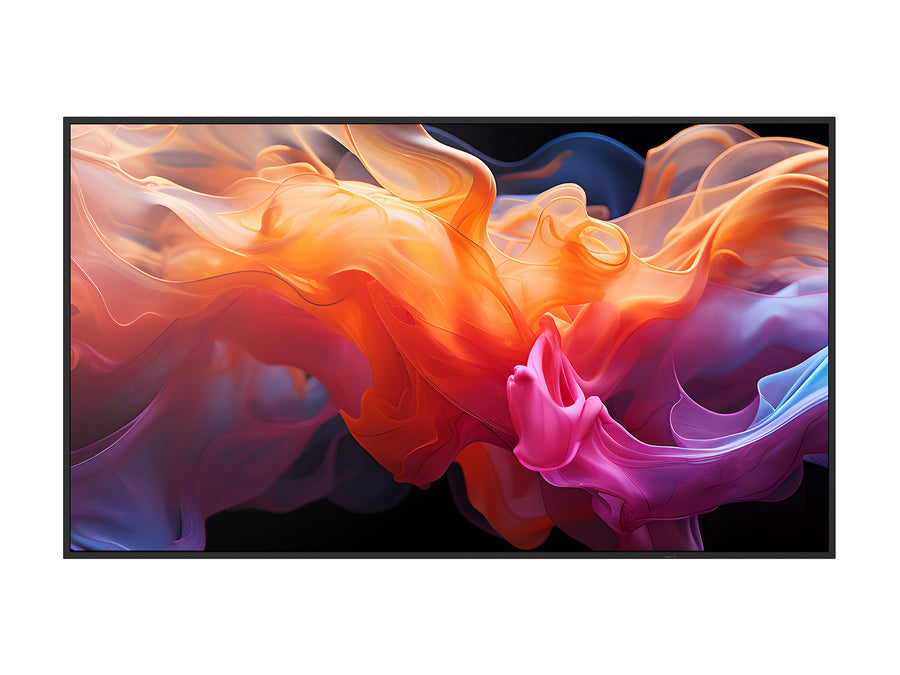

Sharp MultiSync E Series 32-inch Digital Signage Display – PN-E329
The Sharp MultiSync E Series PN-E329 is a 32-inch Full HD digital signage display for meeting rooms and digital signage. It offers 350 nits brightness, a 1,200:1 contrast ratio and 16/7 operation. Procure.ae supplies the PN-E329 in the UAE, with quotes, delivery and installation across the country.
The PN-E329 uses an IPS panel with direct LED backlighting and a native resolution of 1920 x 1080. The manufacturer lists 350 nits brightness, a typical contrast ratio of 1,200:1, a viewing angle of 178° horizontal and vertical, and an 8 ms typical response time. The panel supports landscape and portrait orientation and plays video and audio from USB storage, including MP4, TS and WMV files. The display is rated for 16/7 operation, and its 3-year warranty includes the backlight.
The display suits meeting rooms, retail signage and corporate communication, according to the manufacturer. It has two HDMI inputs with UHD 60 Hz and HDCP 2.2, a USB-C port with DP Alt Mode 1.2 and 15 W power, and a 100 Mbit/s LAN port. Q-Sys Plug-in support and NaViSet Administrator 2 remote management are listed. Wall mounting uses a 200 x 200 mm VESA pattern.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Type
Digital Signage Display
- Full HD resolution
- IPS panel
- 16/7 operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD resolution
Native 1920 x 1080 panel, with supported inputs up to 3840 x 2160.
02
IPS panel
Direct LED backlight with 350 nits brightness.
03
16/7 operation
Rated by the manufacturer for 16 hours a day, 7 days a week.
04
Integrated media playback
USB media player supporting MP4, TS, WMV and MPG video.
05
Connectivity
Two HDMI inputs, USB-C with DP Alt Mode 1.2, LAN and RS-232C.
06
Q-Sys integration
Q-Sys Plug-in listed by the manufacturer.
07
Remote management
NaViSet Administrator 2 is listed, as a free download.
08
Warranty
3 years, including the backlight.
Specifications
33 specificationsGeneral
Key FeaturesFull HD panel, IPS with direct LED backlight, 16/7 operation, USB media player, Q-Sys plug-in, NaViSet remote management, landscape and portrait
ModelPN-E329
TypeDigital Signage Display
What's in the BoxDisplay, remote control, 2 AAA batteries, power cable, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size10.5 mm (symmetrical)
Brightness350 nits
Contrast Ratio1,200:1
Display TypeLarge Format Display
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Audio Out3.5 mm line out
Connectivity
Ethernet100 Mbit/s
HDMI Inputs2 (UHD 60 Hz, HDCP 2.2)
Input Voltage100–240 V AC, 50/60 Hz

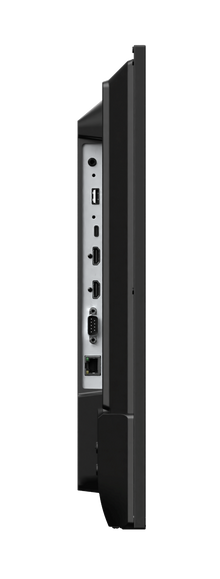

PortsHDMI In × 2, USB-C × 1, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
USB-C Ports1 (video input, DP Alt Mode 1.2, 15 W)
Power
Power Consumption43 W (shipping)
Physical
ColorBlack
Dimensions724 x 418 x 59 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm
Weight4.7 kg
Compliance
CertificationsCE, Energy Star 8, FCC Class B, RCM, UKCA, UL/C-UL or CSA, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Sharp MultiSync E Series 32-inch Digital Signage Display – PN-E329 — datasheets, manuals, drawings and certificates.
- Datasheet – PN-E329
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – MultiSync E Series
- Installation guide – MultiSync E Series
- Installation guide – MultiSync E Series
- Drawing – PN-E329
- Control protocol (RS232 / LAN) – MultiSync E Series
- Control protocol (RS232 / LAN) – MultiSync E Series
- Certificate / compliance – PN-E329
- Energy label – PN-E329
- Energy label – PN-E329
Questions
Can’t find your answer? Ask on WhatsApp
Is the PN-E329 a 4K display?
No. The PN-E329 has a native resolution of 1920 x 1080 (Full HD). The manufacturer lists 3840 x 2160 among its supported input resolutions, so 4K sources are shown, but the panel's native resolution is Full HD.
Can it play content from a USB drive?
Yes. The manufacturer lists a USB media player with USB 2.0 storage in FAT16 and FAT32 formats. It plays MPG, MP4, TS and WMV video, and MP3 and AAC audio, which makes it suitable for simple looping content.
Can it be wall mounted?
Yes. It has a 200 x 200 mm VESA mounting pattern with four M6 holes, and the manufacturer lists the PDW T XS wall mount as an accessory. Installation can be arranged with Procure.ae when you request a quote.
Can it be managed remotely?
Yes. The manufacturer lists NaViSet Administrator 2 for remote management, available as a free download. The display also has a LAN port at 100 Mbit/s and an RS-232C port at 9600 bps for control.
Is it rated for daily operation?
Yes. The manufacturer rates the PN-E329 for 16/7 operation, meaning 16 hours a day, 7 days a week. Its operating temperature range is 0 to 40 °C, and its operating humidity range is 20 to 80 percent.
