SharpMeeting Room SolutionsSKU Wall Mount L20PNWALL90EU

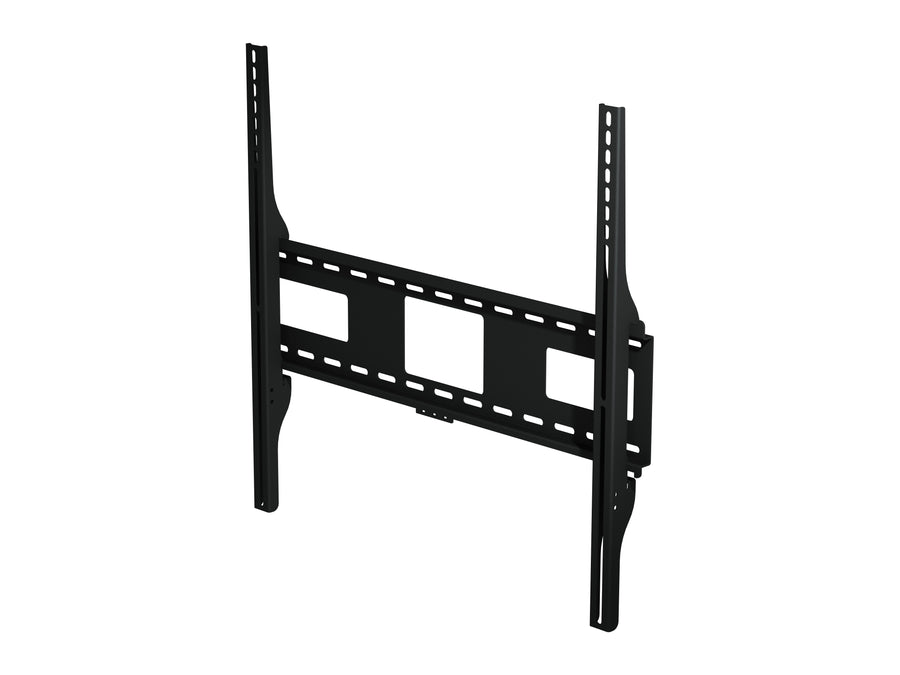

Sharp Low-Profile Display Wall Mount – Wall Mount L20PNWALL90EU
The Sharp Wall Mount L20PNWALL90EU is a low-profile wall mount for displays from 50 to 90 inches, rated for up to 102 kg. It supports landscape and portrait orientation on a 600 x 600 mm VESA pattern and allows horizontal and vertical levelling after installation. Procure.ae, an authorised reseller, supplies it across the UAE.
The mount measures 675 x 626 x 46 mm (W x H x D) and weighs 3.3 kg, so it sits close to the wall. Horizontal and vertical adjustment allows levelling and side-to-side positioning after installation, which helps place the display precisely. The open wall plate gives full wall access for electrical and cable management. The display attaches with adapters that hook onto the wall plate, which makes for a quick and secure installation.
Type
Wall Mount
Weight
3.3 kg
- Low-profile design
- Level adjustment
- Open wall plate
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Low-profile design
46 mm depth and 3.3 kg weight.
02
Level adjustment
horizontal and vertical levelling after installation.
03
Open wall plate
full wall access for electrical and cable management.
04
Load rating
holds displays up to 102 kg.
05
VESA and orientation
600 x 600 mm VESA, landscape or portrait.
06
Five-year warranty
the manufacturer warranty is 5 years.
Specifications
15 specificationsGeneral
Key FeaturesLow-profile design, horizontal and vertical adjustment, landscape and portrait orientation, 102 kg max load, 600 x 600 mm VESA, open wall plate, 5-year warranty
ModelWall Mount L20PNWALL90EU
TypeWall Mount
Display
OrientationLandscape and portrait
Supported Screen Sizes50 to 90 inch
Physical
AdjustabilityHorizontal and vertical adjustment
ColorBlack
Dimensions675 x 626 x 46 mm
Load Capacity102 kg
MountingWall mount, single display
Shipping Dimensions806 x 216 x 75 mm
Shipping Weight3.8 kg
VESA Mount600 x 600 mm
Weight3.3 kg
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Sharp Low-Profile Display Wall Mount – Wall Mount L20PNWALL90EU — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the Wall Mount L20PNWALL90EU support?
The mount is recommended for displays from 50 to 90 inches, with a maximum load of 102 kg and a 600 x 600 mm VESA pattern. The manufacturer states that the size range is a recommendation, so check the display's size, weight and VESA pattern before ordering.
Can the mount be used in portrait orientation?
Yes. The Wall Mount L20PNWALL90EU supports both landscape and portrait orientation. Confirm that the display uses a 600 x 600 mm VESA pattern, since that is the pattern listed for this mount.
Can the display be levelled after it is mounted?
Yes. Horizontal and vertical adjustment allows levelling and side-to-side positioning after installation. The open wall plate also gives access to the wall for cable management. This helps position the display precisely once it is on the wall.
Can I buy the Wall Mount L20PNWALL90EU in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
