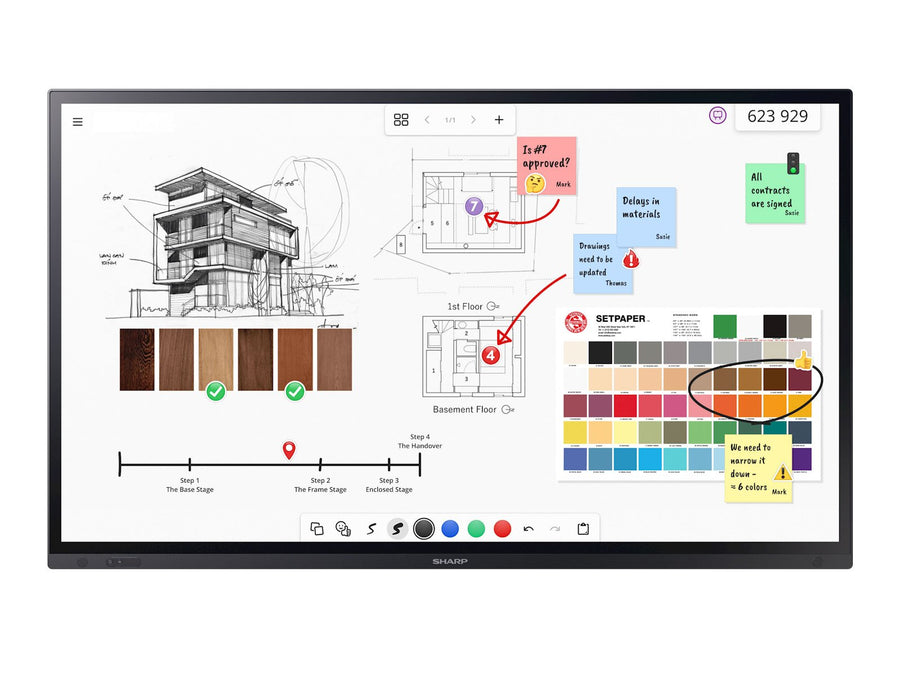

Sharp LA Series 65-inch 4K Interactive Flat Panel – PN-LA652

The Sharp PN-LA652 is a 65-inch 4K interactive flat panel for hybrid meetings, boardrooms and enterprise meeting rooms. It has an IPS panel with 450 nits brightness, 20-point multi-touch and an Intel SDM slot for corporate IT integration. Procure.ae, an authorised reseller, supplies the Sharp PN-LA652 across the UAE.

The PN-LA652 uses an IPS panel with direct LED backlights, 450 nits brightness and a typical 1,200:1 contrast ratio, with a 178° viewing angle and 10-bit colour depth. Its InGlass M5 touch technology supports real multi-touch up to 20 touches with finger, glove and stylus input, and palm rejection is included. The display can be set face up, in landscape or in portrait, and supports multi-board side-by-side installations for up to three displays. Its 24/7 operating hours and 190 W typical power consumption are listed by the manufacturer.

The PN-LA652 suits hybrid meetings, boardrooms and high-end meeting rooms where IT security and enterprise integration matter. Its 1493.5 x 896.1 x 90.7 mm body weighs 49 kg and mounts on a 600 x 400 mm VESA pattern (FDMI, M8 screws). An Intel SDM slot accepts Intel Smart Display Modules, and pre-installed Sharp Meeting Launcher gives quick access to favourite apps and video conferencing platforms. AirServer provides wireless screen sharing. Compared with the PN-L652B, the LA series adds an Intel SDM slot, IP6x front ingress protection and 24/7 operating hours.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
In-glass touch
  • Hybrid meeting touch
  • 4K UHD IPS panel
  • Colour depth
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Hybrid meeting touch
InGlass M5 touch with up to 20 touches and palm rejection
02
4K UHD IPS panel
3840 x 2160 at 16:9 with 450 nits brightness
03
Colour depth
10-bit colour and 68% DCI colour gamut
04
Intel SDM slot
Accepts Intel Smart Display Modules up to 66 W
05
Built-in sensors
Ambient light, temperature and presence sensors with programmable actions
06
Hybrid connectivity
USB-C input with 65 W power, two HDMI inputs and a DisplayPort input
07
Flexible installation
Face up, landscape or portrait, with side-by-side use for up to three displays

Specifications

36 specifications
General
ControlsCrestron V2, HDMI CEC, HTTP browser, scheduled timer
Key FeaturesInGlass M5 touch, 20-point multi-touch, 4K UHD IPS panel, Intel SDM slot, ambient light, temperature and presence sensors, face-up and portrait use, Crestron CCV2 compatible
ModelPN-LA652
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size32.3 mm (bottom), 4.8 mm (left, right, top)
Brightness450 nits
Color Depth10-bit (1.073 billion colours)
Color Gamut68% DCI
Contrast Ratio1,200:1
OrientationFace up, landscape, portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyIn-glass touch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid, Linux, Windows, Mac OS (single touch)
Storage Conditions-20 to 60 °C, 10% to 80% RH
Audio
AudioIntegrated speakers, 2 × 10 W
Connectivity
ExpansionIntel SDM slot (Large and Small modules up to 66 W)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 1 (65 W), USB-B × 1 (touch), USB 3.2 Type-A × 2, USB 2.0 service × 1, LAN 100 Mbit/s, RS-232C × 1, 3.5 mm audio out × 1
Power
Power Consumption190 W (typical)
Physical
Dimensions1493.5 x 896.1 x 90.7 mm
Duty Cycle24/7
MaterialMetal
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount600 x 400 mm
Weight49 kg
Compliance
CertificationsCE, EMC Class B, Energy Star 8, FCC Class B, PSB, RCM, RoHS, SASO, UKCA, UL/C-UL
IP RatingIP6x (front), IP2x (back)
Warranty3 years (backlight included)

Questions

Can’t find your answer? Ask on WhatsApp

Does the Sharp PN-LA652 support touch with a finger, a glove or a stylus?
Yes. The PN-LA652 supports real multi-touch up to 20 touches, with finger, glove and stylus input of 2 mm or more. Windows Ink is supported, and palm rejection is listed as included, which helps when writing with a hand resting on the screen.
Can the PN-LA652 be used face up or in a side-by-side wall?
Yes. The PN-LA652 supports face-up, landscape and portrait orientation, which allows table-top, tilted desk or multi-board side-by-side installations for up to three displays. Wall mounting uses a 600 x 400 mm VESA pattern with FDMI and M8 screws.
What is the Intel SDM slot on the PN-LA652?
The PN-LA652 has an Intel SDM slot that accepts Intel Smart Display Modules, Large and Small, up to 66 W. The slot allows corporate IT systems to be integrated safely, and the display also comes with Sharp Meeting Launcher and AirServer pre-installed.
Which control and conferencing systems does the PN-LA652 work with?
The PN-LA652 is Crestron CCV2 certified, verified for Cisco Collaboration devices and tested compatible with Barco ClickShare. It supports Crestron V2, HDMI CEC, an HTTP browser and scheduled timers, and can be managed with NaViSet Administrator 2 and automated email alerts.
Can a notebook connect to the PN-LA652 with one cable?
Yes. The USB-C 1 input carries touch signal, 4K video at 60 Hz, USB 2.0 or 3.2 data and 65 W of power on one cable. The manufacturer describes this as a secure way to connect a user's own notebook in hybrid meetings.
