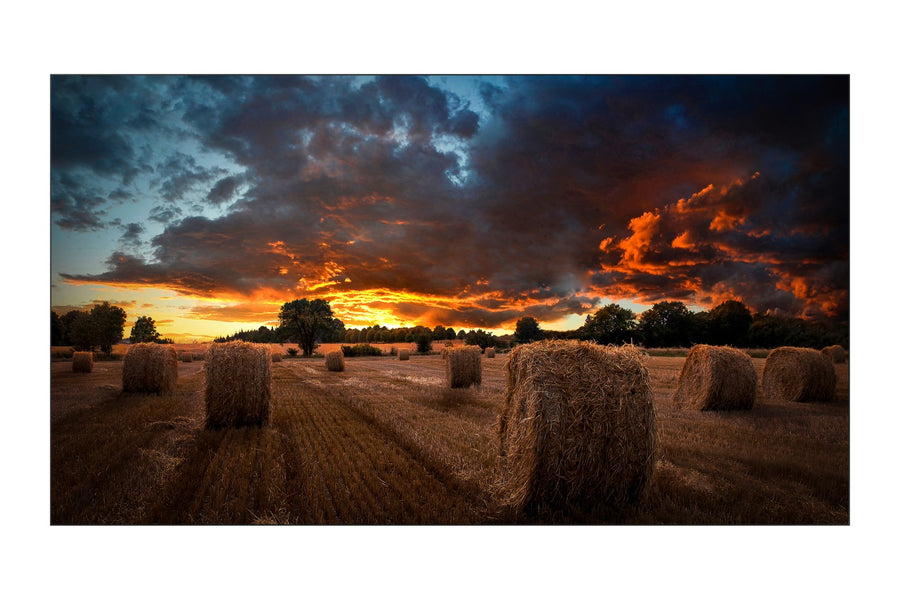

Samsung VM55T-U 55-inch ultra narrow bezel video wall displaySamsung
Video WallsSKU VM55T-U

Samsung VMT-U Ultra Narrow Bezel 55-inch Video Wall Display – VM55T-U

The Samsung VM55T-U is a 55-inch Direct LED video wall display in the VMT-U Ultra Narrow Bezel range, for signage and business display walls. It offers 1920 x 1080 Full HD resolution, up to 500 nits brightness, IP5X dust resistance and bezels of 2.25 mm and 1.25 mm. Procure.ae supplies the Samsung VM55T-U across the UAE.

The Samsung VM55T-U is a 55-inch video wall display with a Direct LED panel at 1920 x 1080 (Full HD) resolution. Brightness is listed at up to 500 nits, with a 1,200:1 contrast ratio and 45,000:1 dynamic contrast. Viewing angles are 178° horizontal and 178° vertical, the response time is 8 ms, and colour gamut is listed at 72%. The bezel measures 2.25 mm on the upper/left edges and 1.25 mm on the right/bottom edges. The manufacturer's text cites IP5X dust resistance, and the set weighs 19.4 kg.

The VM55T-U suits signage walls and business display walls on a VESA 600 x 400 mm mount pattern, with no stand supplied. Its connections are two HDMI inputs, one DisplayPort input, one DVI input and one USB port, with an RJ45 connection and RS232 and IR control. MagicInfo daisychain video wall support is listed. Compared with the VM55T-E, it has a lower dynamic contrast of 45,000:1 against 500,000:1, and wider bezels of 2.25 mm and 1.25 mm against 0.9 mm. The manufacturer also lists the codes LH55VMTUBGBXEN and LH55VMTUBGBXUE.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
  • Direct LED panel
  • Brightness
  • Ultra-narrow bezel
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Direct LED panel
55-inch screen at 1920 x 1080 (Full HD) resolution.
02
Brightness
Listed at up to 500 nits.
03
Ultra-narrow bezel
2.25 mm and 1.25 mm bezels on opposite edge pairs.
04
Dust resistance
IP5X dust resistance, as cited in the manufacturer's text.
05
Contrast and viewing
1,200:1 contrast, 45,000:1 dynamic contrast and 178° viewing angles.
06
Video wall support
MagicInfo daisychain video wall support for multi-panel setups.
07
Video inputs
Two HDMI, one DisplayPort, one DVI and one USB input.
08
Wall mounting
VESA 600 x 400 mm mount pattern, 19.4 kg set weight, no stand supplied.

Specifications

25 specifications
General
Key FeaturesDirect LED panel, 2.25 mm and 1.25 mm bezels, 500 nits brightness, Full HD 1920 x 1080, IP5X dust resistance, MagicInfo daisychain video wall support, 178° viewing angle
ModelVM55T-U
TypeVideo Wall Display
Display
Bezel Size2.25 mm (U/L), 1.25 mm (R/B)
Brightness500 nits
Color Gamut72%
Contrast Ratio1,200:1 (dynamic 45,000:1)
Panel TechnologyDirect LED
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DVI In × 1, USB × 1, RJ45 In, Video Out, IR In, Audio In
Serial PortRS232 In, RS232 Out (stereo mini jack)
Power
Power Consumption220 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1211.5 x 682.3 x 70 mm
FinishGlossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight19.4 kg
Compliance
CertificationsEMC Class A, Safety 60950-1
IP RatingIP5X

Downloads

Manufacturer documents for the Samsung VMT-U Ultra Narrow Bezel 55-inch Video Wall Display – VM55T-U — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Samsung VM55T-U used for?
The Samsung VM55T-U is a 55-inch Direct LED video wall display for signage walls and business display walls. Its 2.25 mm and 1.25 mm bezels and Full HD 1920 x 1080 panel suit multi-panel walls, and the manufacturer's text cites IP5X dust resistance.
What resolution and brightness does the Samsung VM55T-U offer?
It offers 1920 x 1080 (Full HD) resolution and is listed at up to 500 nits brightness. The panel also has a 1,200:1 contrast ratio, 45,000:1 dynamic contrast, 178° viewing angles and an 8 ms response time, with 72% colour gamut.
Can the Samsung VM55T-U be wall mounted?
Yes. The VM55T-U has a VESA 600 x 400 mm mount pattern and a set weight of 19.4 kg. It is not supplied with a stand, so a VESA-compatible wall or ceiling mount is needed. Confirm the bracket load and fixings with your installer before fitting.
Can several VM55T-U panels be linked into one video wall?
Yes. The manufacturer lists MagicInfo daisychain video wall support, and the panel has an RJ45 connection, RS232 in and out, and IR input for control. Confirm the panel layout, cable routing and controller with the Procure.ae team before ordering.
Which video inputs does the VM55T-U have?
It has two HDMI inputs, one DisplayPort input, one DVI input and one USB port. An audio input and a stereo mini jack audio output are also listed, along with a video output.
