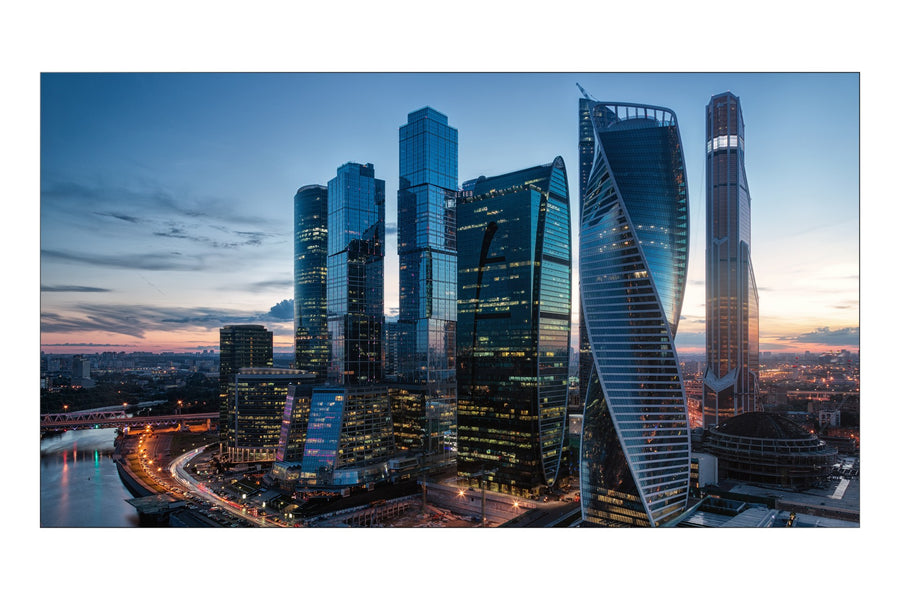

Samsung VM55T-E 55-inch extreme narrow bezel video wall displaySamsung
Video WallsSKU VM55T-E

Samsung VMT-E Extreme Narrow Bezel 55-inch Video Wall Display – VM55T-E

The Samsung VM55T-E is a 55-inch Direct LED video wall display in the VMT-E Extreme Narrow Bezel range, for control rooms and signage walls. It offers 1920 x 1080 Full HD resolution, up to 500 nits brightness and 0.9 mm bezels, with MagicInfo daisychain video wall support. Procure.ae supplies the Samsung VM55T-E across the UAE.

The Samsung VM55T-E is a 55-inch video wall display with a Direct LED panel at 1920 x 1080 (Full HD) resolution. Brightness is listed at up to 500 nits, with a 1,200:1 contrast ratio and 500,000:1 dynamic contrast. Viewing angles are 178° horizontal and 178° vertical, the response time is 8 ms, and colour gamut is listed at 72%. The glossy frame carries 0.9 mm bezels on the upper/left and right/bottom edges, which keeps seams narrow across a multi-panel wall. The set is rated at 220 W in on mode and weighs 19.4 kg.

The VM55T-E suits multi-panel video walls on a VESA 600 x 400 mm mount pattern, with no stand supplied. Its connections are two HDMI inputs, one DisplayPort input, one DVI input and one USB port, with an RJ45 connection and RS232 and IR control. MagicInfo daisychain video wall support is listed for multi-panel setups. Compared with the VH55T-E, this model is listed at a lower maximum brightness, 500 nits against 700 nits, and at 220 W in on mode against 250 W. The manufacturer also lists the code LH55VMTEBGBXEN.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
  • Direct LED panel
  • Brightness
  • Extreme narrow bezel
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Direct LED panel
55-inch screen at 1920 x 1080 (Full HD) resolution.
02
Brightness
Listed at up to 500 nits.
03
Extreme narrow bezel
0.9 mm bezels on the upper/left and right/bottom edges.
04
Contrast and viewing
1,200:1 contrast, 500,000:1 dynamic contrast and 178° viewing angles.
05
Video wall support
MagicInfo daisychain video wall support for multi-panel setups.
06
Video inputs
Two HDMI, one DisplayPort, one DVI and one USB input.
07
Control ports
RJ45 connection, RS232 in and out, and IR input.
08
Wall mounting
VESA 600 x 400 mm mount pattern, 19.4 kg set weight, no stand supplied.

Specifications

24 specifications
General
Key FeaturesDirect LED panel, 0.9 mm extreme narrow bezels, 500 nits brightness, Full HD 1920 x 1080, MagicInfo daisychain video wall support, 178° viewing angle, 8 ms response time
ModelVM55T-E
TypeVideo Wall Display
Display
Bezel Size0.9 mm (U/L), 0.9 mm (R/B)
Brightness500 nits
Color Gamut72%
Contrast Ratio1,200:1 (dynamic 500,000:1)
Panel TechnologyDirect LED
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DVI In × 1, USB × 1, RJ45 In, Video Out, IR In, Audio In
Serial PortRS232 In, RS232 Out (stereo mini jack)
Power
Power Consumption220 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1211.5 x 682.3 x 70 mm
FinishGlossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight19.4 kg
Compliance
CertificationsEMC Class A, Safety 60950-1

Downloads

Manufacturer documents for the Samsung VMT-E Extreme Narrow Bezel 55-inch Video Wall Display – VM55T-E — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Samsung VM55T-E used for?
The Samsung VM55T-E is a 55-inch video wall display for multi-panel walls in control rooms, signage and corporate lobbies. Its 0.9 mm bezels and 1920 x 1080 (Full HD) Direct LED panel let several panels work together as one wall.
What resolution and brightness does the Samsung VM55T-E offer?
It offers 1920 x 1080 (Full HD) resolution and is listed at up to 500 nits brightness. The panel also has a 1,200:1 contrast ratio, 500,000:1 dynamic contrast, 178° viewing angles and an 8 ms response time, with 72% colour gamut.
Can the Samsung VM55T-E be wall mounted?
Yes. The VM55T-E has a VESA 600 x 400 mm mount pattern and a set weight of 19.4 kg. It is not supplied with a stand, so a VESA-compatible wall or ceiling mount is needed. Confirm the bracket load and fixings with your installer before fitting.
Can several VM55T-E panels be linked into one video wall?
Yes. The manufacturer lists MagicInfo daisychain video wall support, and the panel has an RJ45 connection, RS232 in and out, and IR input for control. Confirm the panel layout, cable routing and controller with the Procure.ae team before ordering.
Which video inputs does the VM55T-E have?
It has two HDMI inputs, one DisplayPort input, one DVI input and one USB port. An audio input and a stereo mini jack audio output are also listed, along with a video output.
Can I buy the VM55T-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
