SamsungVideo WallsSKU UH55F-E
Samsung UHF-E Series 55-inch Video Wall Display – UH55F-E

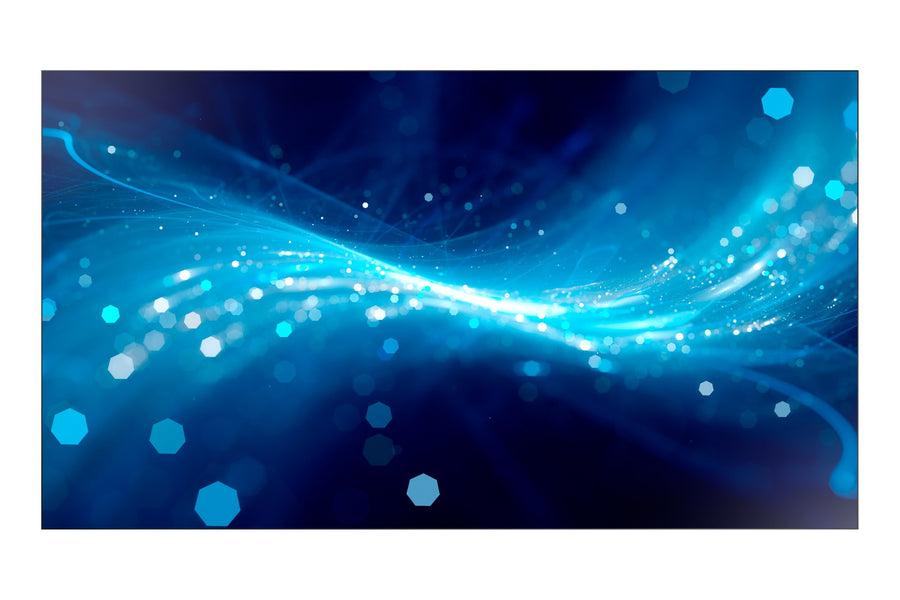

The Samsung UH55F-E is a 55-inch video wall display for control rooms, lobbies and retail spaces. It has a 1920 x 1080 D-LED DID panel rated at up to 700 nits, a 4,000:1 contrast ratio and an 8 ms response time. Procure.ae supplies the UH55F-E in the UAE for businesses, with quotes, delivery and installation.
The UH55F-E pairs a 1920 x 1080 (Full HD) D-LED DID panel with 8-bit color, 16.7 million colors and a 72% color gamut. Brightness is rated at up to 700 nits, with a 4,000:1 contrast ratio and MEGA DCR dynamic contrast. The panel has an 8 ms response time and 178-degree horizontal and vertical viewing angles. Power draw is 180 W typical and 297 W maximum, with less than 0.5 W in off and sleep modes.
The UH55F-E measures 1211.5 x 682.3 x 96.3 mm and weighs 21.0 kg, with a 600 x 400 mm VESA pattern for wall mounting. Inputs include two HDMI, one DisplayPort, one DVI, one composite and one D-Sub RGB input. Control is through RS-232 in and out, and RJ45 and IR in and out. The unit runs on 100 to 240 V AC at 50/60 Hz and operates from 0 to 40 °C at 10 to 80% humidity, non-condensing.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall Display
- Full HD panel
- High brightness
- MEGA dynamic contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
1920 x 1080 resolution with 8-bit (16.7 million) color.
02
High brightness
Rated at up to 700 nits with a 4,000:1 contrast ratio.
03
MEGA dynamic contrast
MEGA DCR dynamic contrast and an 8 ms response time.
04
Control ports
RS-232 in and out, RJ45 in and IR in and out.
05
Wall-mount pattern
600 x 400 mm VESA pattern for standard brackets.
06
Multiple inputs
Two HDMI, one DisplayPort, one DVI, composite and D-Sub.
Specifications
25 specificationsGeneral
Key Features55-inch D-LED DID panel, 1920 x 1080 resolution, 700 nits, 4,000:1 contrast, MEGA DCR, 600 x 400 mm VESA, RS-232 and RJ45 control
ModelUH55F-E
TypeVideo Wall Display
What's in the BoxQuick setup guide, warranty card, DisplayPort cable, stereo-to-DB9 cable, power cord, remote control, batteries
Display
Brightness700 nits
Color Depth8-bit (16.7 million colors)
Color Gamut72%
Contrast Ratio4,000:1
Display TypeD-LED DID
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Audio OutStereo mini jack
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, DVI In × 1, Composite In × 1, RGB D-Sub In × 1, USB × 1, RS-232 In/Out, RJ45 In, IR In/Out
Power
Power Consumption180 W (typical), 297 W (maximum)
Physical
Dimensions1211.5 x 682.3 x 96.3 mm
Operating Humidity10% to 80% (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1355 x 809 x 320 mm
Shipping Weight27.4 kg
VESA Mount600 x 400 mm
Weight21.0 kg
Compliance
CertificationsFCC, CE, VCCI, KCC, BSMI, C-Tick, CCC, UL, CSA, TUV, KC
Downloads
Manufacturer documents for the Samsung UHF-E Series 55-inch Video Wall Display – UH55F-E — datasheets, manuals, drawings and certificates.
- User manual – Samsung UHF-E, UMH-E, UHN-E, UMN-E / Video Wall UHF-E Series
- User manual – Samsung UHF5 Series / Video Wall UHF-E Series
- User manual – Samsung UHF-E, UMH-E, UHN-E, UMN-E / Video Wall UHF-E Series (Arabic)
- User manual – Samsung UHF5 Series / Video Wall UHF-E Series (Arabic)
- Quick start guide – UH55F-E
- Quick start guide – Samsung UHF-E, UMH-E, UHN-E, UMN-E / Video Wall UHF-E Series
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the UH55F-E have?
The UH55F-E has 1920 x 1080 (Full HD) resolution and is rated at up to 700 nits. Its contrast ratio is 4,000:1 with MEGA DCR, and the manufacturer specifies an 8 ms response time.
Can the UH55F-E be used in a larger video wall?
Yes. The unit has RS-232 in and out, RJ45 in and IR in and out, which suit control of a multi-panel setup. The manufacturer's specifications do not state a DisplayPort loop-out for this model, so confirm the layout and cabling with Procure.ae before ordering.
How is the UH55F-E mounted?
It has a 600 x 400 mm VESA pattern, and the manufacturer lists a mount option for this model. It measures 1211.5 x 682.3 x 96.3 mm and weighs 21.0 kg, so confirm the bracket's load rating before installation. Procure.ae can arrange installation across the UAE.
Which inputs does the UH55F-E have?
It has two HDMI inputs, one DisplayPort input, one DVI input, one composite input, one D-Sub RGB input and one USB port. Audio uses a stereo mini jack output, and IR and RS-232 control are included.
Can I buy the UH55F-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
