SamsungDigital SignageSKU QM98N

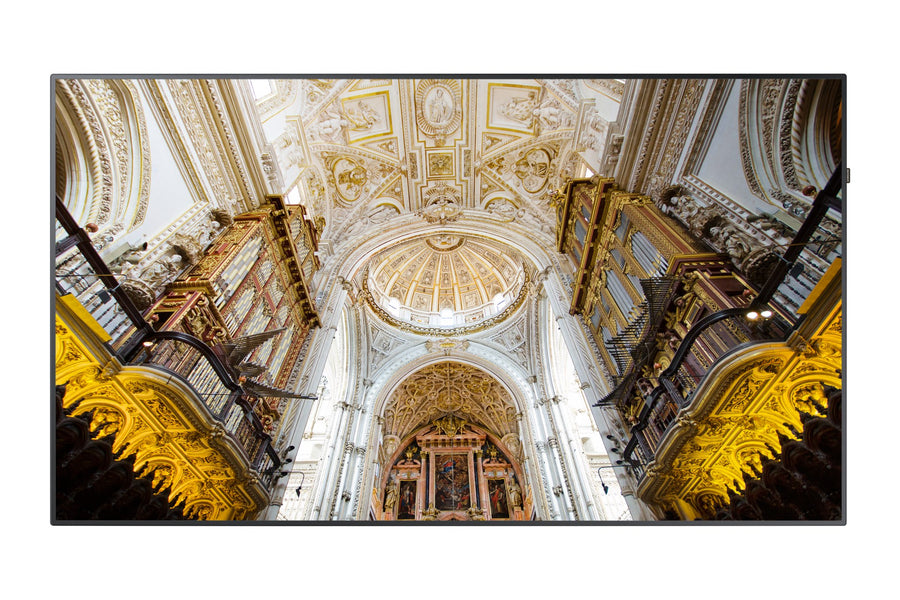

Samsung QMN Series 98-inch 4K UHD Digital Signage Display – QM98N
The Samsung QM98N is a 98-inch 4K UHD digital signage display for lobbies, reception areas, retail floors and classrooms. It offers 3840 x 2160 resolution, 500 nits typical brightness and MagicInfo daisy-chain video wall support. Procure.ae supplies the QM98N across the UAE.
The QM98N has a 98-inch panel with 3840 x 2160 (4K UHD) resolution, 500 nits typical brightness and a 4,000:1 contrast ratio. Its 178-degree horizontal and vertical viewing angles and 6 ms typical response time suit moving video. The panel is listed with a 72% colour gamut and a dynamic contrast setting called Mega Contrast. The set measures 2194.2 x 1249.8 x 75.3 mm, weighs 77.1 kg and has a VESA 900 x 600 mm mounting pattern.
The QM98N suits lobbies, meeting rooms, menu boards and campus information screens. Its inputs include HDMI, DisplayPort and DVI, and it has RS232C serial control, an RJ45 network port, USB ports, Wi-Fi and Bluetooth. MagicInfo daisy-chain support lets several units be linked into one video wall, and the 15.2 mm bezel suits tiled layouts.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- 4K UHD Panel
- Typical Brightness
- Fast Response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3840 x 2160 resolution on a 98-inch panel.
02
Typical Brightness
500 nits typical brightness with a 4,000:1 contrast ratio.
03
Fast Response
6 ms typical response time and 178-degree viewing angles.
04
Mega Contrast
dynamic contrast setting listed for the panel.
05
Video Wall Support
MagicInfo daisy-chain video wall support with a 15.2 mm bezel.
06
Connectivity
HDMI × 2, DisplayPort, DVI, two USB ports, RJ45 and RS232C control.
07
Wireless
Wi-Fi and Bluetooth listed for the display.
08
VESA Mounting
900 x 600 mm pattern for a 77.1 kg set.
Specifications
24 specificationsGeneral
Key Features4K UHD, 500 nits typical, 4,000:1 contrast, 6 ms response, MagicInfo video wall support, Wi-Fi, Bluetooth, RS232C control
ModelQM98N
TypeDigital Signage Display
Display
BacklightSlim direct LED
Bezel Size15.2 mm
Brightness500 nits (typical)
Color Gamut72%
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time6 ms (typical)
Screen Size98 inch
Viewing Angle178° (H) / 178° (V)
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, DVI In × 1, USB × 2, RS232C In and Out, RJ45 In, IR In, Audio In, Audio Out (stereo mini jack)
Wi-FiYes
Power
Power Consumption528 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions2194.2 x 1249.8 x 75.3 mm
Operating Humidity10% to 80% RH, non-condensing
Shipping Dimensions2500 x 1618 x 815 mm
Shipping Weight149.4 kg
VESA Mount900 x 600 mm
Weight77.1 kg
Downloads
Manufacturer documents for the Samsung QMN Series 98-inch 4K UHD Digital Signage Display – QM98N — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the Samsung QM98N have?
The QM98N has a 3840 x 2160 (4K UHD) resolution, 500 nits typical brightness and a 4,000:1 contrast ratio. Its viewing angles are 178 degrees horizontally and vertically, and its typical response time is 6 ms.
Can the QM98N be used in a video wall?
Yes. The QM98N supports MagicInfo daisy-chain video wall setups and has a 15.2 mm bezel. Plan the wall layout around the 2194.2 x 1249.8 mm set size (W x H) and the bezel width before installation.
How is the QM98N mounted?
The QM98N uses a VESA 900 x 600 mm mounting pattern. The set weighs 77.1 kg, so use a wall or stand rated for that load and confirm the mounting method with your installer.
Which inputs and control ports does the QM98N have?
The QM98N has HDMI × 2, DisplayPort × 1, DVI × 1, two USB ports, an IR input, audio input and output, RS232C in and out, and an RJ45 input. Wi-Fi and Bluetooth are also listed for the display.
What power does the QM98N use?
The QM98N draws 528 W in on mode and 0.5 W in sleep mode, on a 100–240 V AC, 50/60 Hz supply. Confirm the electrical supply and circuit capacity with your installer before installation.
Can I buy the QM98N in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
