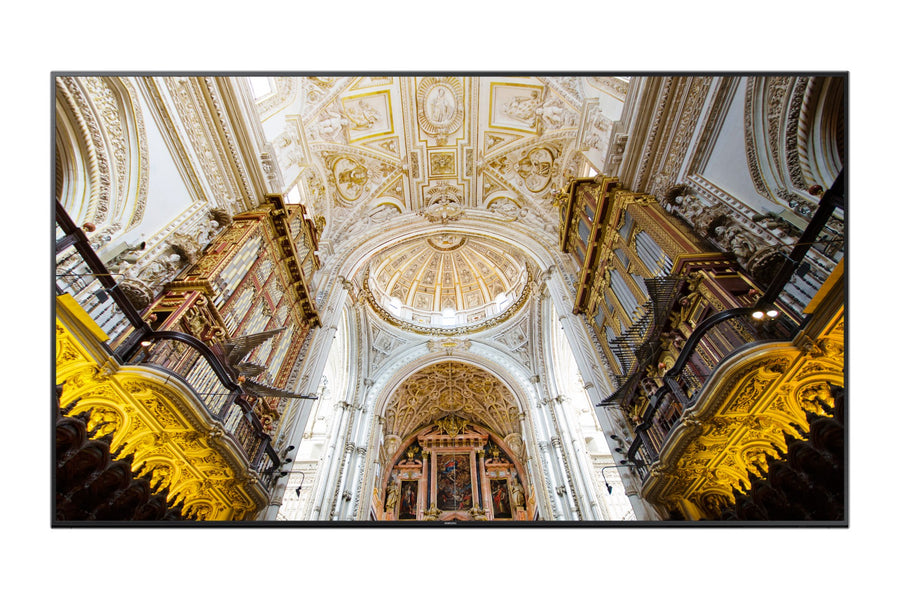

Samsung QM85N 85-inch 4K UHD digital signage displaySamsung

Samsung QMN 85-inch 4K UHD Digital Signage Display – QM85N

The Samsung QMN QM85N is an 85-inch 4K UHD digital signage display for large lobbies, corporate reception areas and retail venues. It has a 3840 x 2160 slim direct LED panel with 500 nits typical brightness, a 3,000:1 contrast ratio and MagicInfo daisychain video wall support. Procure.ae supplies the QM85N across the UAE, with quotes, delivery and installation.

The QM85N is an 85-inch display at 3840 x 2160 (4K UHD) resolution with a slim direct LED backlight. Typical brightness is 500 nits, the contrast ratio is 3,000:1 and the viewing angle is 178 degrees horizontally and vertically. The response time is 8 ms, and the 72% color gamut comes with Mega Contrast dynamic mode. The ports are two HDMI, one DisplayPort, one DVI, two USB and a video output, with Wi-Fi and Bluetooth built in. The alternate Samsung model code is LH85QMNEBGC/UE.

The QM85N suits large corporate lobbies, boardrooms, exhibition areas and retail venues where one large screen is the focal point. MagicInfo daisychain video wall support lets several units be linked. RS232 In and Out, an RJ45 In network port and an IR input offer control options. The 600 x 400 mm VESA pattern, 50.7 kg set weight and 66.0 kg packed weight mean the wall or stand must be rated for the load.

Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
  • 4K UHD resolution
  • Brightness and contrast
  • Wide viewing angle
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels on an 85-inch slim direct LED panel.
02
Brightness and contrast
500 nits typical brightness and a 3,000:1 contrast ratio.
03
Wide viewing angle
178 degrees horizontal and vertical, with an 8 ms response time.
04
Video wall support
MagicInfo daisychain video wall support for linked displays.
05
Wireless connectivity
Built-in Wi-Fi and Bluetooth.
06
Control ports
RS232 In and Out, RJ45 In and an IR input.
07
Input and output ports
2 HDMI, DisplayPort, DVI, 2 USB ports and a video output.
08
Large wall mounting
600 x 400 mm VESA pattern with a 50.7 kg set weight.

Specifications

30 specifications
General
Key Features4K UHD, 500 nits typical brightness, 3,000:1 contrast, MagicInfo daisychain video wall support, Wi-Fi, Bluetooth, RS232 control, 8 ms response time
ModelQM85N
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightSlim Direct LED
Bezel Size13.2 mm (top and sides), 19.3 mm (bottom)
Brightness500 nits
Color Gamut72%
Contrast Ratio3,000:1
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Viewing Angle178° H / 178° V
Audio
Audio OutStereo mini jack
Connectivity
BluetoothBuilt-in
EthernetRJ45 In
HDMI Inputs2
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In, DVI In, USB × 2, RS232 In and Out, RJ45 In, IR In, Audio In, Stereo mini jack audio out, Video Out
Serial PortRS232 In and Out
USB Ports2
Wi-FiBuilt-in
Power
Power Consumption495 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1903.4 x 1090.5 x 105.1 mm
Operating Humidity10% to 80% RH, non-condensing
Shipping Dimensions2050 x 1265 x 472 mm
Shipping Weight66.0 kg
VESA Mount600 x 400 mm
Weight50.7 kg

Questions

Can’t find your answer? Ask on WhatsApp

What resolution and brightness does the Samsung QM85N offer?
The QM85N has a 3840 x 2160 (4K UHD) resolution on an 85-inch panel with 500 nits typical brightness. Its contrast ratio is 3,000:1 and the response time is 8 ms. The 178-degree horizontal and vertical viewing angle keeps the picture visible from wide positions in large lobbies.
Can the QM85N be used in a video wall?
Yes. The QM85N supports MagicInfo daisychain video wall support, so several units can be linked into a larger display. Confirm the layout, bezel spacing and mounting structure with Procure.ae before deciding how many screens you need.
How is the QM85N mounted?
It uses a 600 x 400 mm VESA mount pattern. The set weighs 50.7 kg and the packed weight is 66.0 kg, so the wall or stand must be engineered for that load. Procure.ae provides delivery and installation across the UAE and the wider Middle East and Africa region.
Can the QM85N be managed over a network or from a control system?
Yes. It includes an RJ45 In network port, RS232 In and Out serial ports, an IR input, and built-in Wi-Fi and Bluetooth. These are the connections a control system normally uses for power and source control. Procure.ae can advise on the right setup for your site.
Which rooms and uses suit the QM85N?
The QM85N suits large corporate lobbies, boardrooms, exhibition areas and retail venues where viewers sit or stand at a distance. For rooms with strong daylight or very long viewing distances, check the brightness requirement with Procure.ae before ordering.
Can I buy the QM85N in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
