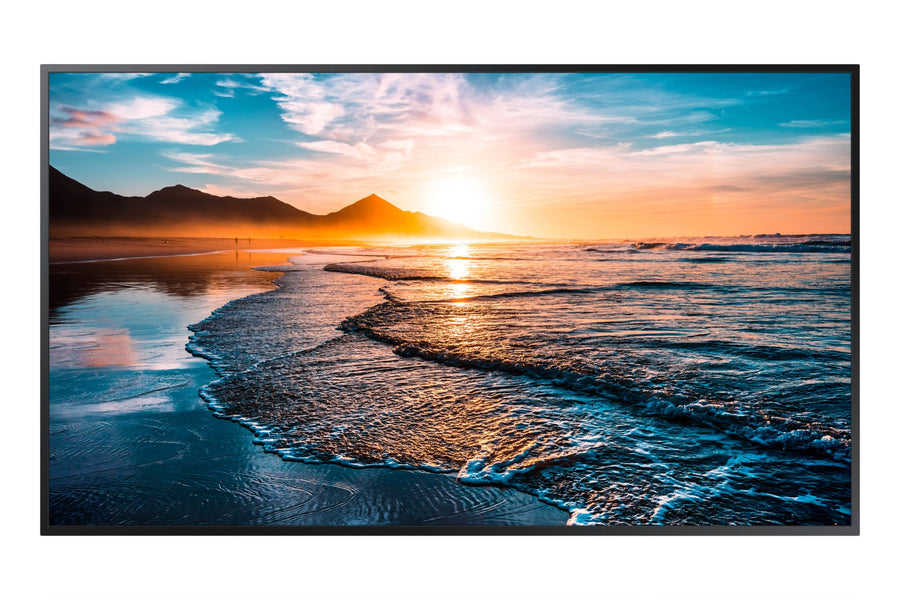

Samsung QH49R 49-inch 4K UHD smart digital signage displaySamsung

Samsung QHR Series 49-inch 4K Smart Digital Signage Display – QH49R

The Samsung QH49R is a 49-inch 4K UHD smart digital signage display for video walls, corporate lobbies and retail spaces. It has a 60 Hz new edge panel rated at 700 nits typical brightness, a 4,000:1 contrast ratio and MagicInfo daisychain video wall support. Procure.ae, an authorised reseller, supplies the Samsung QH49R across the UAE.

The QH49R, also listed as LH49QHREBGCXUE, is a 49-inch 4K UHD display with a 3840 x 2160 new edge panel running at 60 Hz. It delivers 700 nits typical brightness, a 4,000:1 contrast ratio, 92% DCI-P3 colour and an 8 ms response time. Viewing angles are 178 degrees horizontal and vertical, and Mega dynamic contrast is included. On-mode power consumption is 143 W, and sleep mode draws 0.5 W.

The QH49R suits video walls, corporate lobbies, retail walls and meeting spaces. It supports MagicInfo daisychain video wall setups and has two HDMI In ports, one DisplayPort In, one DVI In, two USB ports, RS232 In and Out, RJ45 In, IR In, audio in and a video output. Built-in Wi-Fi and Bluetooth are included. The 200 x 200 mm VESA pattern and 14.6 kg set weight suit standard wall brackets. It draws less power than the 50-inch QH50R, at 143 W against 176 W.

Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits (typical)
Type
Digital Signage Display
  • MagicInfo daisychain
  • 60 Hz new edge panel
  • 700 nits brightness
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
MagicInfo daisychain
Supports MagicInfo video wall daisychain setups.
02
60 Hz new edge panel
New edge panel with a 60 Hz refresh rate at 3840 x 2160.
03
700 nits brightness
700 nits typical brightness on a 49-inch screen.
04
4,000:1 contrast
Contrast ratio of 4,000:1 with Mega dynamic contrast.
05
92% DCI-P3 colour
92% DCI-P3 colour gamut coverage.
06
Video and audio I/O
Video output, audio in and a stereo mini jack audio out.
07
Control ports
RS232 In and Out, RJ45 In and IR In.
08
Wi-Fi and Bluetooth
Built-in wireless connectivity.

Specifications

30 specifications
General
Key Features4K UHD, 60 Hz new edge panel, 700 nits, 4,000:1 contrast, MagicInfo daisychain video wall, Wi-Fi, Bluetooth, RS232 control
ModelQH49R
TypeDigital Signage Display
Display
Bezel Size9.2 mm (top, left, right); 11.2 mm (bottom)
Brightness700 nits (typical)
Color Gamut92% (DCI-P3)
Contrast Ratio4,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
DisplayPort1 input
Connectivity
BluetoothBuilt-in
EthernetRJ45 In
HDMI Inputs2
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DVI In × 1, USB × 2, RS232 In, RS232 Out, RJ45 In, IR In, Video Out, Audio In, stereo mini jack audio out
Serial PortRS232 In, RS232 Out
Wi-FiBuilt-in
Power
Power Consumption143 W (on mode); 0.5 W (sleep mode)
Physical
Dimensions1099.2 x 631.5 x 46.3 mm
FinishNon-glossy
Operating Humidity10% to 80% (non-condensing)
Shipping Dimensions1247 x 772 x 152 mm
Shipping Weight19.1 kg
VESA Mount200 x 200 mm
Weight14.6 kg
Compliance
CertificationsEMC Class B; Safety: CB, CCC, PSB, NOM, IRAM, SASO, BIS

Downloads

Manufacturer documents for the Samsung QHR Series 49-inch 4K Smart Digital Signage Display – QH49R — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the QH49R used for?
The QH49R is a 49-inch 4K display for digital signage and video walls. Typical uses include corporate lobbies, retail walls, meeting rooms and wayfinding screens in offices, hotels and shops.
Can the QH49R be used in a video wall?
Yes. The QH49R supports MagicInfo daisychain video wall setups. Confirm the number of screens, cabling and content layout with the installer before the wall is built, so the mounting and power plan match the layout.
What VESA mount does the QH49R use?
It uses a 200 x 200 mm VESA mount pattern. The set weighs 14.6 kg and measures 1099.2 x 631.5 x 46.3 mm, so a standard wall bracket rated for that weight is suitable.
Does the QH49R have DisplayPort and DVI inputs?
Yes. It has one DisplayPort In, one DVI In and two HDMI In ports. A video output and an audio input are also included, along with a stereo mini jack audio out.
Can the QH49R be controlled over RS232 or a network?
Yes. It has RS232 In and RS232 Out ports, an RJ45 In port and IR In for remote control signals. It has no RJ45 Out port, so the network connection cannot be passed on to another display.
Can I buy the QH49R in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
