SamsungDigital SignageSKU QB85R-B

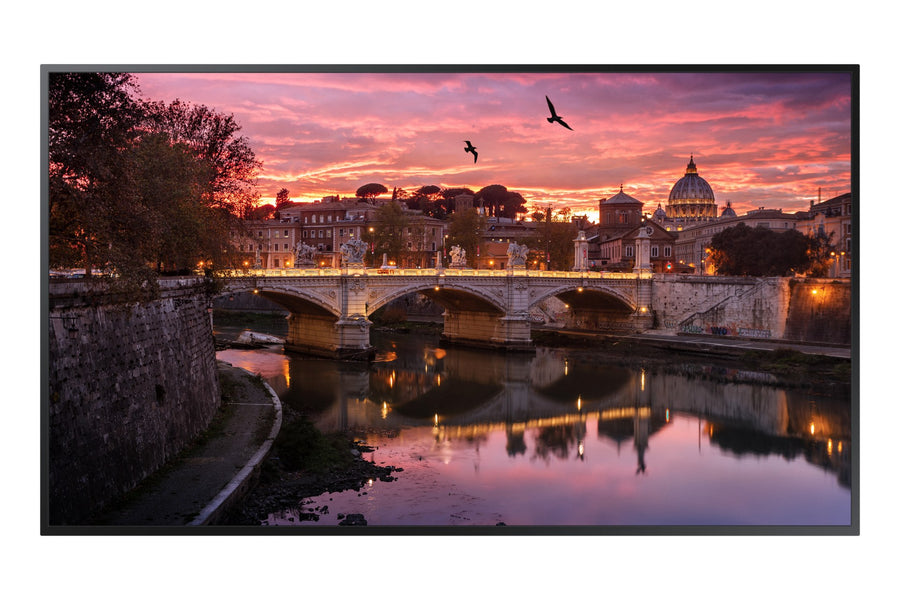

Samsung Crystal UHD 85-inch 4K Digital Signage Display – QB85R-B
The Samsung QB85R-B is an 85-inch 4K UHD digital signage display with a VA panel, built for large-format corporate and public spaces. It offers 3840 x 2160 resolution, 350 nits typical brightness and a 4,000:1 contrast ratio, with Wi-Fi and RS232C control. Procure.ae supplies the QB85R-B across the UAE, with quotes, delivery and installation.
The QB85R-B, also listed as LH85QBRBBGCXEN, uses a VA panel with 3840 x 2160 (4K UHD) resolution across 85 inches. Typical brightness is 350 nits, the contrast ratio is 4,000:1 and the response time is 6 ms. The viewing angle is 178 degrees horizontally and vertically, and the display covers 92% of the DCI-P3 color space (CIE 1976). Its inputs are listed at HDMI version 2 and HDCP version 2.2. Power draw is 198 W in on mode and 0.5 W in sleep mode, and the set weighs 48.4 kg.
The QB85R-B suits large boardrooms, lobbies, showrooms and retail walls. It runs Tizen 4.0 with 8 GB of flash storage, and it mounts on a 600 x 400 mm VESA pattern. Connections include two HDMI inputs, a DVI input, two USB ports, RS232C in and out, IR in, and RJ45 and Wi-Fi networking. Compared with the QB85R, it lists a VA panel, Tizen 4.0 and 8 GB storage, while its specifications do not list Bluetooth or a refresh rate.
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
- 4K UHD Resolution
- Wide Color Gamut
- Viewing Angles
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Resolution
3840 x 2160 pixels on an 85-inch VA panel with 350 nits typical brightness.
02
Wide Color Gamut
92% coverage of the DCI-P3 color space on the CIE 1976 measure.
03
Viewing Angles
178 degrees horizontal and vertical, with a 4,000:1 contrast ratio.
04
Fast Response
A 6 ms typical response time on the 85-inch panel.
05
HDMI 2 and HDCP 2.2
Inputs listed at HDMI version 2 and HDCP version 2.2.
06
Built-in Operating System
Tizen 4.0 with 8 GB of flash memory.
07
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
08
Wall Mounting
A 600 x 400 mm VESA pattern, 56.7 mm set depth and 48.4 kg set weight.
Specifications
23 specificationsGeneral
ApplicationDigital signage
Key FeaturesUHD 4K resolution, VA panel, 350 nits typical brightness, 4,000:1 contrast ratio, 6 ms response time, HDMI 2 with HDCP 2.2, Tizen 4.0 OS, Wi-Fi
ModelQB85R-B
TypeDigital Signage Display
Display
Bezel Size10.9 mm (top, left and right), 12.9 mm (bottom)
Brightness350 nits
Color Gamut92% (DCI-P3)
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6 ms
Screen Size85 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemTizen 4.0
Storage8 GB
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DVI In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption198 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1897.8 x 1080.8 x 56.7 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount600 x 400 mm
Weight48.4 kg
Downloads
Manufacturer documents for the Samsung Crystal UHD 85-inch 4K Digital Signage Display – QB85R-B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the resolution, brightness and panel type of the Samsung QB85R-B?
The QB85R-B has a 3840 x 2160 (4K UHD) resolution on an 85-inch VA panel, with 350 nits typical brightness and a 4,000:1 contrast ratio. The manufacturer lists a 6 ms response time.
Does the QB85R-B support HDCP 2.2?
Yes. The manufacturer lists HDMI version 2 and HDCP version 2.2 for the QB85R-B inputs. HDCP 2.2 is the content-protection standard used by many protected HDMI sources, so check that your media player or set-top box supports it.
Does the QB85R-B have Bluetooth or network connectivity?
It lists Wi-Fi and an RJ45 In port for network connection. Bluetooth is not listed for the QB85R-B, so the QB85R is the model to consider if Bluetooth is required.
Can the QB85R-B be wall mounted?
Yes. The QB85R-B uses a 600 x 400 mm VESA mounting pattern. Its set depth is 56.7 mm and its set weight is 48.4 kg, so confirm that the wall structure, bracket and fixings are rated for that load before installation.
How much power does the QB85R-B use?
The QB85R-B uses 198 W in on mode and 0.5 W in sleep mode. It runs on 100 to 240 V AC at 50/60 Hz. The manufacturer's specifications do not state an energy efficiency rating for this model.
