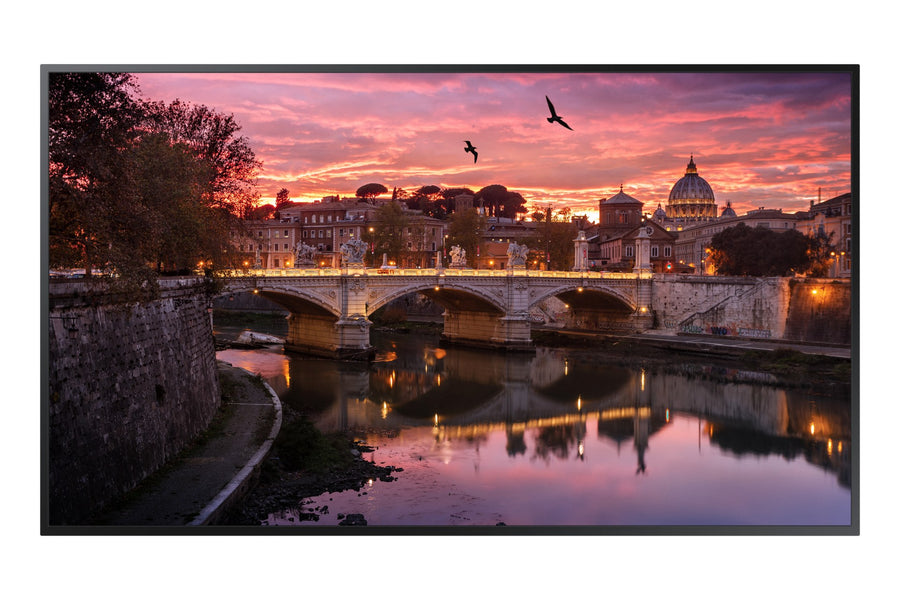

Samsung Crystal UHD 85-inch 4K Digital Signage Display – QB85R-B

Samsung Crystal UHD 85-inch 4K Digital Signage Display – QB85R-B

The Samsung QB85R-B is an 85-inch 4K UHD digital signage display with a VA panel, built for large-format corporate and public spaces. It offers 3840 x 2160 resolution, 350 nits typical brightness and a 4,000:1 contrast ratio, with Wi-Fi and RS232C control. Procure.ae supplies the QB85R-B across the UAE, with quotes, delivery and installation.

The QB85R-B, also listed as LH85QBRBBGCXEN, uses a VA panel with 3840 x 2160 (4K UHD) resolution across 85 inches. Typical brightness is 350 nits, the contrast ratio is 4,000:1 and the response time is 6 ms. The viewing angle is 178 degrees horizontally and vertically, and the display covers 92% of the DCI-P3 color space (CIE 1976). Its inputs are listed at HDMI version 2 and HDCP version 2.2. Power draw is 198 W in on mode and 0.5 W in sleep mode, and the set weighs 48.4 kg.

The QB85R-B suits large boardrooms, lobbies, showrooms and retail walls. It runs Tizen 4.0 with 8 GB of flash storage, and it mounts on a 600 x 400 mm VESA pattern. Connections include two HDMI inputs, a DVI input, two USB ports, RS232C in and out, IR in, and RJ45 and Wi-Fi networking. Compared with the QB85R, it lists a VA panel, Tizen 4.0 and 8 GB storage, while its specifications do not list Bluetooth or a refresh rate.

Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
Weight
48.4 kg

Key features

01
4K UHD Resolution
3840 x 2160 pixels on an 85-inch VA panel with 350 nits typical brightness.
02
Wide Color Gamut
92% coverage of the DCI-P3 color space on the CIE 1976 measure.
03
Viewing Angles
178 degrees horizontal and vertical, with a 4,000:1 contrast ratio.
04
Fast Response
A 6 ms typical response time on the 85-inch panel.
05
HDMI 2 and HDCP 2.2
Inputs listed at HDMI version 2 and HDCP version 2.2.
06
Built-in Operating System
Tizen 4.0 with 8 GB of flash memory.
07
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
08
Wall Mounting
A 600 x 400 mm VESA pattern, 56.7 mm set depth and 48.4 kg set weight.

Specifications

General
ApplicationDigital signage
Key FeaturesUHD 4K resolution, VA panel, 350 nits typical brightness, 4,000:1 contrast ratio, 6 ms response time, HDMI 2 with HDCP 2.2, Tizen 4.0 OS, Wi-Fi
ModelQB85R-B
TypeDigital Signage Display
Display
Bezel Size10.9 mm (top, left and right), 12.9 mm (bottom)
Brightness350 nits
Color Gamut92% (DCI-P3)
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6 ms
Screen Size85 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemTizen 4.0
Storage8 GB
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DVI In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption198 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1897.8 x 1080.8 x 56.7 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount600 x 400 mm
Weight48.4 kg
