PhilipsDigital SignageSKU 98BDL5050D/00

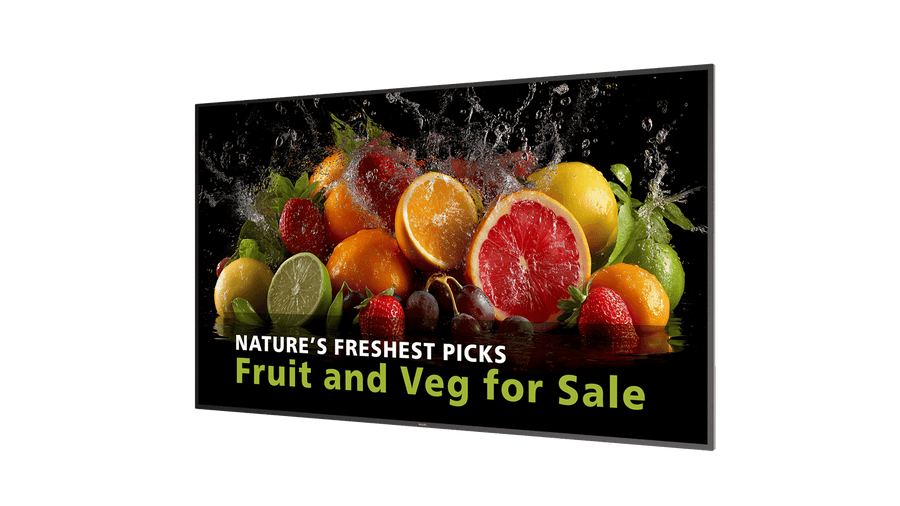

Philips Signage 5000 98-inch 4K UHD Digital Signage Display – 98BDL5050D/00
The Philips 98BDL5050D/00 is a 98-inch 4K UHD digital signage display from the Philips Signage 5000 series. It runs Android 14, has 600 nits brightness and an ADS panel, and supports Wi-Fi 6 and Bluetooth 5.2 through an included CRD32 module. Procure.ae supplies it across the UAE for businesses and venues that run 24/7 content.
The 98BDL5050D/00 combines a 3840 x 2160 ADS panel with 600 nits typical brightness, 1,200:1 typical contrast and 178-degree viewing angles. Its octa-core processor (4 x A72 + 4 x A53) runs Android 14 with 4 GB RAM and 32 GB storage. Built-in 2 x 10 W RMS speakers are fitted, and an IP5X rating is listed. The 8 ms typical response time and 24/7 landscape or portrait operation suit continuous content.
It suits atriums, lobbies, hospitality venues and campus areas where a large screen runs signage, menus or information loops. Control options are RS232C, RJ45 and IR, and a 4G/LTE mPCIe slot and Micro USB OTG port are provided. The mount pattern is 1000 x 400 mm. Compared with the 98BDL4511D/00, this model adds Android 14, Wi-Fi 6 through the CRD32 module, a DisplayPort 1.4 input and a USB-C input.
Screen Size
97.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits
Type
Digital Signage Display
- Android 14 platform
- Wi-Fi 6 and Bluetooth 5.2
- 4K UHD ADS panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
Android 14 with 4 GB RAM and 32 GB storage.
02
Wi-Fi 6 and Bluetooth 5.2
Provided through the CRD32 module included with the display.
03
4K UHD ADS panel
3840 x 2160 resolution with 1.07 billion display colours.
04
Brightness level
600 nits typical brightness with 1,200:1 typical contrast.
05
IP5X rating
Ingress protection rated IP5X by the manufacturer.
06
Tiled matrix
Tiled matrix of up to 10 x 15 displays.
07
Video and mobile inputs
DisplayPort 1.4, HDMI 2.0, USB-C input and 4G/LTE mPCIe slot.
08
Network control
RJ45, RS232C and IR control ports.
Specifications
34 specificationsGeneral
Key FeaturesAndroid 14, Wi-Fi 6 and Bluetooth 5.2 via CRD32, 4G/LTE mPCIe slot, tiled matrix up to 10 x 15, IP5X, Pixel Shift, Smart Power
Model98BDL5050D/00
TypeDigital Signage Display
What's in the BoxCRD32 Wi-Fi and Bluetooth module, remote control with AAA batteries, RS232 cable, IR sensor cable, AC power cord, quick start guide
Display
Aspect Ratio16:9
Bezel Size16.0 mm (even bezel)
Brightness600 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1 (typical)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size97.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Processor4 x A72 + 4 x A53 (RK3576 + MT9800)
RAM4 GB
Storage32 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
BluetoothBluetooth 5.2 (via CRD32 module)
ConnectivityWi-Fi 6, Bluetooth 5.2, RJ45, RS232C, IR, 4G/LTE mPCIe slot
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.4 In × 1, HDMI 2.0 In × 2, USB-C In × 1 (4.5 W), USB 3.0 × 2, Micro USB (OTG), HDMI 2.0 Out × 1, RJ45, RS232C, IR
Wi-FiWi-Fi 6 (via CRD32 module)
Power
Power Consumption127 W (EEI rating)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount1000 x 400 mm
Weight65.64 kg
Compliance
CertificationsCE, RoHS, CB
IP RatingIP5X
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 5000 98-inch 4K UHD Digital Signage Display – 98BDL5050D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 98BDL5050D/00?
It is a 98-inch 4K UHD digital signage display from the Philips Signage 5000 series, built for 24/7 commercial use. It runs Android 14 with 4 GB RAM and 32 GB storage, uses an ADS panel rated at 600 nits typical brightness, and has an IP5X rating.
Does it have Wi-Fi 6 and Bluetooth 5.2?
Yes. Wi-Fi 6 and Bluetooth 5.2 are provided through the CRD32 module, which the manufacturer lists among the accessories supplied with the display. Connectivity is listed as Wi-Fi 6 and Bluetooth 5.2 in the manufacturer's external control specifications.
Does it support 4G/LTE connectivity?
Yes, the display has a 4G/LTE mPCIe slot and 4G/LTE antenna connectors. The listed accessories include the CRD32 Wi-Fi and Bluetooth module, but a 4G/LTE module is not listed as included, so it should be quoted separately.
What wall mount does it need?
It uses a 1000 x 400 mm mount pattern, as listed by the manufacturer. Procure.ae can advise on a compatible wall mount and arrange delivery and installation across the UAE, which helps when mounting is planned for a specific wall.
Is it rated for dust protection?
Yes. The manufacturer rates it IP5X for ingress protection. It is rated for operation from 0 to 40 °C at 20% to 80% RH, non-condensing, and for storage from -20 to 60 °C.
