PhilipsDigital SignageSKU 43BDL4050Q/00

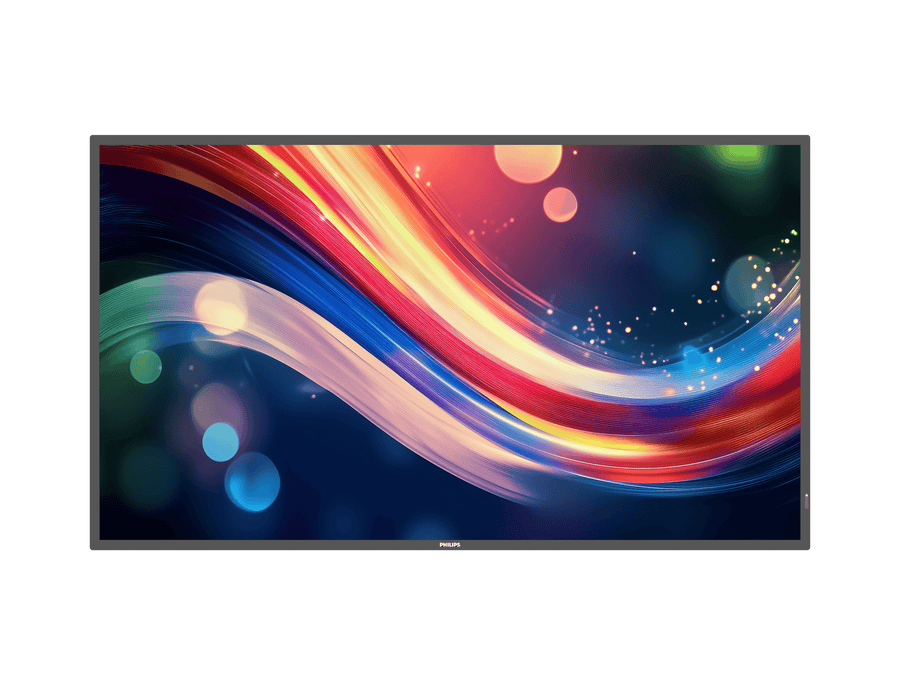

Philips Signage 4050 43-inch 4K UHD Digital Signage Display – 43BDL4050Q/00
The Philips 43BDL4050Q/00 is a 43-inch 4K UHD digital signage display for 24/7 information and display screens. It combines a 3840 x 2160 ADS panel rated at 500 nits with Android 10 and RJ45 network control. Procure.ae supplies the Philips 43BDL4050Q/00 across the UAE.
The 43BDL4050Q/00 has a 3840 x 2160 panel with a 16:9 aspect ratio and 1.07 billion display colours. Brightness is rated at 500 nits, with a 1,200:1 typical contrast ratio and a 500,000:1 dynamic contrast ratio. The panel has an 8 ms typical response time and 178-degree viewing angles in both directions. Its quad-core Cortex-A55 processor, ARM Mali G52 MC1 GPU, 3 GB DDR memory and 16 GB storage run the built-in Android 10 system for content playback.
The 24/7 rating suits lobbies, corridors and information points that run continuously, in landscape or portrait placement. Up to nine units can be tiled into a 3 x 3 video wall. Network control runs over RJ45 and RS232C, with IR in and out for remote control, and the 200 x 200 mm M6 wall mount and 13.9 mm bezel suit wall installation. Unlike the 18/7 rated Signage 3000 model, this unit is rated for 24/7 placement.
Screen Size
42.5 inch (108 cm)
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD ADS panel
- 500-nit brightness
- Tiled video wall
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD ADS panel
The 3840 x 2160 panel runs at 60 Hz with a 16:9 aspect ratio.
02
500-nit brightness
The screen is rated at 500 nits with a 1,200:1 typical contrast ratio.
03
Tiled video wall
Up to 3 x 3 units can be tiled into one video wall.
04
Network control
RJ45 and RS232C ports allow network and serial management.
05
Lockable controls
The remote control signal and keyboard can be locked or hidden.
06
Built-in speakers
Two 10 W RMS speakers and a 3.5 mm audio output are included.
07
Android 10 platform
The display runs Android 10 with 3 GB DDR memory and 16 GB storage.
08
Three-year warranty
The display carries a 3-year warranty and EPEAT Silver rating.
Specifications
33 specificationsGeneral
Key Features3840 x 2160 ADS panel, 500-nit brightness, 500,000:1 dynamic contrast, Android 10, RJ45 and RS232C control, tiled matrix up to 3 x 3, 24/7 operation, EPEAT Silver
Model43BDL4050Q/00
TypeDigital Signage Display
What's in the BoxRS232 daisy-chain cable, Philips logo, AC power cord, AC switch cover, quick start guide, remote control and AAA batteries, RS232 cable, USB cover and screws
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape, Portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch (108 cm)
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsARM Mali G52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB DDR
Storage16 GB
Audio
Audio2 x 10 W RMS built-in speakers
Connectivity
ConnectivityRJ45 network control, RS232C
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 3.0 × 1, USB 2.0 × 2, micro SD, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption43 W (EEI Lot 5)
Standby Power<0.5 W
Physical
Duty Cycle24/7
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm
Weight11.1 kg
Compliance
CertificationsCE, CB, FCC Class A, VCCI, RoHS, UL, EPEAT Silver
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 4050 43-inch 4K UHD Digital Signage Display – 43BDL4050Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What panel and brightness does the 43BDL4050Q/00 have?
It has a 16:9 ADS panel with 3840 x 2160 resolution and a brightness rating of 500 nits. The typical contrast ratio is 1,200:1, and the dynamic contrast ratio is 500,000:1 with 178-degree viewing angles.
Can the 43BDL4050Q/00 be used in a video wall?
Yes, the display supports tiled matrices of up to 3 x 3 units, which lets several screens operate as one larger display. Each unit has RJ45 and RS232C ports, so the matrix can be managed over a network or serial link.
How is the 43BDL4050Q/00 mounted?
It has a 200 x 200 mm wall mount pattern with M6 fixings, and its bezel is 13.9 mm wide. It can be placed in landscape or portrait orientation, and both are rated for 24/7 use.
Which operating system and ports does the 43BDL4050Q/00 have?
It runs Android 10 and has two HDMI 2.0 inputs, one DVI-I input, one USB 3.0 port, two USB 2.0 ports, 3.5 mm audio input and output, and a micro SD slot. Network control is through RJ45.
Does the 43BDL4050Q/00 support remote management?
Yes, it supports RS232C and RJ45 network control, plus IR in and out through a 3.5 mm jack. Keyboard and remote control signals can be locked or hidden to limit local changes.
