PhilipsDigital SignageSKU 75BDL4050Q/00

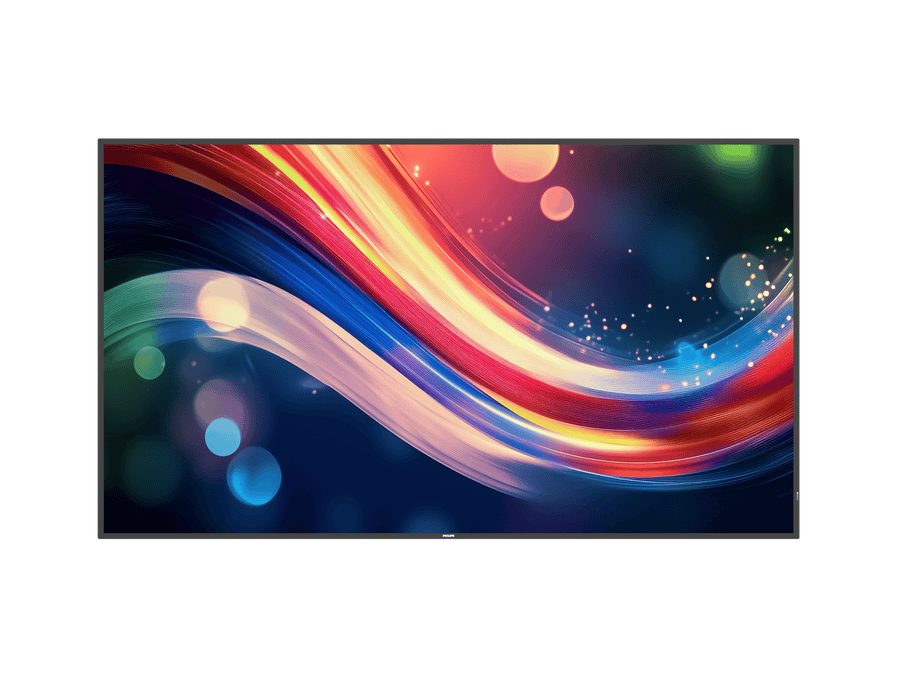

Philips Signage 4000 Series 75-inch 4K UHD Digital Signage Display – 75BDL4050Q/00
The Philips 75BDL4050Q/00 is a 75-inch 4K UHD Q-Line display for 24/7 digital signage in business and public spaces. It offers 3840 x 2160 resolution, 500 nits brightness, an ADS panel and Android 10. Procure.ae supplies the Philips 75BDL4050Q/00 across the UAE.
The 75BDL4050Q/00 has a 74.5-inch (189.3 cm) 4K UHD ADS panel with 3840 x 2160 resolution, 500 nits brightness and a 1,200:1 typical contrast ratio. The panel has a 500,000:1 dynamic contrast ratio, an 8 ms typical response time and 178-degree viewing angles. Picture enhancement includes 3/2 and 2/2 motion pull-down, progressive scan and dynamic contrast enhancement. Two 10 W RMS speakers are built in, and the display supports tiled video walls of up to 3 x 3 panels. The manufacturer lists an EEI Lot 5 power consumption of 70 W.
The display provides an OPS slot, a micro SD slot, HDMI 2.0 x 2, DVI-I, USB 3.0 x 1 and USB 2.0 x 2 for media and peripherals. Control is through RS232C, IR and RJ45 ports, and the display is listed as network controllable over RS232 and RJ45. The Quad-Core Cortex A55 processor runs Android 10, and the display carries EPEAT Silver certification. Its 600 x 400 mm wall-mount pattern uses M8 fixings, and the display weighs 35.75 kg.
Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Display (Digital Signage)
- ADS panel
- Android 10 platform
- 24/7 operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ADS panel
3840 x 2160 resolution with 500 nits brightness and 500,000:1 dynamic contrast.
02
Android 10 platform
Quad-Core Cortex A55 processor and Mali G52 graphics.
03
24/7 operation
Rated for landscape and portrait placement at 24/7 operation.
04
Video inputs
HDMI 2.0 x 2, DVI-I x 1, USB 3.0 x 1 and USB 2.0 x 2.
05
OPS and micro SD
OPS slot for a compatible computer module and a micro SD card slot.
06
Tiled video wall
Supports tiled matrices of up to 3 x 3 displays.
07
Energy efficiency
EEI Lot 5 consumption of 70 W, Smart Power and EPEAT Silver certification.
08
Network control
RS232C, IR and RJ45 ports with lockable remote and keyboard control.
Specifications
28 specificationsGeneral
Key FeaturesADS panel, 4K UHD, 500 nits brightness, Android 10, 24/7 landscape and portrait operation, OPS slot, tiled video wall up to 3 x 3, RS232C and RJ45 control, EPEAT Silver
Model75BDL4050Q/00
TypeProfessional Display (Digital Signage)
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even bezel)
Brightness500 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsARM Mali G52 MC1
Operating SystemAndroid 10
ProcessorQuad-Core Cortex A55
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 × 2, DVI-I × 1, USB 3.0 × 1, USB 2.0 × 2, OPS slot, micro SD, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption70 W (EEI Lot 5)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35.75 kg
Compliance
CertificationsCE, CB, FCC Class A, VCCI, RoHS, UL, EPEAT Silver
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 4000 Series 75-inch 4K UHD Digital Signage Display – 75BDL4050Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Philips 75BDL4050Q/00?
It is a 75-inch class display with a 74.5-inch (189.3 cm) diagonal, a 3840 x 2160 (4K UHD) ADS panel and a 16:9 aspect ratio. It has 500 nits brightness and an 8 ms typical response time.
Does the display run Android?
Yes. The manufacturer lists Android 10 as the operating system, with a Quad-Core Cortex A55 processor and Mali G52 graphics. The OPS slot lets a compatible OPS computer module be fitted if required.
Can it be controlled by a control system or managed remotely?
Yes. The display has RS232C, IR and RJ45 control ports and is listed as network controllable over RS232 and RJ45. The remote control signal and keyboard control can be locked for installation settings.
Can the 75BDL4050Q/00 be wall-mounted?
Yes. The wall-mount pattern is 600 x 400 mm with M8 fixings, and the display weighs 35.75 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can advise on mounting for your room.
Can it run in portrait orientation for 24/7 operation?
Yes. The manufacturer rates the display for both landscape and portrait placement at 24/7 operation. Its EEI Lot 5 consumption is 70 W, and Smart Power is listed as an energy-saving function. Procure.ae can confirm the portrait mounting arrangement for your site.
Can I buy the 75BDL4050Q/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
