PhilipsDigital SignageSKU 75BDL3650Q/00

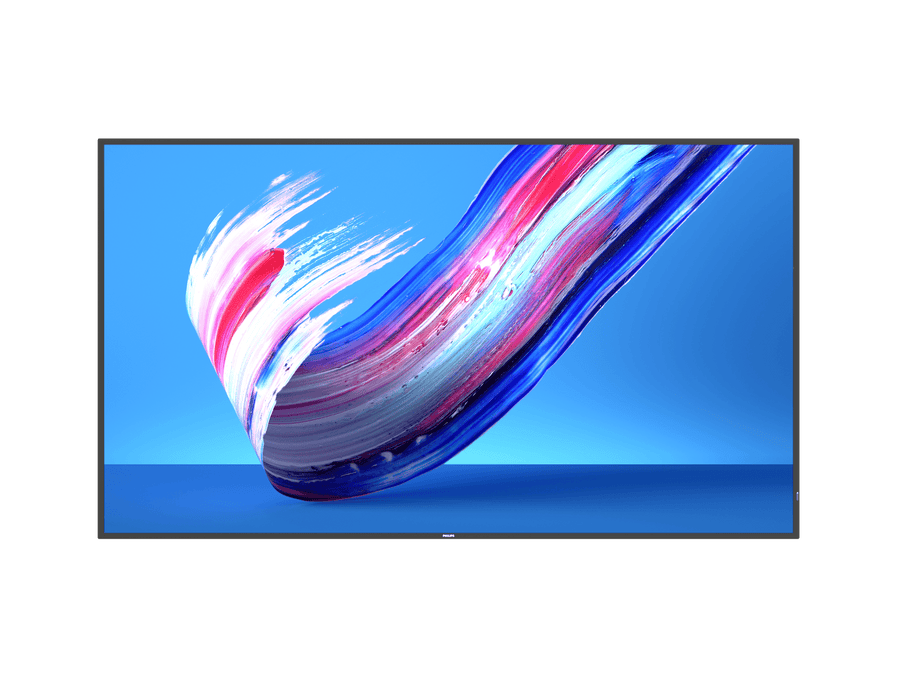

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3650Q/00
The Philips 75BDL3650Q/00 is a 75-inch 4K UHD Q-Line display for 18/7 business and public signage, with Android 10 and Wave-ready remote management. It offers 3840 x 2160 resolution, 400 nits brightness, an ADS panel and an 8 ms typical response time. Procure.ae supplies the Philips 75BDL3650Q/00 across the UAE.
The 75BDL3650Q/00 has a 74.5-inch (189.3 cm) 4K UHD ADS panel with 3840 x 2160 resolution, 400 nits brightness and a 1,200:1 typical contrast ratio. Its 500,000:1 dynamic contrast ratio and 178-degree viewing angles support clear signage content. Picture enhancement includes 3/2 and 2/2 motion pull-down, progressive scan and dynamic contrast enhancement. Two 10 W RMS speakers are built in, and the display supports tiled video walls of up to 3 x 3 panels. Typical power consumption is 144 W.
The display provides an OPS slot, a micro SD slot, HDMI 2.0 x 2, DVI-I, USB 3.0 x 1 and USB 2.0 x 2 for media and peripherals. Control is through RS232C, IR and RJ45 ports, and the display is listed as network controllable over RS232 and RJ45. The Quad-Core Cortex A55 processor runs Android 10 and is Wave-ready for remote management. Its 600 x 400 mm wall-mount pattern uses M8 fixings, and the display weighs 35.75 kg.
Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Professional Display (Digital Signage)
- ADS panel
- Android 10 platform
- Wave-ready management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ADS panel
3840 x 2160 resolution with 400 nits brightness and 500,000:1 dynamic contrast.
02
Android 10 platform
Quad-Core Cortex A55 processor and Mali G52 graphics.
03
Wave-ready management
The manufacturer describes the display as Wave-ready for remote management.
04
Video inputs
HDMI 2.0 x 2, DVI-I x 1, USB 3.0 x 1 and USB 2.0 x 2.
05
OPS and micro SD
OPS slot for a compatible computer module and a micro SD card slot.
06
Tiled video wall
Supports tiled matrices of up to 3 x 3 displays.
07
Energy use
144 W typical consumption with Smart Power and under 0.5 W standby.
08
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio in and out.
Specifications
26 specificationsGeneral
Key FeaturesADS panel, 4K UHD, 400 nits brightness, Android 10, Wave-ready remote management, OPS slot, tiled video wall up to 3 x 3, RS232C and RJ45 control, 18/7 landscape and portrait operation
Model75BDL3650Q/00
TypeProfessional Display (Digital Signage)
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even bezel)
Brightness400 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsARM Mali G52 MC1
Operating SystemAndroid 10
ProcessorQuad-Core Cortex A55
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 3.0 × 1, USB 2.0 × 2, OPS slot, micro SD, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption144 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35.75 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3650Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Philips 75BDL3650Q/00?
It is a 75-inch class display with a 74.5-inch (189.3 cm) diagonal, a 3840 x 2160 (4K UHD) ADS panel and a 16:9 aspect ratio. It has 400 nits brightness and an 8 ms typical response time.
Does the display run Android?
Yes. The manufacturer lists Android 10 as the operating system, with a Quad-Core Cortex A55 processor and Mali G52 graphics. The OPS slot lets a compatible OPS computer module be fitted if required.
Can it be managed remotely or integrated with a control system?
Yes. The manufacturer describes the display as Wave-ready for remote management. It also has RS232C, IR and RJ45 control ports and is listed as network controllable over RS232 and RJ45.
Can the 75BDL3650Q/00 be wall-mounted?
Yes. The wall-mount pattern is 600 x 400 mm with M8 fixings, and the display weighs 35.75 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can advise on mounting for your room.
Can it run in portrait orientation for 18/7 operation?
Yes. The manufacturer rates the display for both landscape and portrait placement at 18/7 operation. Typical power consumption is 144 W, with Smart Power listed as an energy-saving function. Procure.ae can confirm the portrait mounting arrangement for your site when you request a quote.
