PhilipsDigital SignageSKU 37BDL3050S/00

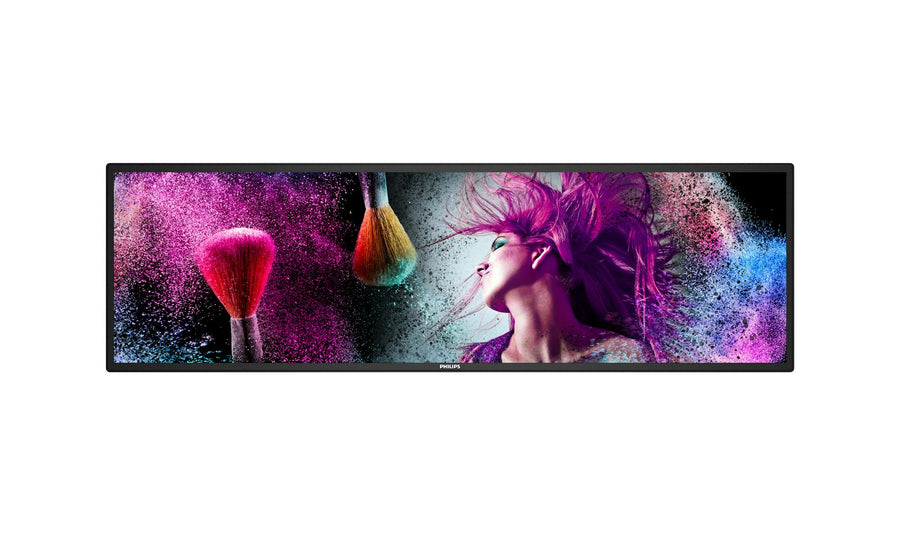

Philips S-Line 37-inch 32:9 Stretched Digital Signage Display – 37BDL3050S/00
The Philips 37BDL3050S/00 is a 37-inch stretched digital signage display with a 32:9 aspect ratio, made for wide content in narrow spaces. It offers 1920 x 540 resolution, 700 nits brightness and Android 8.0. Procure.ae supplies it across the UAE for corridors, counters, transit areas and retail fascias.
The 37BDL3050S/00 uses a 32:9 panel with 1920 x 540 resolution and 700 nits typical brightness, with a 4,000:1 typical contrast ratio. Its 8 ms typical response time and 178-degree viewing angles keep wide content legible. The display runs Android 8.0 with 2 GB RAM and 8 GB storage. Smart Picture, colour temperature adjustment, colour enhancement and noise reduction are listed, and typical power use is 70 W.
It suits corridors, counters, transit areas, retail fascias and meeting rooms where a wide, low-profile screen is needed. An HDMI 2.0 output is provided, and RS232C and RJ45 allow network control. It can be placed in landscape or portrait, rated 24/7 in both. The wall mount is 400 x 200 mm with M6 fixings. Bezel widths are 12.4 mm top and bottom and 10.5 mm left and right.
Screen Size
37 inch
Resolution
1920 x 540
Brightness
700 nits
Type
Stretched Digital Signage Display
- 32:9 stretched format
- Brightness level
- Contrast ratio
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
32:9 stretched format
Aspect ratio of 32:9 with 1920 x 540 resolution.
02
Brightness level
700 nits typical brightness.
03
Contrast ratio
4,000:1 typical contrast ratio.
04
Android 8.0 platform
Android 8.0 operating system with 2 GB RAM and 8 GB storage.
05
Picture processing
Smart Picture, colour temperature adjustment and noise reduction.
06
24/7 orientation
Landscape or portrait placement, rated 24/7 in both.
07
Network control
RJ45 LAN and RS232C, plus IR in and out.
08
Wall mounting
400 x 200 mm mount pattern with M6 fixings.
Specifications
29 specificationsGeneral
Key Features32:9 stretched design, 1920 x 540 resolution, Android 8.0, HDMI output for linking, Smart Picture, colour temperature adjustment
Model37BDL3050S/00
TypeStretched Digital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cable, IR sensor cable, HDMI cable, AC power cord, 2 wall mount bolts, quick start guide
Display
Aspect Ratio32:9
Bezel Size12.4 mm (top and bottom), 10.5 mm (left and right)
Brightness700 nits
Contrast Ratio4,000:1 (typical)
Refresh Rate60 Hz
Resolution1920 x 540
Response Time8 ms
Screen Size37 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 8.0
Processor2 x A53 + 2 x A73
RAM2 GB
Storage8 GB
Audio
Audio3.5 mm audio in and out
Connectivity
ConnectivityRJ45 LAN, RS232C, IR
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 1, VGA In × 1, USB 2.0 × 1, HDMI 2.0 Out × 1, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption70 W (typical), 85 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 200 mm
Weight7.76 kg
Compliance
CertificationsCE, FCC Class A, CB
Warranty3 years
Downloads
Manufacturer documents for the Philips S-Line 37-inch 32:9 Stretched Digital Signage Display – 37BDL3050S/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 37BDL3050S/00?
It is a 37-inch stretched digital signage display from the Philips S-Line range, with a 32:9 aspect ratio and 1920 x 540 resolution. The manufacturer lists 700 nits brightness, Android 8.0 and 24/7 landscape or portrait placement, for wide signage in narrow spaces such as corridors and counters.
Does it run Android apps?
Yes. The display runs Android 8.0 with 2 GB RAM and 8 GB storage. Check each app's own system requirements with the software vendor before deployment, since those are set outside the display specification.
Can it be used for wayfinding or long wall displays?
Yes, the stretched format is designed for that purpose. The 32:9 aspect ratio and 1920 x 540 resolution suit wide content, and the manufacturer lists bezel widths of 12.4 mm top and bottom and 10.5 mm left and right.
What wall mount does it need?
It uses a 400 x 200 mm mount pattern with M6 fixings, and two wall mount bolts are included with the display. Procure.ae can advise on a suitable wall mount and arrange delivery and installation across the UAE.
Which operating conditions is it rated for?
It is rated for operation from 0 to 40 °C at 20% to 80% RH, non-condensing, and for storage from -20 to 60 °C at 5% to 95% RH. Power draw is 70 W typical and 85 W maximum on a 100 to 240 V AC supply.
Can I buy the 37BDL3050S/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
