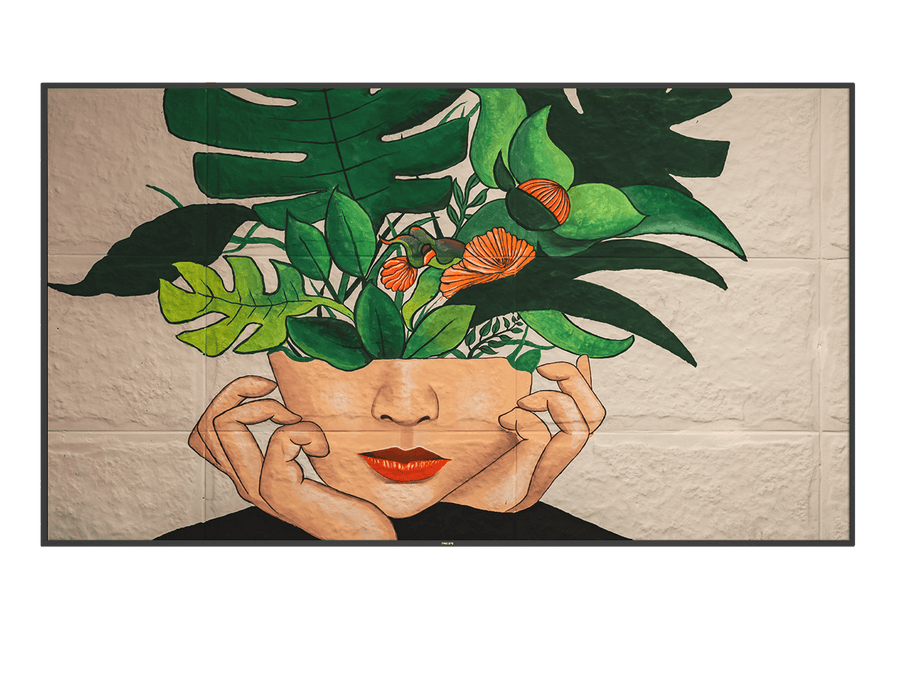

Philips 86BDL4550D/00 86-inch 4K Wi-Fi digital signage displayPhilips
Digital SignageSKU 86BDL4550D/00

Philips D-Line 86-inch 4K UHD Wi-Fi Digital Signage Display – 86BDL4550D/00

The Philips 86BDL4550D/00 is an 86-inch 4K UHD digital signage display with integrated dual-band Wi-Fi and Android 8.0. It suits businesses and venues that need networked 24/7 content. It offers 3840 x 2160 resolution, 500 nits brightness and a 120 Hz optimum refresh rate. Procure.ae supplies it across the UAE.

The 86BDL4550D/00 pairs a 3840 x 2160 IPS panel with dual-band Wi-Fi on 2.4 GHz and 5 GHz and an Android 8.0 operating system. The system carries 3 GB RAM and 32 GB storage, and the manufacturer rates its optimum refresh rate at 120 Hz. Typical contrast is 1,200:1, with an 8 ms typical response time and 178-degree viewing angles. Two 10 W RMS speakers are built in, and the display carries a 3-year warranty.

Use it where a networked screen must run Android apps or cloud content, such as reception areas, retail floors, meeting spaces and campus halls. A 4G/LTE mPCIe connector allows a cellular module to be fitted. Tiled matrices of up to 10 x 15 displays are listed, and RS232C and RJ45 provide network control. Mounting uses a 600 x 400 mm VESA pattern. The 86BDL4511D/00 in the same D-Line range does not list Wi-Fi or an operating system.

Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
  • 4K UHD IPS panel
  • Dual-band Wi-Fi
  • Android 8.0 platform
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD IPS panel
3840 x 2160 resolution with 1.07 billion display colours.
02
Dual-band Wi-Fi
Wi-Fi on 2.4 GHz and 5 GHz bands.
03
Android 8.0 platform
Android 8.0 operating system with 3 GB RAM and 32 GB storage.
04
Tiled video walls
Tiled matrix of up to 10 x 15 displays.
05
4G/LTE connection
mPCIe antenna connectors for a 4G/LTE module.
06
120 Hz refresh
Optimum resolution of 3840 x 2160 at 120 Hz.
07
Brightness and contrast
500 nits typical brightness and 1,200:1 typical contrast.
08
Network control
RJ45 and RS232C control, plus IR input.

Specifications

31 specifications
General
Key FeaturesAndroid 8.0, dual-band Wi-Fi, 4G/LTE mPCIe connector, tiled matrix up to 10 x 15, Pixel Shift, Smart Power
Model86BDL4550D/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cable, IR sensor cable, AC power cord, quick start guide
Display
Aspect Ratio16:9
Bezel Size15.5 mm (even bezel)
Brightness500 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 8.0
RAM3 GB
Storage32 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityWi-Fi, 4G/LTE mPCIe connector, RJ45 and RS232C network control
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 3, DisplayPort 1.2 In × 1, DVI-I In × 1, USB 2.0 × 2, RJ45, RS232C, IR
Wi-FiDual-band Wi-Fi (2.4 GHz and 5 GHz)
Power
Power Consumption410 W (typical), 600 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight50.4 kg
Compliance
CertificationsCE, FCC Class A, CCC, RoHS, CB, ETL, PSE, VCCI, BSMI
Warranty3 years

Downloads

Manufacturer documents for the Philips D-Line 86-inch 4K UHD Wi-Fi Digital Signage Display – 86BDL4550D/00 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Philips 86BDL4550D/00?
It is an 86-inch 4K UHD digital signage display from the Philips D-Line range with integrated dual-band Wi-Fi and an Android 8.0 operating system. The manufacturer lists a 3840 x 2160 IPS panel, 3 GB RAM and 32 GB storage, for networked content in lobbies, retail areas and meeting spaces.
Does it run Android apps?
Yes. The display runs Android 8.0 with 3 GB RAM and 32 GB storage, and the manufacturer describes it as designed for running Android apps. Check each app's own system requirements with the software vendor before deployment, since those are set outside the display specification.
Can several units be tiled into a video wall?
Yes. The manufacturer lists a tiled matrix of up to 10 x 15 displays. RS232C and RJ45 provide network control, and an IR sensor cable is included for remote control of the display.
What mount does the 86BDL4550D/00 need?
It uses a 600 x 400 mm VESA pattern with M8 fixings, as listed by the manufacturer. Procure.ae can advise on a compatible wall mount and arrange delivery and installation across the UAE, so the mount can be chosen before installation day.
Is the refresh rate 120 Hz?
Yes. The manufacturer rates the optimum resolution at 3840 x 2160 at 120 Hz. Typical contrast is 1,200:1, brightness is 500 nits and response time is 8 ms, as listed in the manufacturer's specifications for this model.
Can I buy the 86BDL4550D/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
