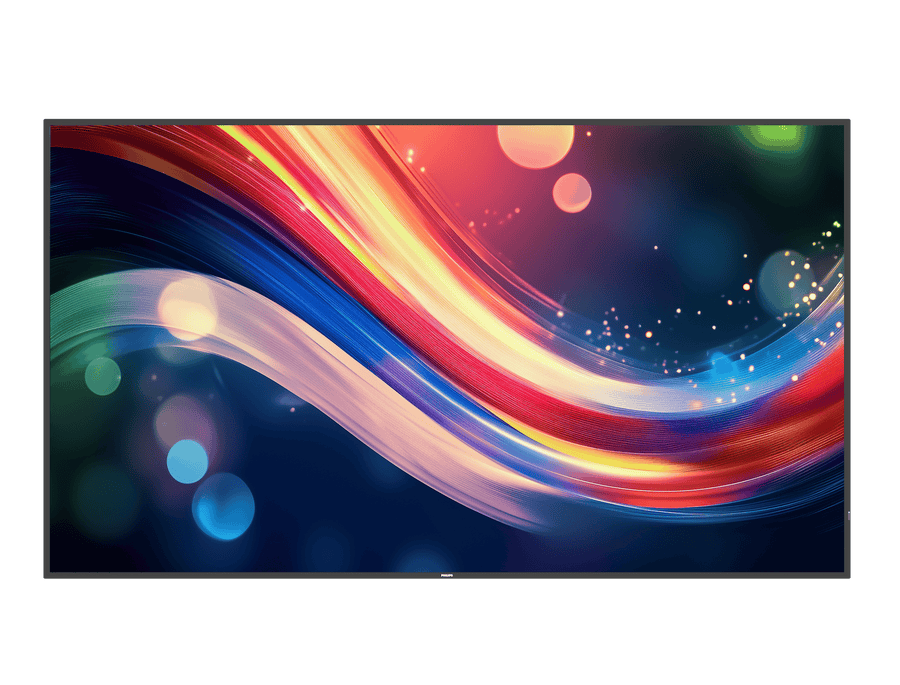

Philips 86-inch Q-Line 4050 4K UHD Digital Signage Display – 86BDL4050Q/00
The Philips 86BDL4050Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 4000 Series, running Android 10 for 24/7 use. It offers 3840 x 2160 resolution, 500 nits brightness and Wave-ready remote management, with a tiled matrix of up to 3 x 3. Procure.ae supplies it across the UAE, with delivery and installation.
The 86BDL4050Q/00 uses a 3840 x 2160 ADS panel rated at 500 nits brightness, with 1,200:1 typical contrast, 500,000:1 dynamic contrast and an 8 ms typical response time. Its 178-degree viewing angles suit wide lobby and showroom walls. Android 10 runs on a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage. Two 10 W RMS speakers and a 3.5 mm audio output are built in.
Connect sources through two HDMI 2.0 inputs, a DVI-I input, and USB 2.0 and USB 3.0 ports, and use the OPS slot for an OPS module. RJ45, RS232C and IR in and out allow network control, and keyboard control is hidden and lockable. The display is rated for landscape or portrait placement at 24/7 operation, with Smart Power energy saving. Tiling goes up to 3 x 3, and the 600 x 400 mm VESA pattern fits standard wall mounts.
Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD ADS panel
- Bright, wide viewing
- Contrast performance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD ADS panel
3840 x 2160 resolution on an 85.6-inch 16:9 screen.
02
Bright, wide viewing
500 nits brightness and 178-degree viewing angles.
03
Contrast performance
1,200:1 typical contrast and 500,000:1 dynamic contrast.
04
Android 10 platform
Android 10 on a quad-core Cortex-A55 processor.
05
Wave-ready management
Described by the manufacturer as ready for remote management.
06
OPS and micro SD
An OPS slot and a micro SD slot for expansion.
07
Tiled matrix
A tiled matrix of up to 3 x 3 for multi-screen layouts.
08
Smart Power energy saving
Smart Power function listed for energy saving.
Specifications
29 specificationsGeneral
Key FeaturesAndroid 10, Wave-ready remote management, OPS slot, micro SD slot, tiling up to 3 x 3, Smart Insert installation, Smart Power, RJ45 and RS232C control
Model86BDL4050Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cable, RS232 daisy-chain cable, AC power cord, USB cover, quick start guide
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsARM Mali G52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB
Storage16 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2, DVI-I In × 1, USB 2.0 × 2, USB 3.0 × 1, RJ45, RS232C, IR in/out, 3.5 mm audio in/out, micro SD
Power
Power Consumption85 W (EEI Lot 5)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.06 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Philips 86-inch Q-Line 4050 4K UHD Digital Signage Display – 86BDL4050Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 86BDL4050Q/00 a 4K display?
Yes. It has a 3840 x 2160 ADS panel on an 85.6-inch 16:9 screen. Brightness is 500 nits, typical contrast is 1,200:1 and response time is 8 ms typical, with 60 Hz as the optimum refresh rate.
Does the 86BDL4050Q/00 run Android apps?
Yes. It runs Android 10 on a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage. The manufacturer describes it as Wave-ready for remote management, so it can be managed as part of a networked display setup.
Can I add storage or an OPS module?
Yes. The display has an OPS slot and a micro SD slot. Internal storage is 16 GB, the micro SD slot can add removable storage, and the OPS slot accepts an OPS module.
Can the 86BDL4050Q/00 be controlled remotely?
Yes. It has RJ45, RS232C and IR in and out for control, with hidden, lockable keyboard control. A remote control, RS232 cable and RS232 daisy-chain cable are included in the box.
How is the 86BDL4050Q/00 mounted?
It uses a 600 x 400 mm VESA pattern with M8 fixings, and the listed weight is 49.06 kg. Use a wall bracket rated for that load and have a qualified installer fit it. Procure.ae can arrange installation across the UAE.
