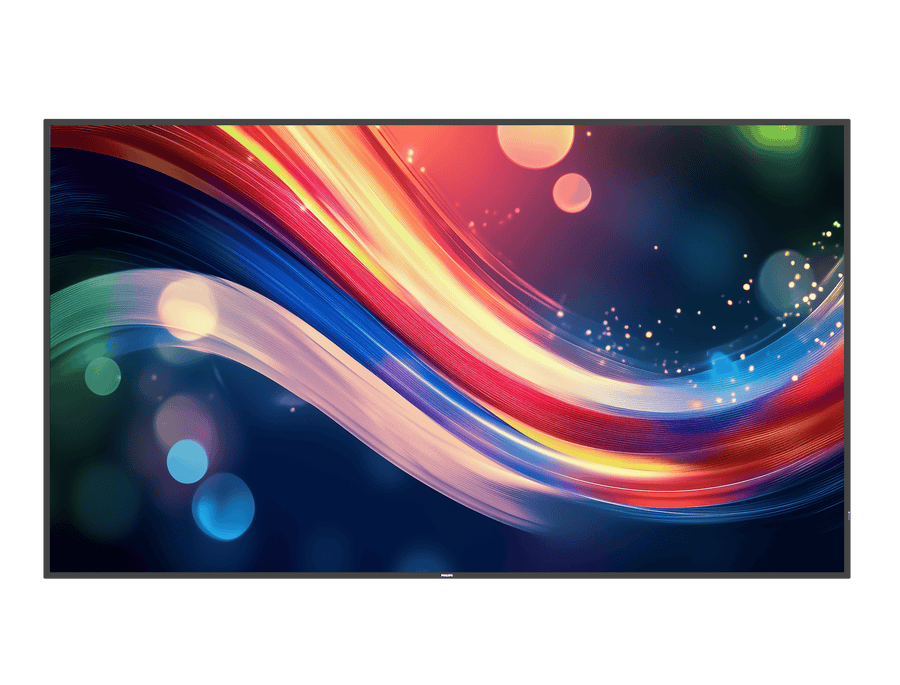

The Philips 86BDL4050Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 4000 Series, running Android 10 for 24/7 use. It offers 3840 x 2160 resolution, 500 nits brightness and Wave-ready remote management, with a tiled matrix of up to 3 x 3. Procure.ae supplies it across the UAE, with delivery and installation.
The 86BDL4050Q/00 uses a 3840 x 2160 ADS panel rated at 500 nits brightness, with 1,200:1 typical contrast, 500,000:1 dynamic contrast and an 8 ms typical response time. Its 178-degree viewing angles suit wide lobby and showroom walls. Android 10 runs on a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage. Two 10 W RMS speakers and a 3.5 mm audio output are built in.
Connect sources through two HDMI 2.0 inputs, a DVI-I input, and USB 2.0 and USB 3.0 ports, and use the OPS slot for an OPS module. RJ45, RS232C and IR in and out allow network control, and keyboard control is hidden and lockable. The display is rated for landscape or portrait placement at 24/7 operation, with Smart Power energy saving. Tiling goes up to 3 x 3, and the 600 x 400 mm VESA pattern fits standard wall mounts.
| Key Features | Android 10, Wave-ready remote management, OPS slot, micro SD slot, tiling up to 3 x 3, Smart Insert installation, Smart Power, RJ45 and RS232C control |
| Model | 86BDL4050Q/00 |
| Type | Digital Signage Display |
| What's in the Box | Remote control with AAA batteries, RS232 cable, RS232 daisy-chain cable, AC power cord, USB cover, quick start guide |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Color Depth | 1.07 billion colours |
| Contrast Ratio | 1,200:1 |
| Panel Technology | ADS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 85.6 inch |
| Viewing Angle | 178° horizontal, 178° vertical |
| Graphics | ARM Mali G52 MC1 |
| Operating System | Android 10 |
| Processor | Quad-core Cortex-A55 |
| RAM | 3 GB |
| Storage | 16 GB |
| Speaker Output | 2 x 10 W RMS |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI 2.0 In × 2, DVI-I In × 1, USB 2.0 × 2, USB 3.0 × 1, RJ45, RS232C, IR in/out, 3.5 mm audio in/out, micro SD |
| Power Consumption | 85 W (EEI Lot 5) |
| Standby Power | <0.5 W |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 49.06 kg |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
