PeerlessMeeting Room SolutionsSKU ACC309

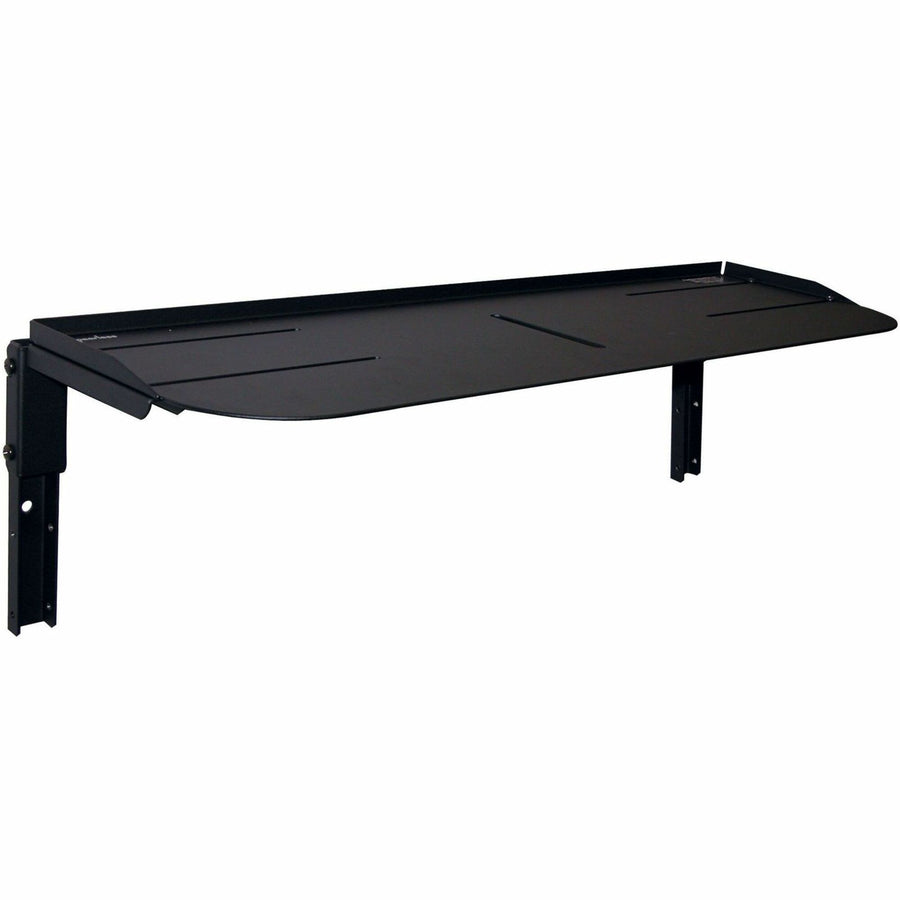

Peerless Video Conferencing Shelf Wall Mount – ACC309
The Peerless ACC309 is a wall-mounted video conferencing shelf that holds conference equipment above or below a flat panel display. It is rated for 11.34 kg, has a 4-inch (102 mm) adjustable length and mounts to 16-inch or 24-inch wood studs. Procure.ae supplies the ACC309 in the UAE for meeting room installations.
The shelf mounts directly to the wall, with the option to install it above or below a flat panel display. It adjusts in length by 4 inches (102 mm) and measures 24.6 inches wide by 7.8 inches deep (625 mm by 198 mm). Conference equipment can sit on the shelf or be fastened through the slot. It has an 11.34 kg maximum load, with a black fused-epoxy and powder-coated finish.
Use it in meeting rooms, boardrooms and classrooms where a video conferencing codec, camera or audio device needs a wall-mounted shelf. It mounts to 16-inch or 24-inch wood studs, and mounting hardware is included. Assembly is required. The shelf is RoHS and TAA compliant. Procure.ae delivers and installs across the UAE and MEA, with free training and support.
Type
Video Conferencing Shelf Wall Mount
Weight
2.42 kg
- Adjustable length
- Load rating
- Wood stud mounting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Adjustable length
Adjusts by 102 mm (4 inch) for placement.
02
Load rating
Holds up to 11.34 kg of video conferencing equipment.
03
Wood stud mounting
Fixes to 16-inch or 24-inch wood studs.
04
Equipment slot
Equipment can sit on the shelf or be fastened through the slot.
05
Above or below mounting
Installs above or below a flat panel display.
06
Powder-coated finish
Fused epoxy and powder-coated black finish.
Specifications
13 specificationsGeneral
ApplicationVideo conferencing
Key FeaturesAdjustable length, Equipment slot for securing devices, Mounts above or below flat panel, Fits 16-inch or 24-inch wood studs, 11.34 kg load rating, Powder-coated finish
ModelACC309
TypeVideo Conferencing Shelf Wall Mount
What's in the BoxShelf wall mount, mounting hardware
Physical
Adjustability102 mm adjustable length
ColorBlack
Dimensions625 x 198 mm (W x D)
FinishFused epoxy, powder coated
Load Capacity11.34 kg
MountingWood studs (16-inch or 24-inch)
Weight2.42 kg
Compliance
CertificationsRoHS, TAA compliant
Downloads
Manufacturer documents for the Peerless Video Conferencing Shelf Wall Mount – ACC309 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the ACC309 be mounted on drywall?
The shelf is listed for 16-inch or 24-inch wood studs, and the manufacturer's specifications do not state a drywall fixing method. Confirm the wall construction before installation, and ask Procure.ae to advise on suitable fixings for your site before ordering.
What load can the ACC309 carry?
The maximum load capacity is 11.34 kg (25 lb). Add up the weight of any codec, camera or audio device you plan to place on the shelf, and keep the total within that limit.
Can the shelf length be adjusted?
Yes. The shelf has a 4-inch (102 mm) adjustable length and measures 24.6 by 7.8 inches (625 by 198 mm). Equipment can sit on the shelf or be fastened through the slot.
Can I buy the ACC309 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
