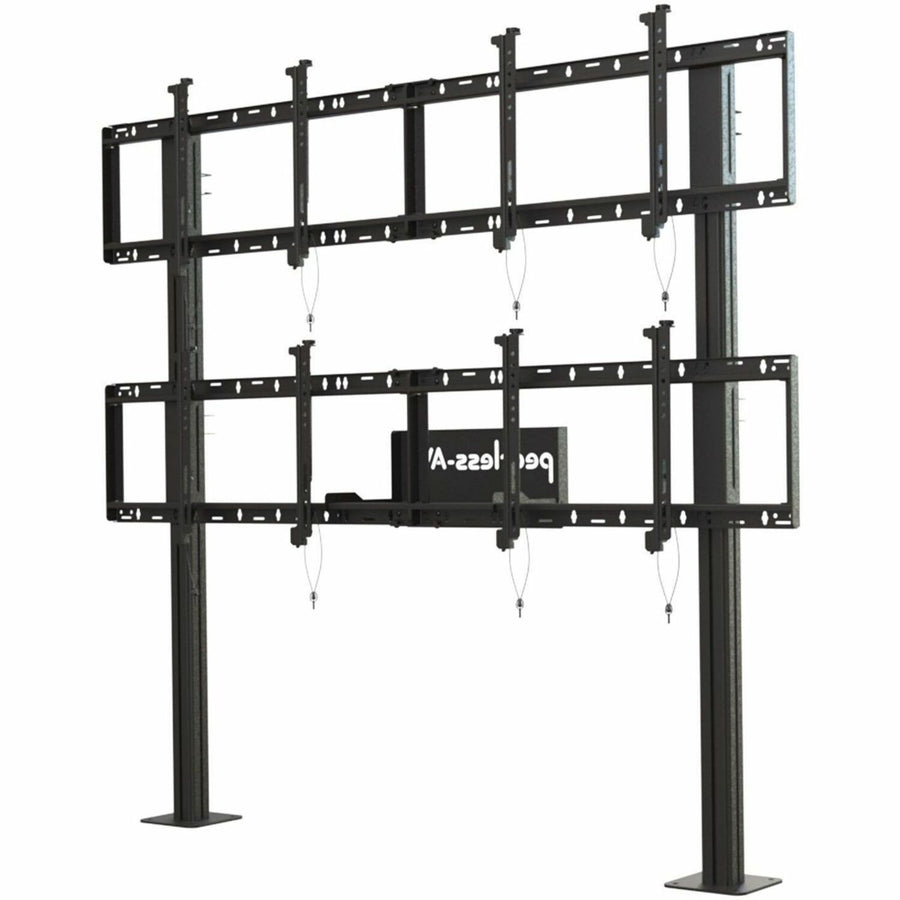

Peerless SmartMount Modular Video Wall Pedestal Mount 2x2 – DS-S560-2X2

The Peerless DS-S560-2X2 is a modular video wall pedestal mount for four displays sized 46 to 60 inches in a 2x2 layout. It supports VESA patterns from 200 x 200 to 600 x 400 mm, carries up to 226.80 kg, and bolts directly to concrete. Procure.ae supplies it across the UAE.

The mount holds four displays in a 2x2 arrangement, with a rated load capacity of 226.80 kg and a weight of about 57.61 kg. Tool-less micro-adjustment at eight points aligns the displays, and quick-connect adaptors latch onto the mounting rails automatically. Each display attaches through VESA patterns from 200 x 200 mm up to 600 x 400 mm. The aluminium frame reduces overall weight and shipping costs, while a rear media storage shelf and cover keep components out of sight and rear brackets organise the cabling.

The mount suits retail, public transportation and other high-traffic locations. It bolts directly to concrete, so no additional wall or ceiling connections are needed. The package includes the stand, display adaptors and hardware, and assembly is required. Compared with the DS-S560-1X3, this model holds four displays rather than three, with a higher rated load of 226.80 kg versus 170.10 kg.
