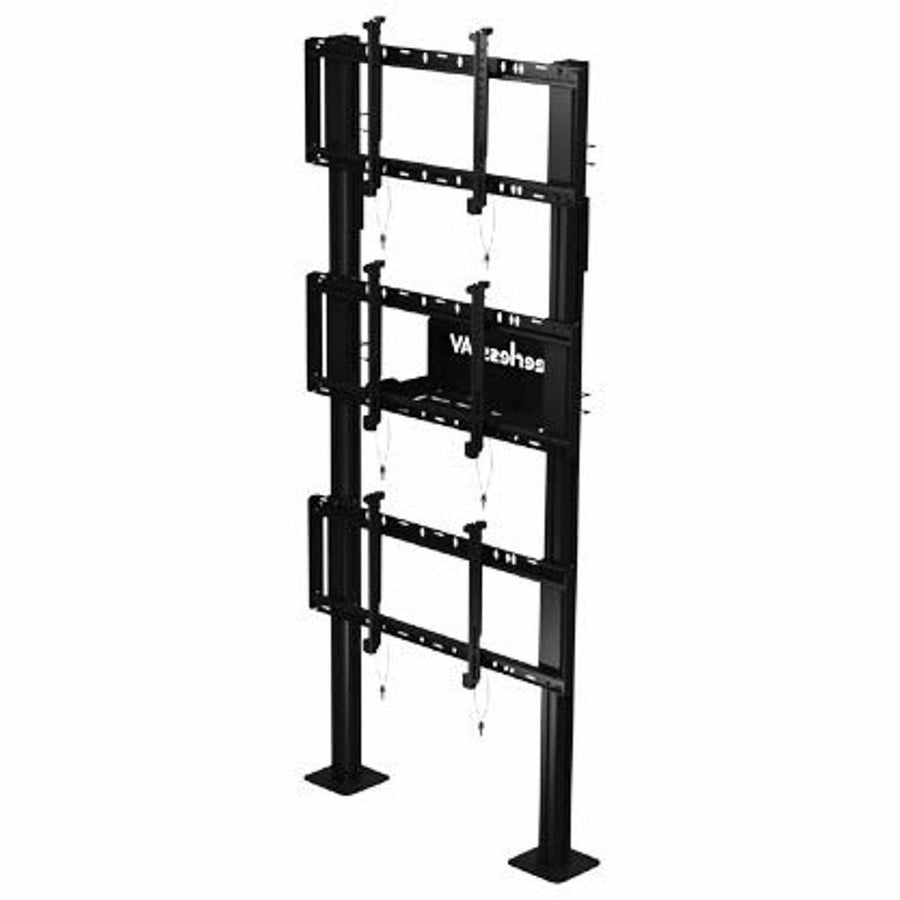

Peerless SmartMount Modular Video Wall Pedestal Mount 1x3 – DS-S560-1X3

The Peerless DS-S560-1X3 is a modular video wall pedestal mount for three displays sized 46 to 60 inches. It supports VESA patterns from 200 x 200 to 600 x 400 mm, carries up to 170.10 kg, and bolts directly to concrete. Procure.ae supplies it across the UAE for retail and high-traffic video walls.

The mount holds three displays in a 1x3 arrangement, with a rated load capacity of 170.10 kg and a weight of about 102.06 kg. Tool-less micro-adjustment aligns the screens without extra hardware, and adaptors with a quick-connect latch engage the mounting rails automatically. Each display attaches through VESA patterns from 200 x 200 mm up to 600 x 400 mm. The black powder-coated aluminium frame is designed to reduce overall weight and shipping costs, while rear adjustable brackets centralise cabling and built-in media component storage keeps players out of sight.

The mount suits retail, public transportation and other high-traffic locations. It bolts directly to concrete, so it needs no additional wall or ceiling supports. The package includes the stand, display adaptors and hardware, and assembly is required. The DS-S560-2X2 in the same series supports four displays, whereas this 1x3 model supports three.
