PeerlessMeeting Room SolutionsSKU DST940
Peerless 37-46-inch Dual Display Ceiling Mount – DST940

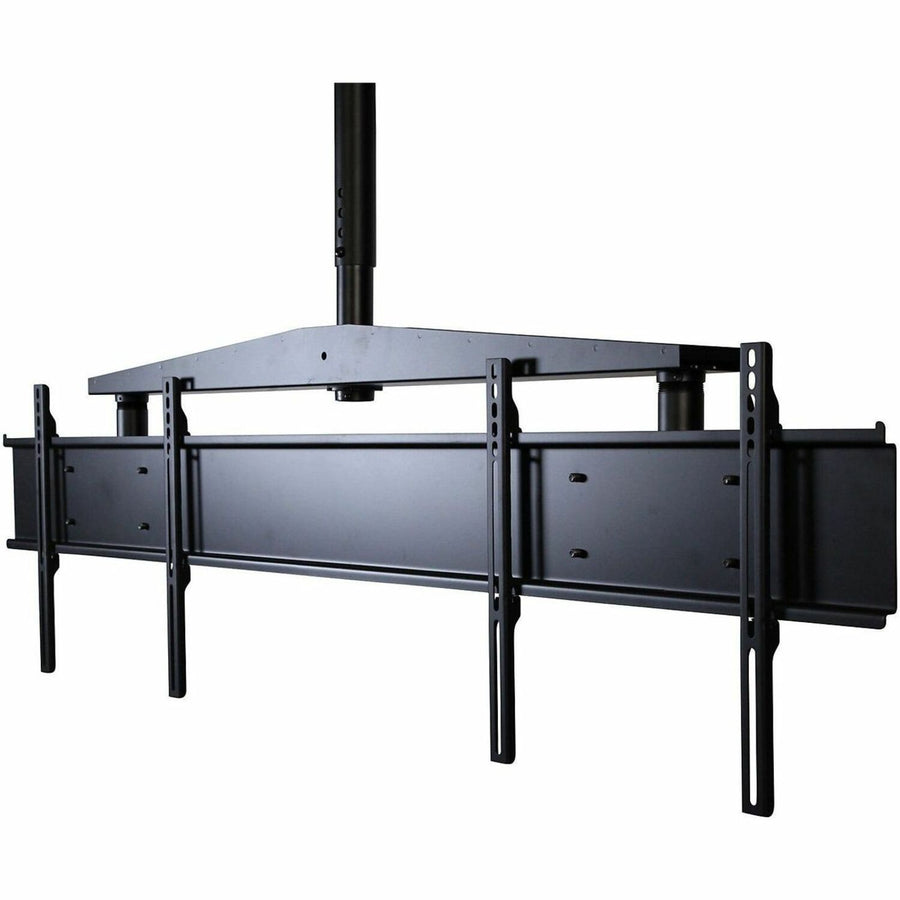

The Peerless DST940 is a dual display ceiling mount for two 37-inch to 46-inch flat panel displays. It sets both screens on one plane with a shared adaptor plate, supports 34.02 kg to 68.04 kg, and offers 2 to 20 degrees of tilt. Procure.ae supplies the DST940 as an authorised reseller across the UAE.
The DST940 uses one long adaptor plate that spans both displays, so the two screens sit on the same plane for close alignment. Easy-glide brackets attach each display to the plate, and the displays slide horizontally to meet together for a seamless look. Each display tilts up to 20 degrees to reach its ideal viewing angle. The mount accepts a 600 x 400 mm mounting pattern and has a minimum supported pattern of 100 x 100 mm. Assembly is required.
Type
Dual Display Ceiling Mount
Weight
23.59 kg
- Shared adaptor plate
- Horizontal adjustment
- Universal display adaptors
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Shared adaptor plate
A single plate spans both displays to keep their faces on the same plane.
02
Horizontal adjustment
Displays slide together for a seamless appearance.
03
Universal display adaptors
Adaptors hook quickly onto the adaptor plate for faster installation.
04
Tilt adjustment
Each display tilts from 2 to 20 degrees.
05
Load capacity
Supports 34.02 kg to 68.04 kg.
06
Black powder-coated finish
Powder-coated black finish for ceiling installations.
Specifications
16 specificationsGeneral
ApplicationAirports, restaurant menu boards
Key FeaturesShared adaptor plate, glide bracket attachment, horizontal adjustment, 2-20° tilt, universal display adaptors, assembly required
ModelDST940
TypeDual Display Ceiling Mount
What's in the BoxDual display ceiling mount system, 2 x PLCM-2 mounts, 2 x EXT006 poles, adaptor plate, 2 x cross supports, 2 x adaptor bracket sets, assembly hardware
Display
Supported Screen Sizes37-46 inch (93.98-116.84 cm)
Physical
AdjustabilityHorizontal sliding and tilt
ColorBlack
FinishPowder coated
Form FactorCeiling mountable
Load Capacity34.02-68.04 kg
MountingCeiling
Tilt2-20°
VESA Mount600 x 400 mm
Weight23.59 kg
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Peerless 37-46-inch Dual Display Ceiling Mount – DST940 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the Peerless DST940 support?
The DST940 supports two displays from 37 inches to 46 inches (93.98 to 116.84 cm). The universal adaptors accommodate displays within that size range, and the mount accepts a 600 x 400 mm mounting pattern.
Is the DST940 a ceiling mount, and does it need assembly?
Yes, the DST940 is a ceiling mount, and assembly is required. The kit includes two PLCM-2 mounts, two EXT006 poles, an adaptor plate, two cross supports, two adaptor bracket sets and assembly hardware. Procure.ae provides delivery and installation across the UAE.
What weight can the DST940 support?
The DST940 is rated for a load capacity of 34.02 kg to 68.04 kg, and the mount itself weighs about 23.59 kg. Confirm that your ceiling structure can carry the full assembly, including both displays, before installation.
Can I buy the Peerless DST940 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
